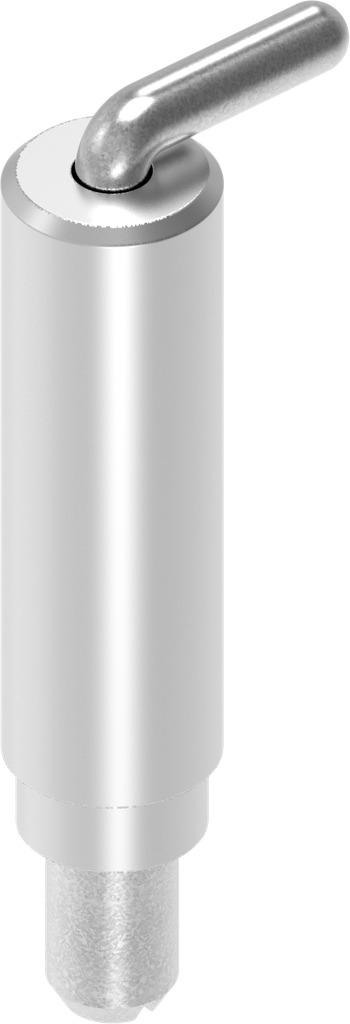

Pin hinge, Stainless steel AISI 304; 1117-U1-PF

https://www.emka.com/products/1117-u1-pf https://www.emka.com/web/image/product.template/64264/image_1920?unique=0705b63


    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right


    Internal Reference: 1117-U1-PF
    Product Type: Hinge
    Program: 1117
    Catalog sheet: 4C-120
    Material of the module : Stainless steel AISI 304
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Suitable for door thicknesses up to: 6 mm
    Cabinet type : Single cabinets,In-line cabinets with single door
    pin hinge: Yes
    Door position: concealed,prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
