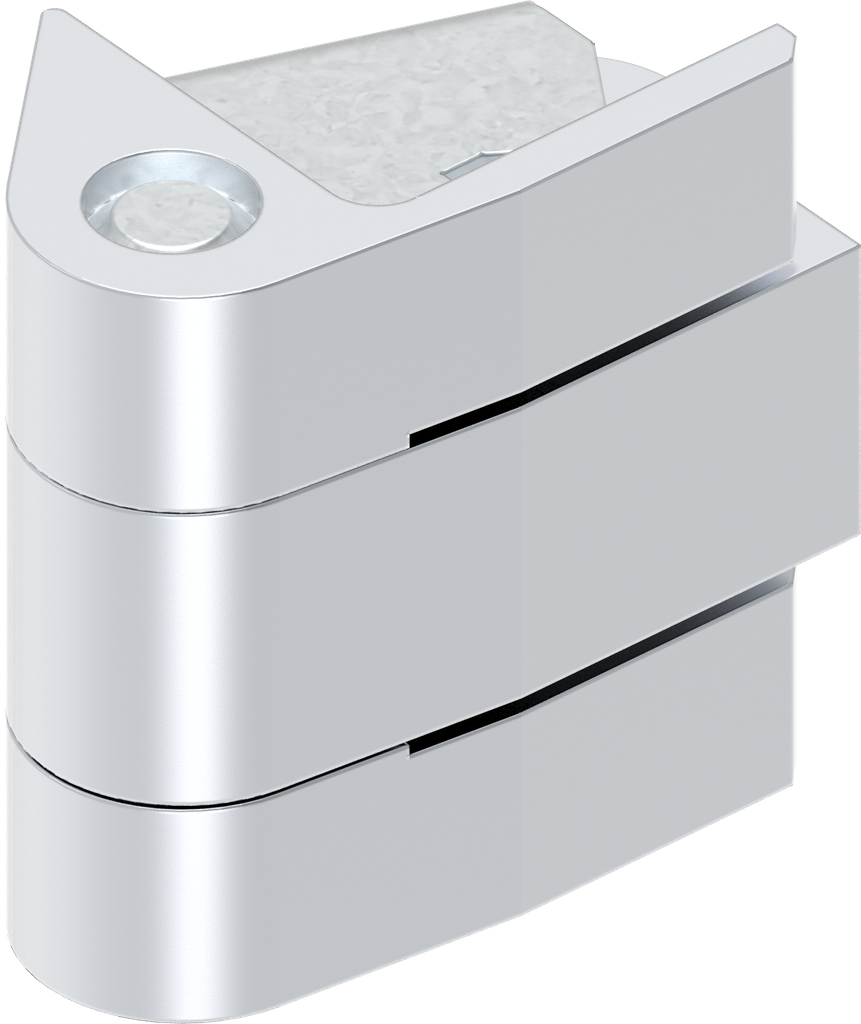

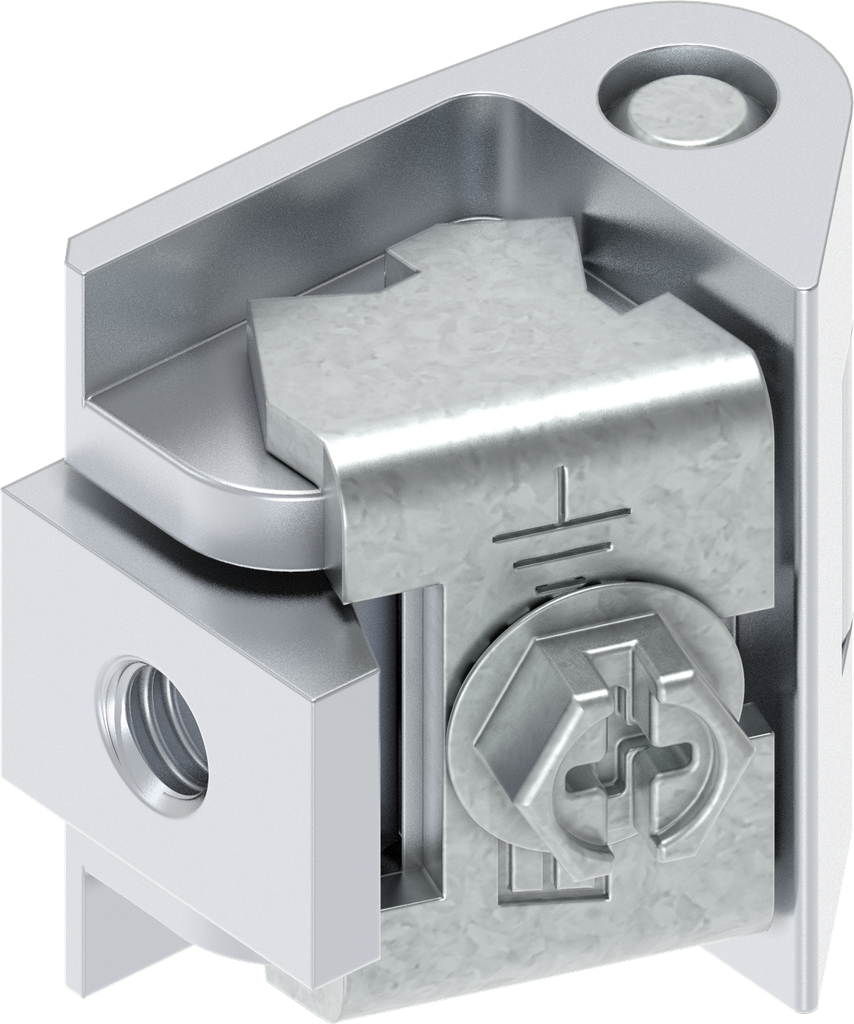

180° Hinge, Zinc die chrome-plated; 1110-U4-N

https://www.emka.com/products/1110-u4-n https://www.emka.com/web/image/product.template/64192/image_1920?unique=0705b63


    This combination does not exist.

    Single cabinets In-line cabinets with single door Grounding possible Left Right


    Internal Reference: 1110-U4-N
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-150
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimension A, Variable: 20 mm
    Article with property rights: Yes
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from inside
    Grounding possible: Yes
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: prominent
    Door Version : Left,Right
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products

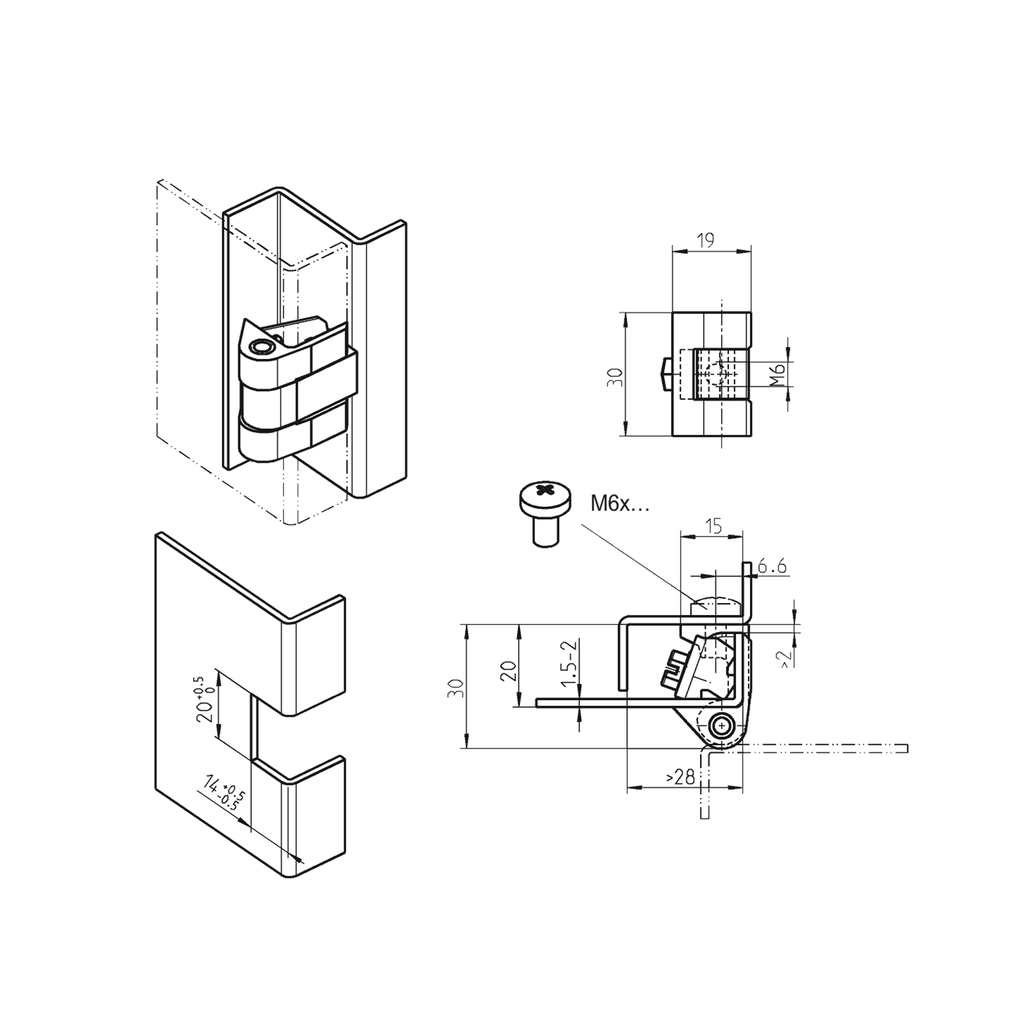

    Here you can find the product data sheets and CAD files of this product
