180° Hinge with stainless steel pin, Zinc die black powder-coated
180° Hinge with stainless steel pin, Zinc die black powder-coated
180° Hinge, Zinc die dust grey powder-coated
180° Hinge, Zinc die dust grey powder-coated

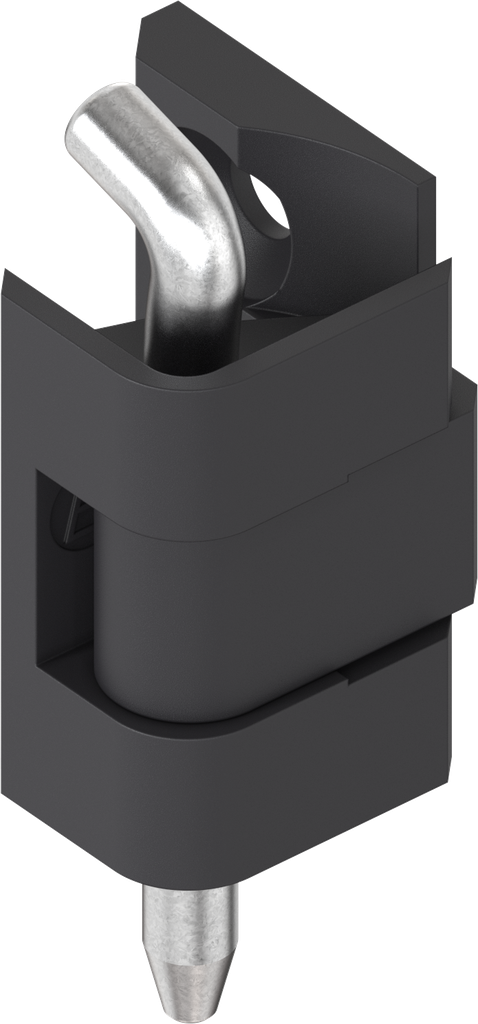

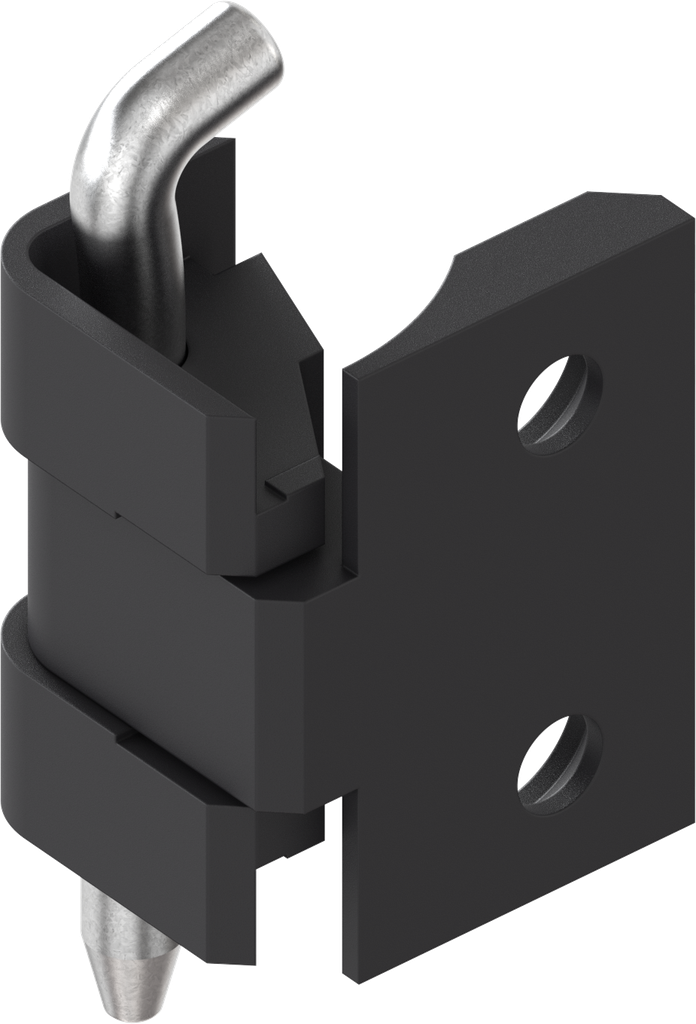

180° Hinge with steel splint, Zinc die black powder-coated; 1110-U21-ZC

https://www.emka.com/products/1110-u21-zc-180-hinge-with-steel-splint-zinc-die-black-powder-coated-218884 https://www.emka.com/web/image/product.template/218884/image_1920?unique=db03562

    This combination does not exist.

    Single cabinets Left Right
    No stock item, please ask for availability
    Internal Reference: 1110-U21-ZC
    Barcode: 1110-U00021-00000ZC
    Product Type: Hinge
    Program: 1110
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 25 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    Cannot be disassembled from the outside: Yes
    No Specifications
