180° Hinge with clip-in polyamide pin, Zinc die chrome-plated
180° Hinge with clip-in polyamide pin, Zinc die chrome-plated
180° Hinge, Zinc die black powder-coated
180° Hinge, Zinc die black powder-coated

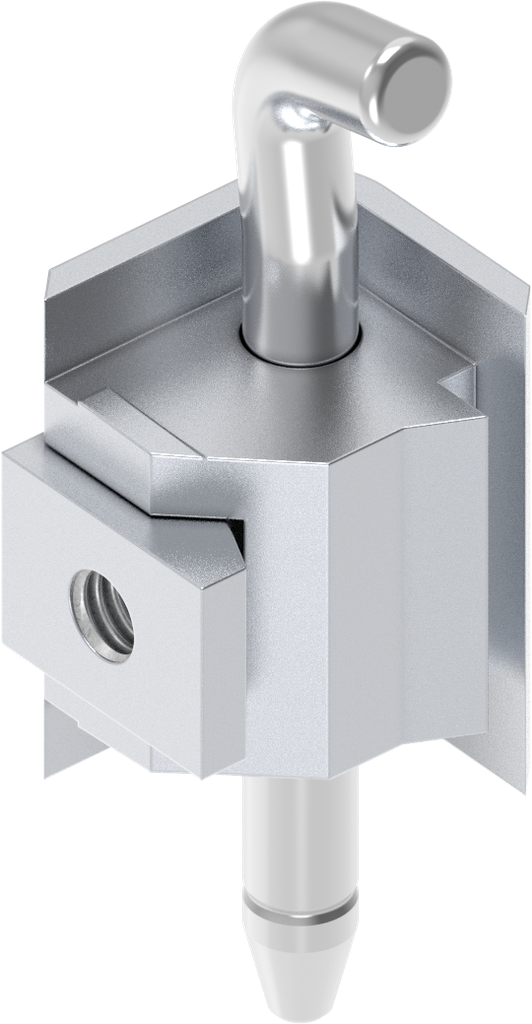

180° Hinge with steel splint, Zinc die chrome-plated; 1110-U2-ZC

https://www.emka.com/products/1110-u2-zc-180-hinge-with-steel-splint-zinc-die-chrome-plated-218855 https://www.emka.com/web/image/product.template/218855/image_1920?unique=5a0b4bb

    This combination does not exist.

    Single cabinets Left Right
    No stock item, please ask for availability
    Internal Reference: 1110-U2-ZC
    Barcode: 1110-U00002-00000ZC
    Product Type: Hinge
    Program: 1110
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimension A, Variable: 20 mm
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from inside, with female thread M6
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Cannot be disassembled from the outside: Yes
