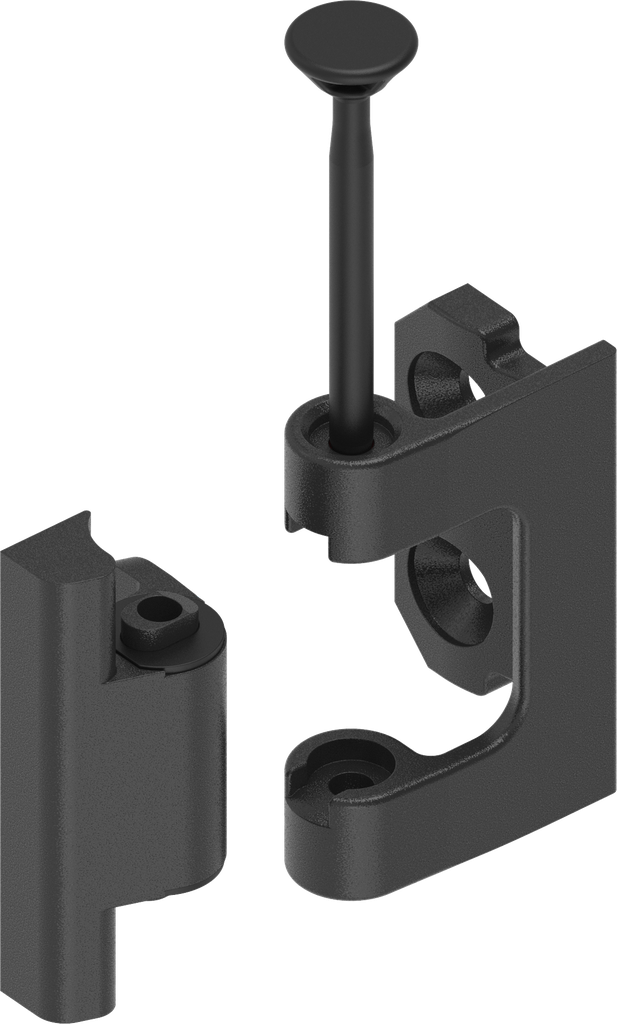

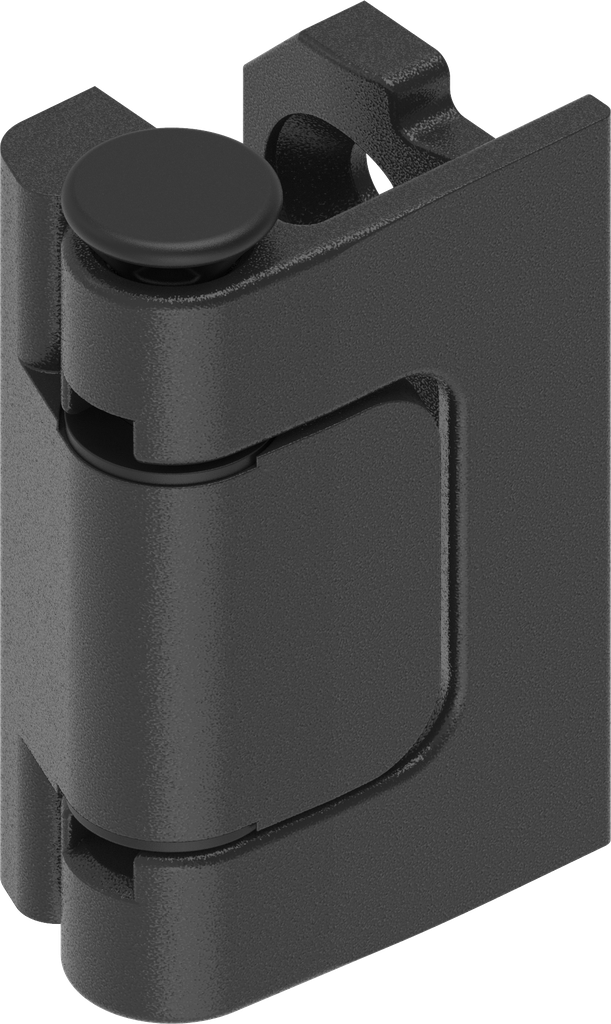

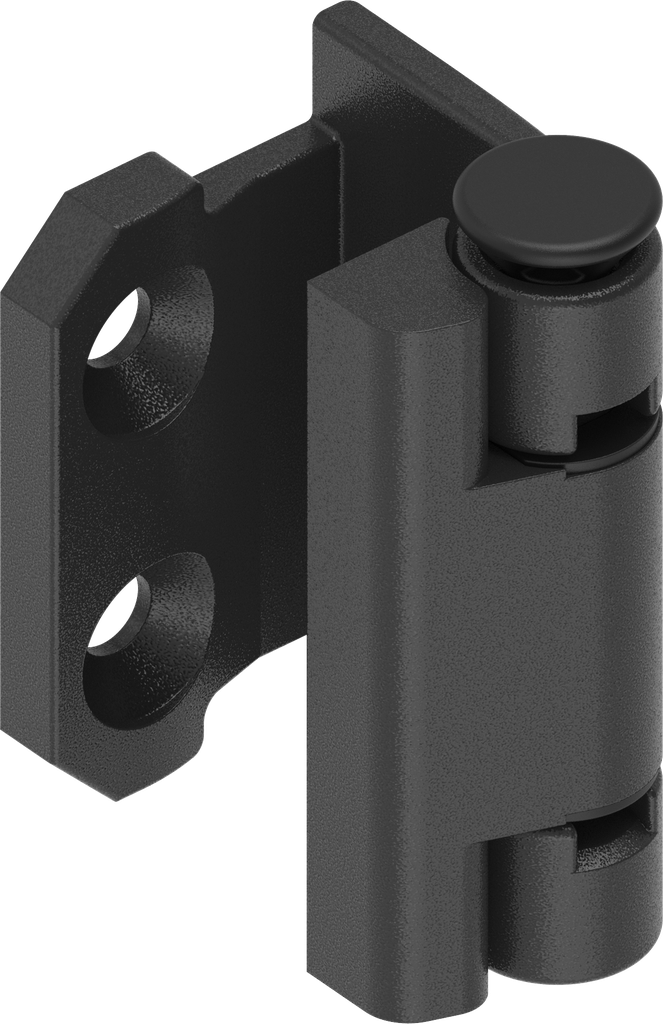

180° Hinge with captive pin, Zinc die black powder-coated; 1110-U142

https://www.emka.com/products/1110-u142 https://www.emka.com/web/image/product.template/64247/image_1920?unique=5e815a1


    This combination does not exist.

    In-line cabinets with single door Left Right


    Internal Reference: 1110-U142
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-217
    Material of the module : Zinc die
    Surface of the module: black powder-coated

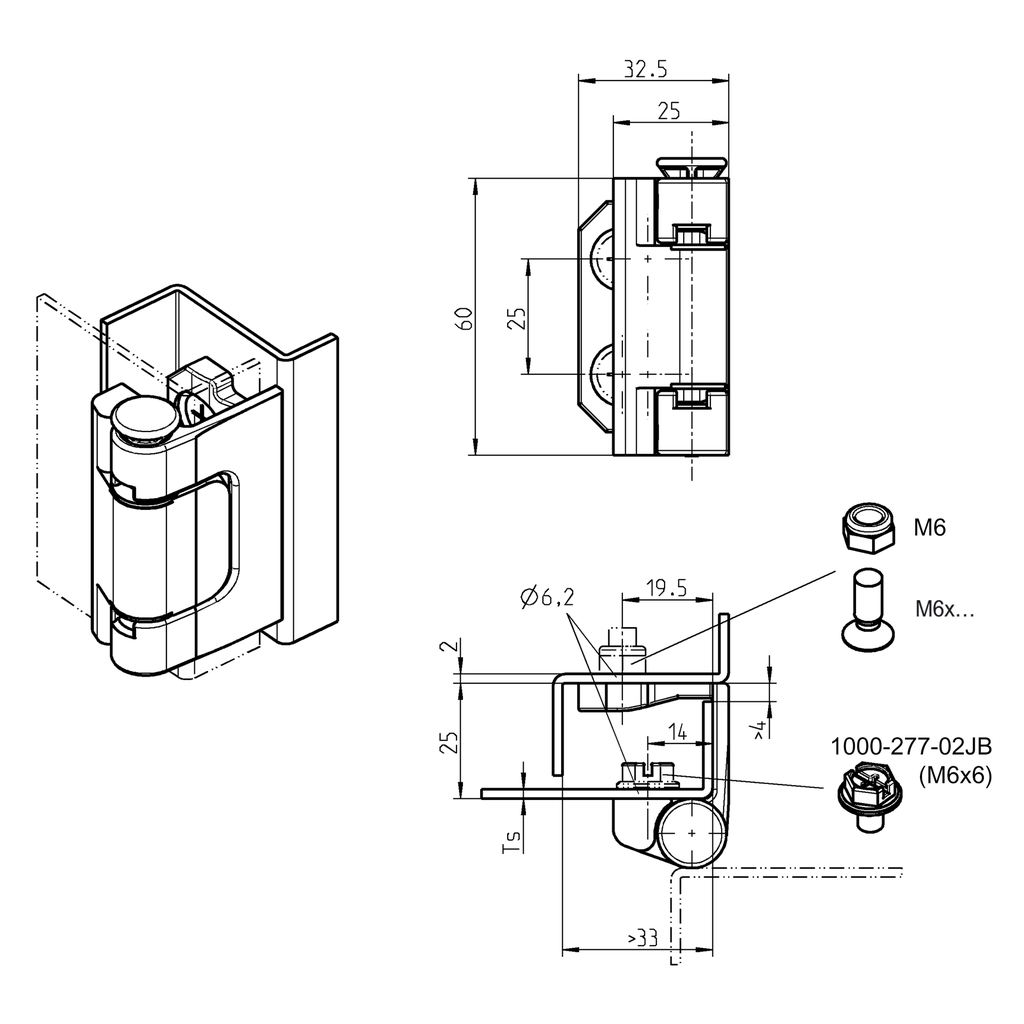

    Dimension A, Variable: 25 mm

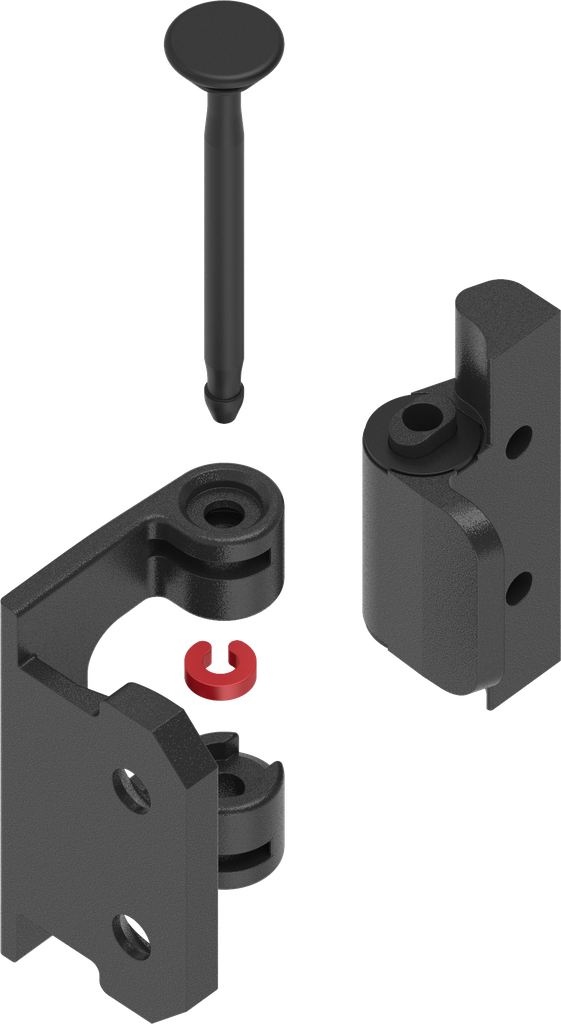

    Detachable: without tools, from 90° opening angle

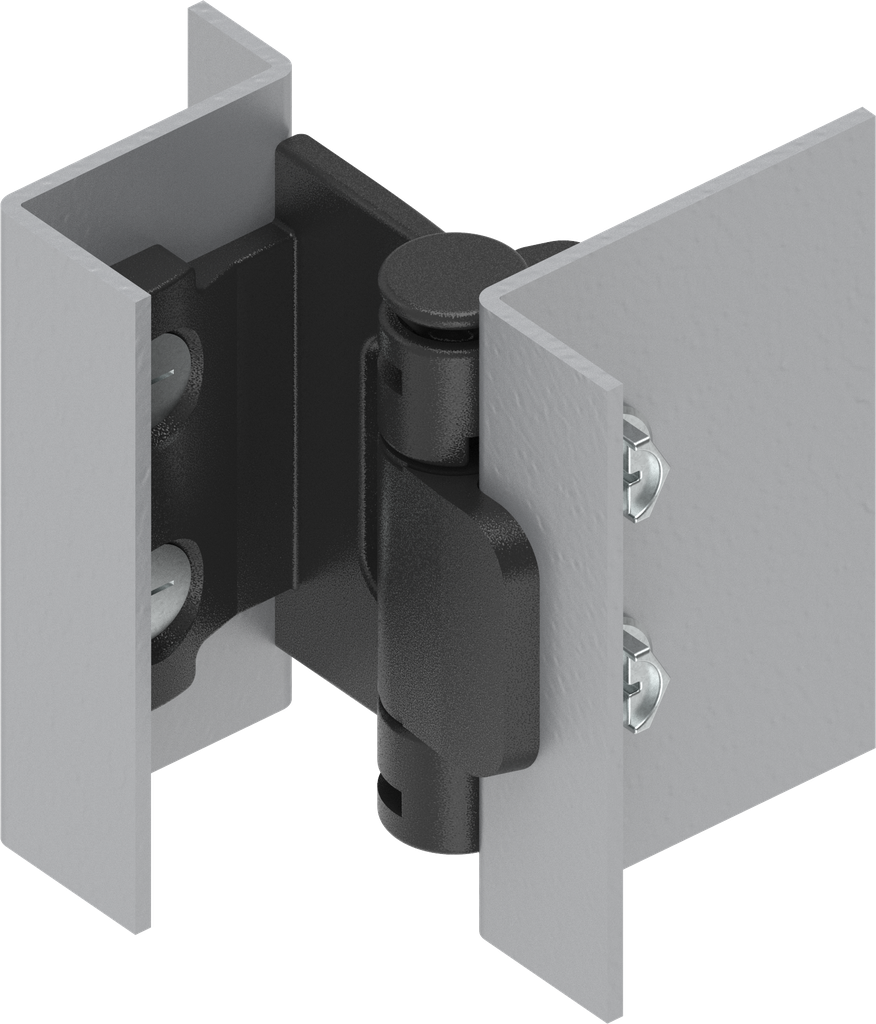

    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M6
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°

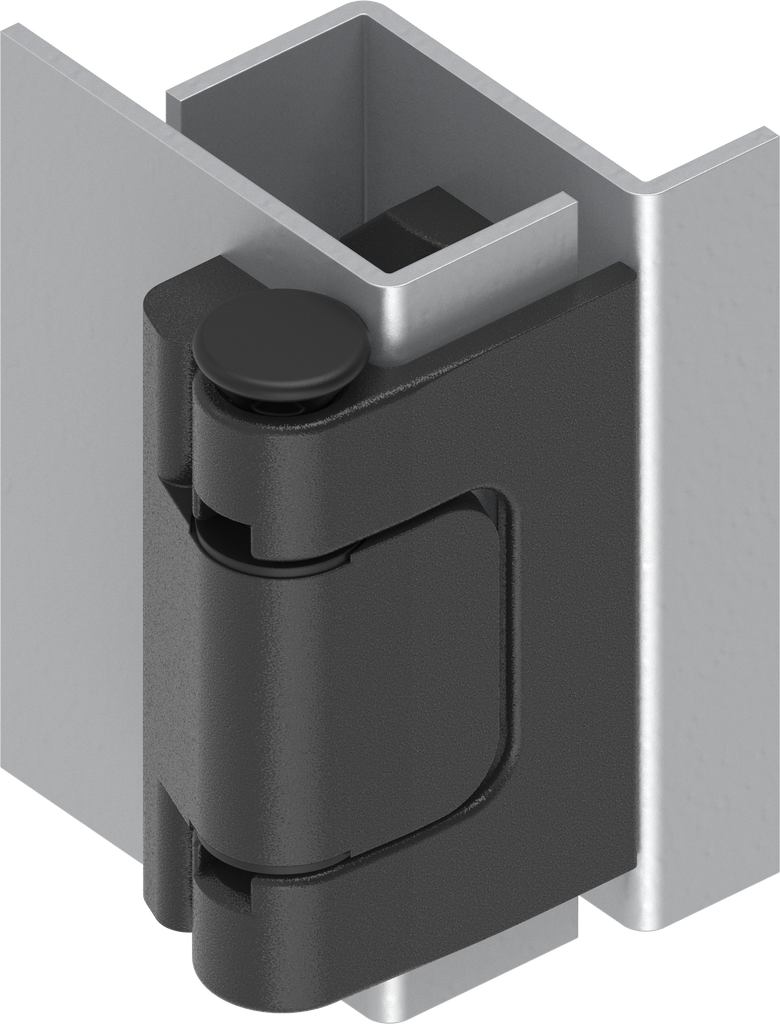

    Cabinet type : In-line cabinets with single door
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    View All Products
    2D nut
    Here you can find the product data sheets and CAD files of this product
