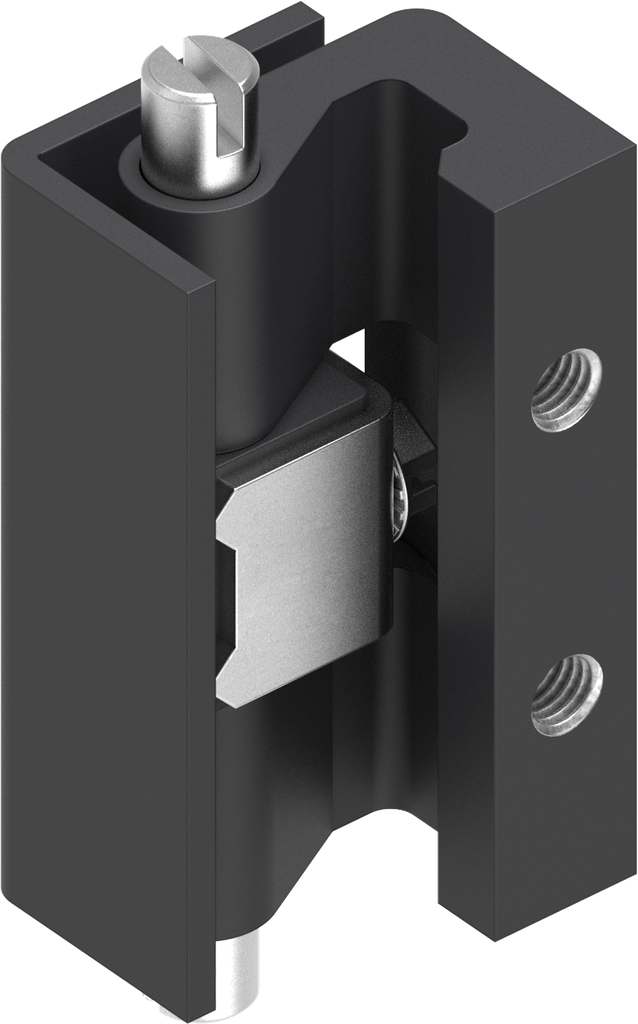

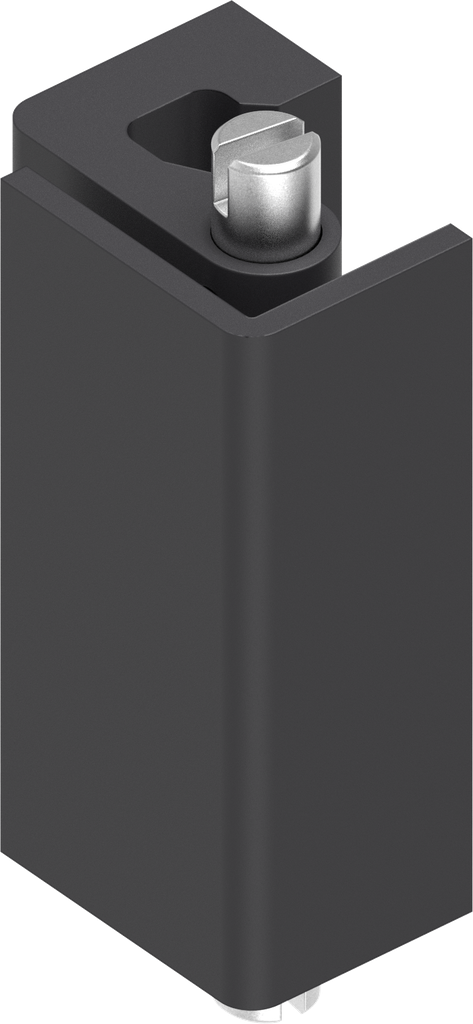

120° Hinge with quick fastening system, Zinc die black powder-coated; 1110-U111

https://www.emka.com/products/1110-u111 https://www.emka.com/web/image/product.template/64227/image_1920?unique=c343168

    This combination does not exist.

    Single cabinets Grounding possible Left Right
    Contact Us

    Product information:

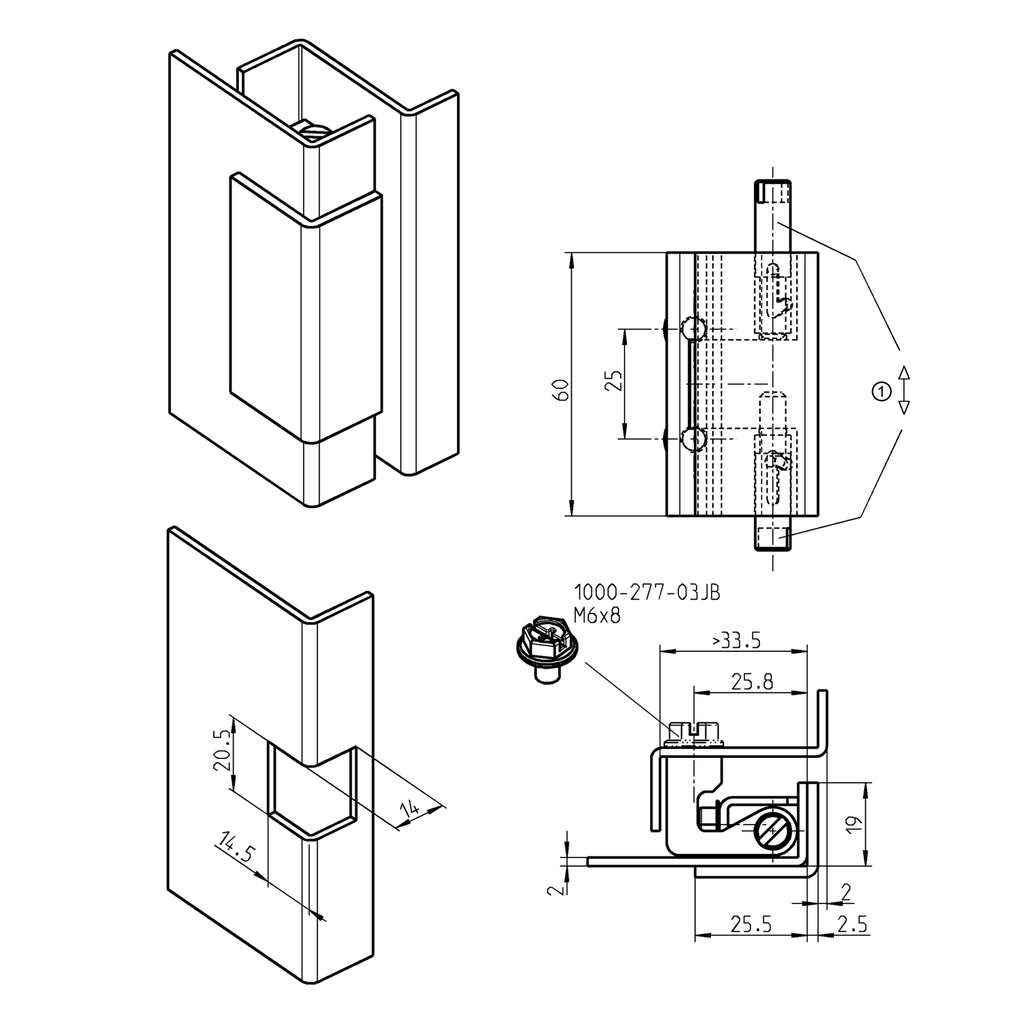

    ① = Push pin in against spring pressure and unlock by turning
    Internal Reference: 1110-U111
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-480
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 25 mm
    Detachable: with tools

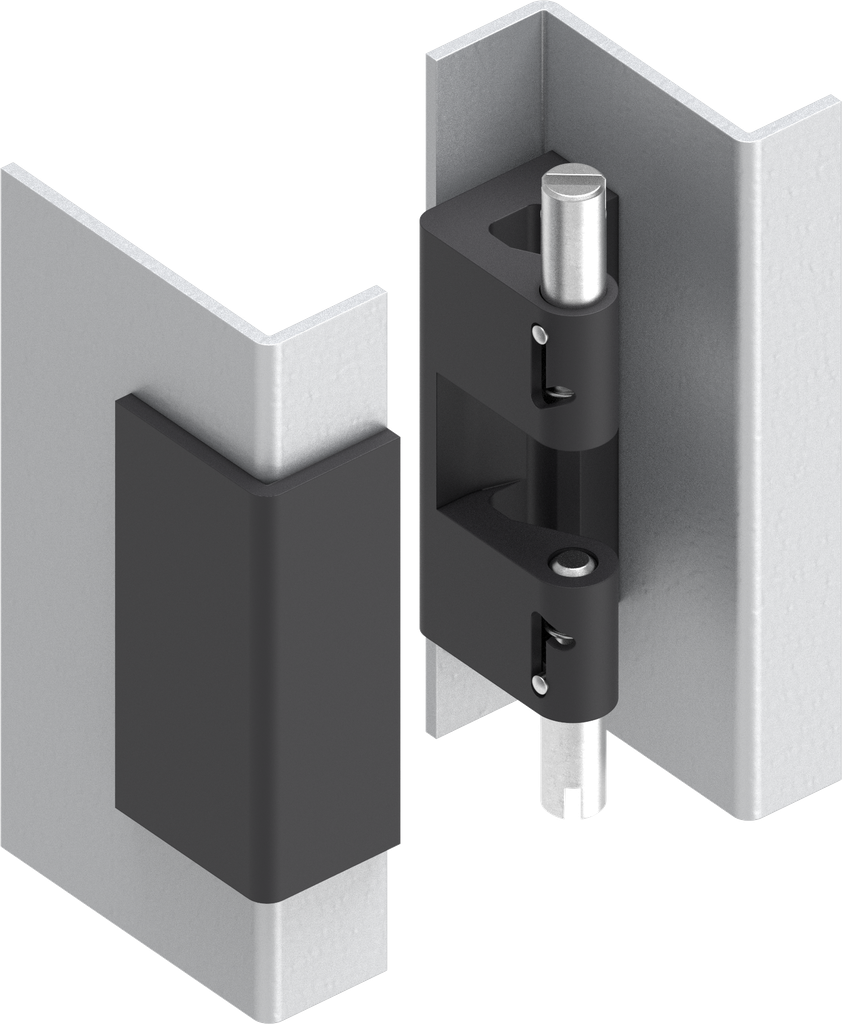

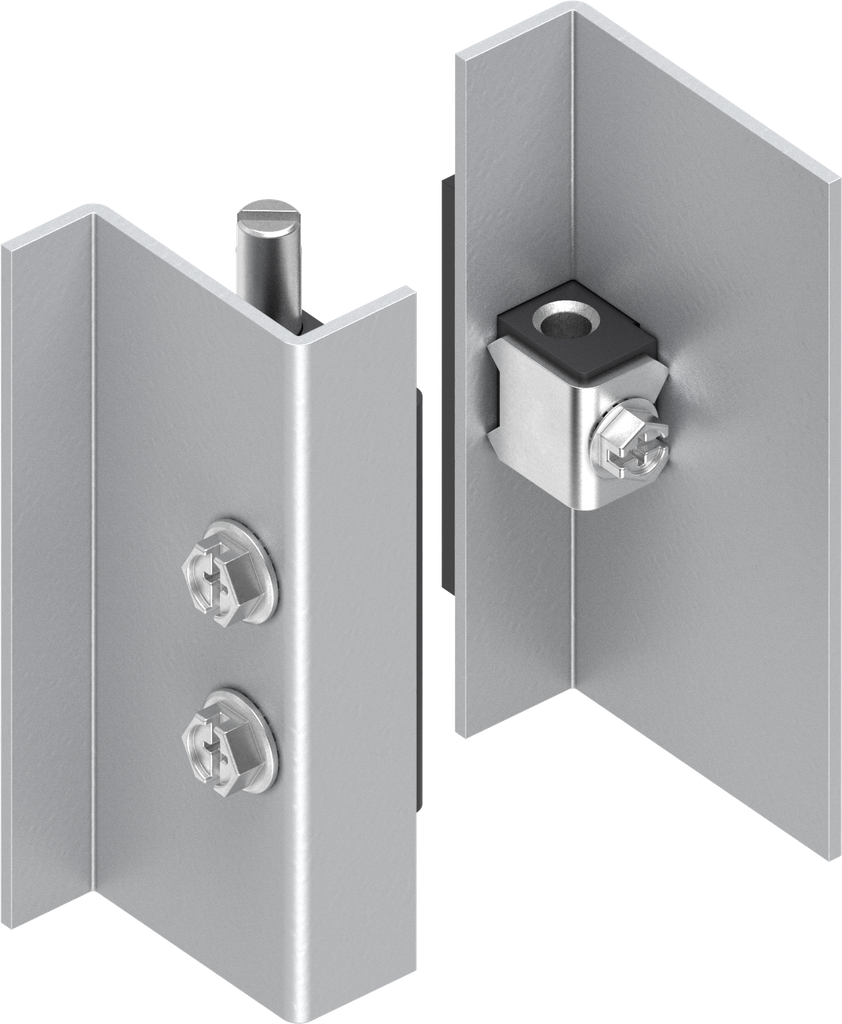

    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside, with female thread M6
    Grounding possible: Yes
    Hole pattern required in the door: Notch in the door
    Max Opening Angle: 120°
    Cabinet type : Single cabinets

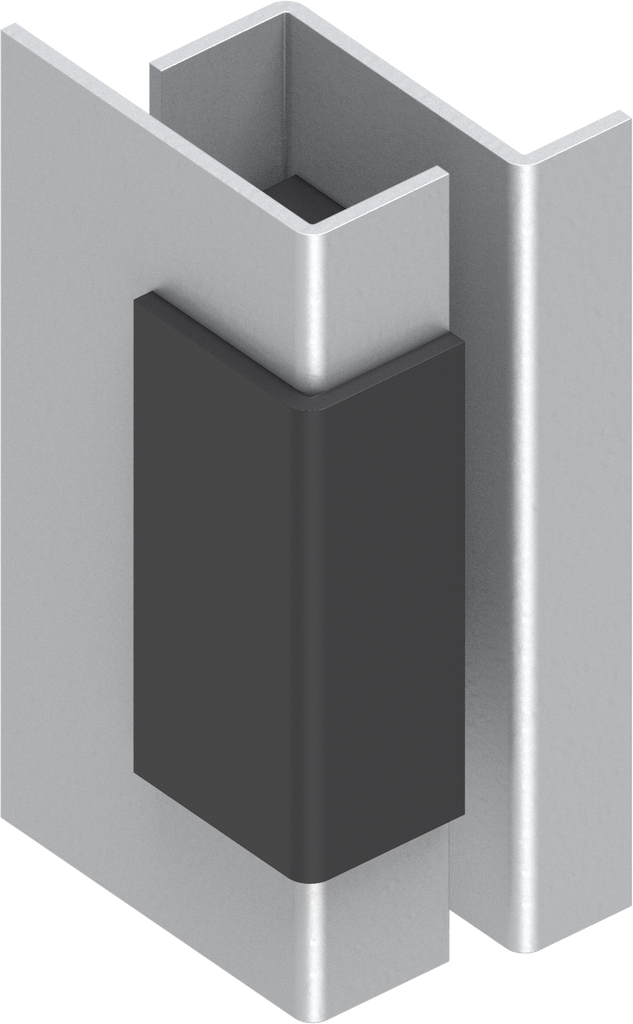

    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
