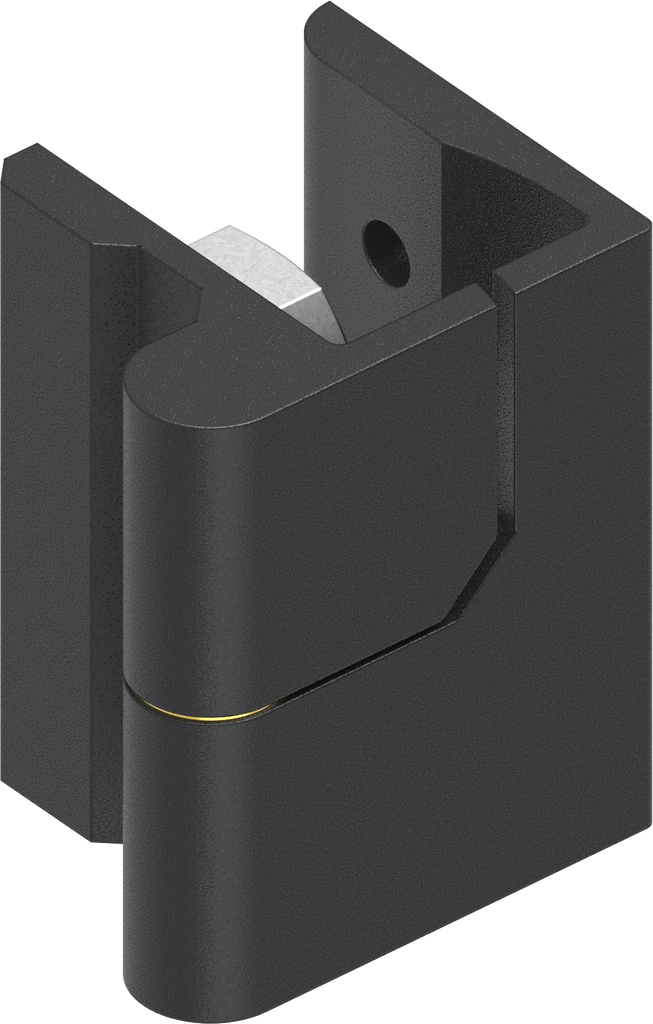

180° Hinge, right version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated

180° Hinge, right version, Zinc die black powder-coated; 1110-U105

https://www.emka.com/products/1110-u105 https://www.emka.com/web/image/product.template/64223/image_1920?unique=c343168

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Right
    Contact Us
    Internal Reference: 1110-U105
    Product Type: Hinge
    Program: 1110
    Catalog sheet: 4A-210
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 26 mm
    Execution: D+F
    Detachable: without tools, from 70° opening angle
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside, with female thread M6
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: prominent
    Door Version : Right
    Thickness: 2 mm
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products

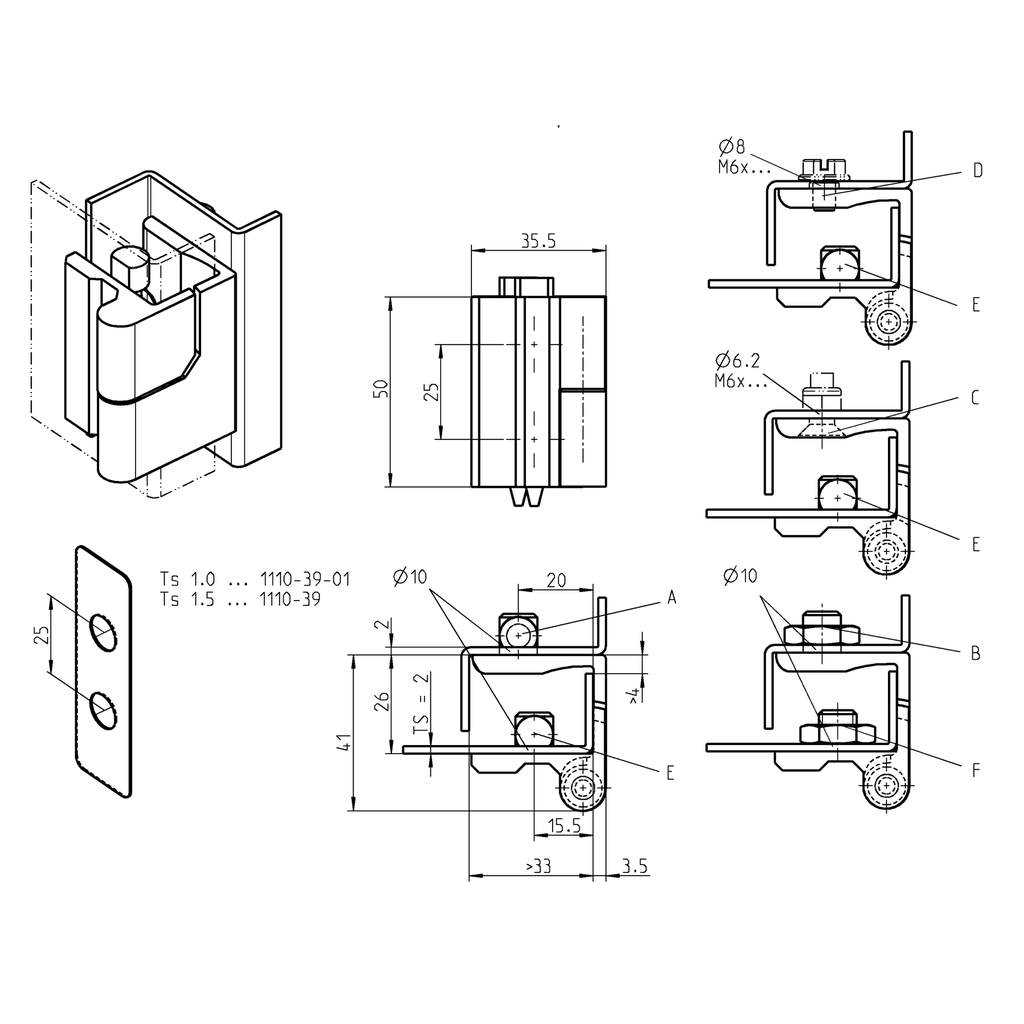

    Here you can find the product data sheets and CAD files of this product
