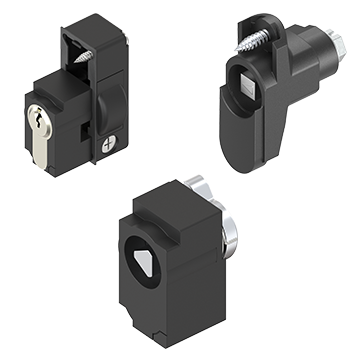

Locking set profile half cylinder with push button and round cylinder, keyed different, Polyamide GF black
Locking set profile half cylinder with push button and round cylinder, keyed different, Polyamide GF black
Profile half cylinder with push button, Polyamide GF dust grey
Profile half cylinder with push button, Polyamide GF dust grey

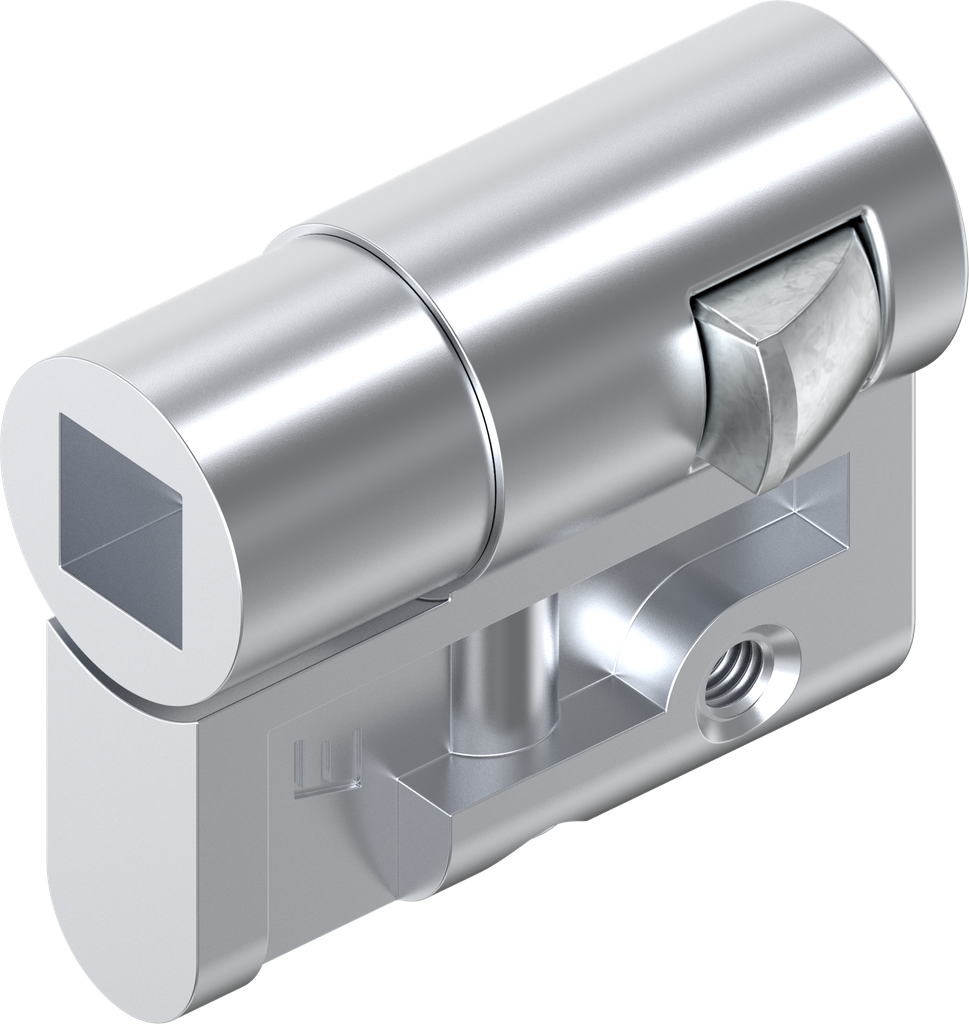

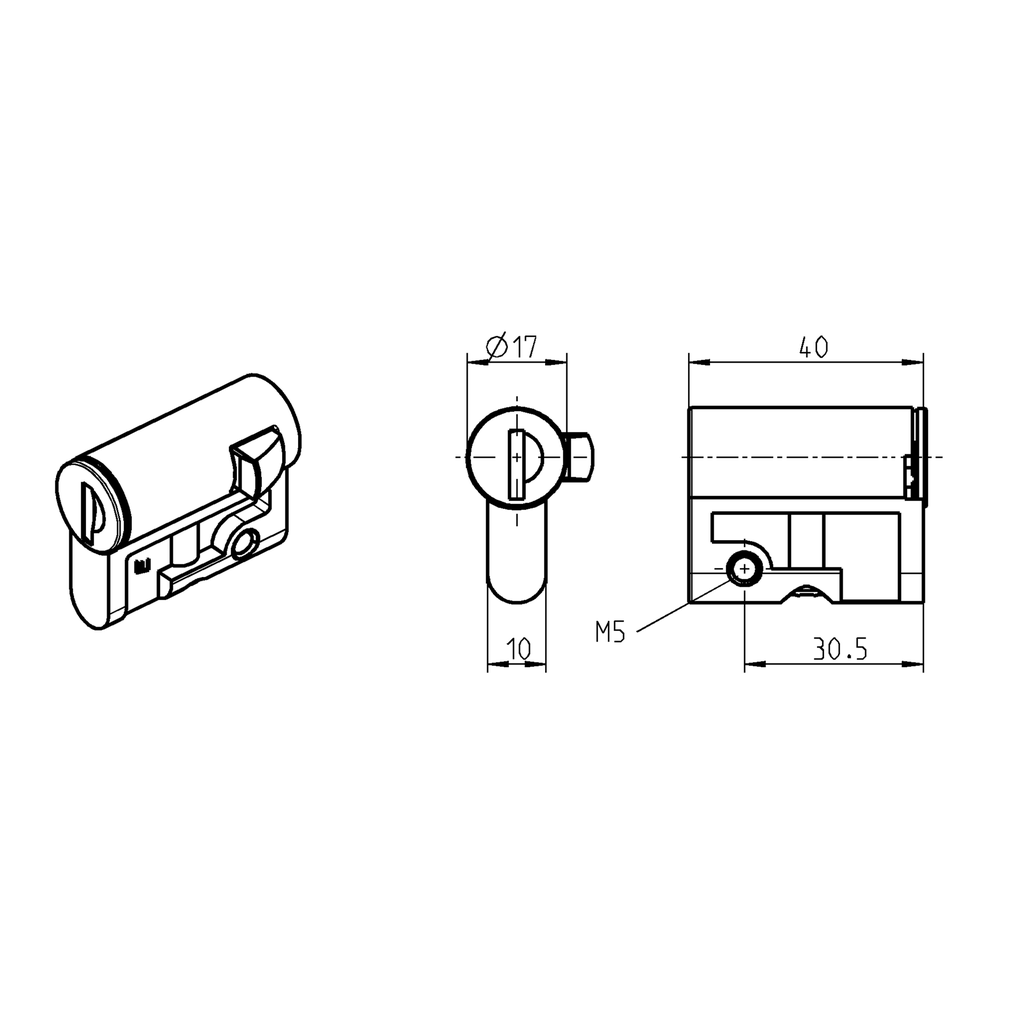

Profile half cylinder with insert square female 8, Zinc die chrome-plated; 1109-U55-N

https://www.emka.com/products/1109-u55-n-profile-half-cylinder-with-insert-square-female-8-zinc-die-chrome-plated-217943 https://www.emka.com/web/image/product.template/217943/image_1920?unique=696c7b4

A = 30 mm

    This combination does not exist.

    No stock item, please ask for availability

    Function:

    Spring-loaded return of locking cam into locked position
    Internal Reference: 1109-U55-N
    Barcode: 1109-U00055-000000N
    Product Type: Profile half cylinder
    Program: 1109
    Catalog sheet: 3XB-120
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Article with property rights: Yes
    Type of actuation: Square female 8
    snap function: Yes
    Snap function, thumb position: Locking cam lateral
    No Specifications
    View All Products
    Screw
    Keys
    Handle
    Swinghandle, Lifthandle
    Locking set
    Assembly
    Here you can find the product data sheets and CAD files of this product
