Profile half cylinder with insert triangular 6.5 CNOMO, Zinc die chrome-plated
Profile half cylinder with insert triangular 6.5 CNOMO, Zinc die chrome-plated
Locking set profile half cylinder with insert triangular 8, Polyamide GF black
Locking set profile half cylinder with insert triangular 8, Polyamide GF black

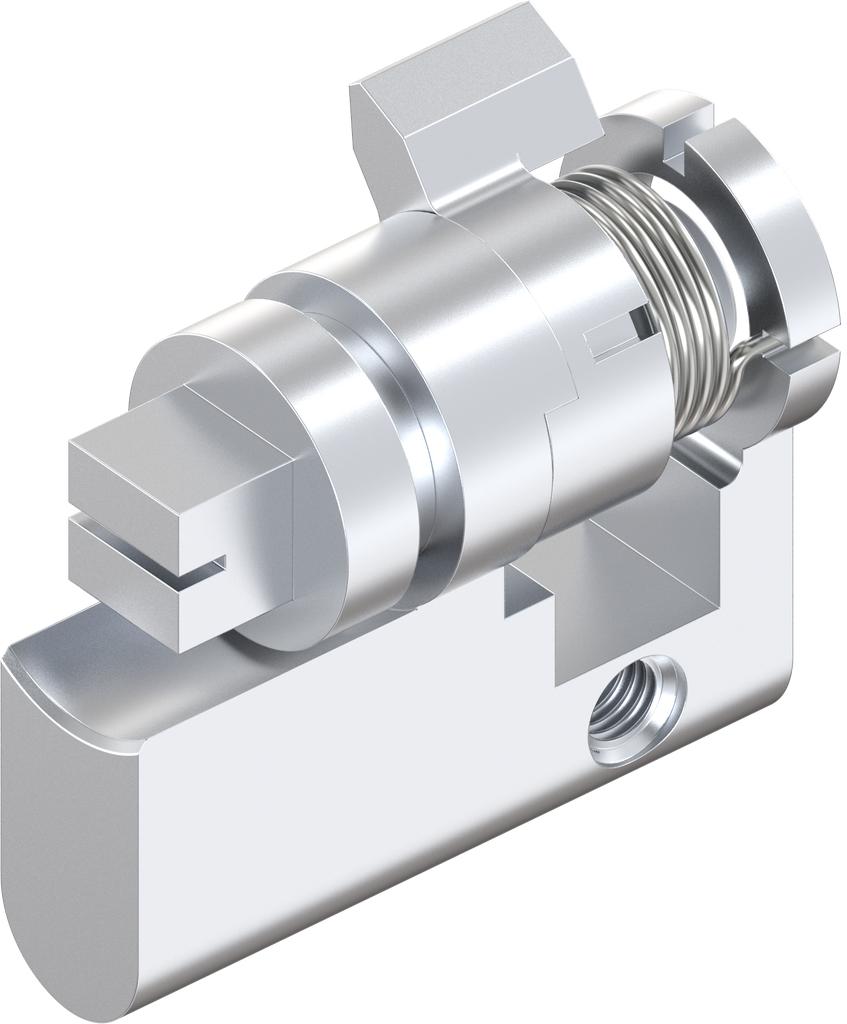

Profile half cylinder with insert square 8 slotted, Zinc die chrome-plated; 1109-U21-01

https://www.emka.com/products/1109-u21-01 https://www.emka.com/web/image/product.template/217911/image_1920?unique=7ab90a2

    This combination does not exist.

    No stock item, please ask for availability
    Internal Reference: 1109-U21-01
    Barcode: 1109-U00021-0000001
    Product Type: Profile half cylinder
    Program: 1109
    Catalog sheet: 3XB-320
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Type of actuation: Square 8 with slot
    snap function: Yes
    Snap function, thumb position: Locking cam top
    No Specifications
    View All Products
    Assembly
    Swinghandle, Lifthandle

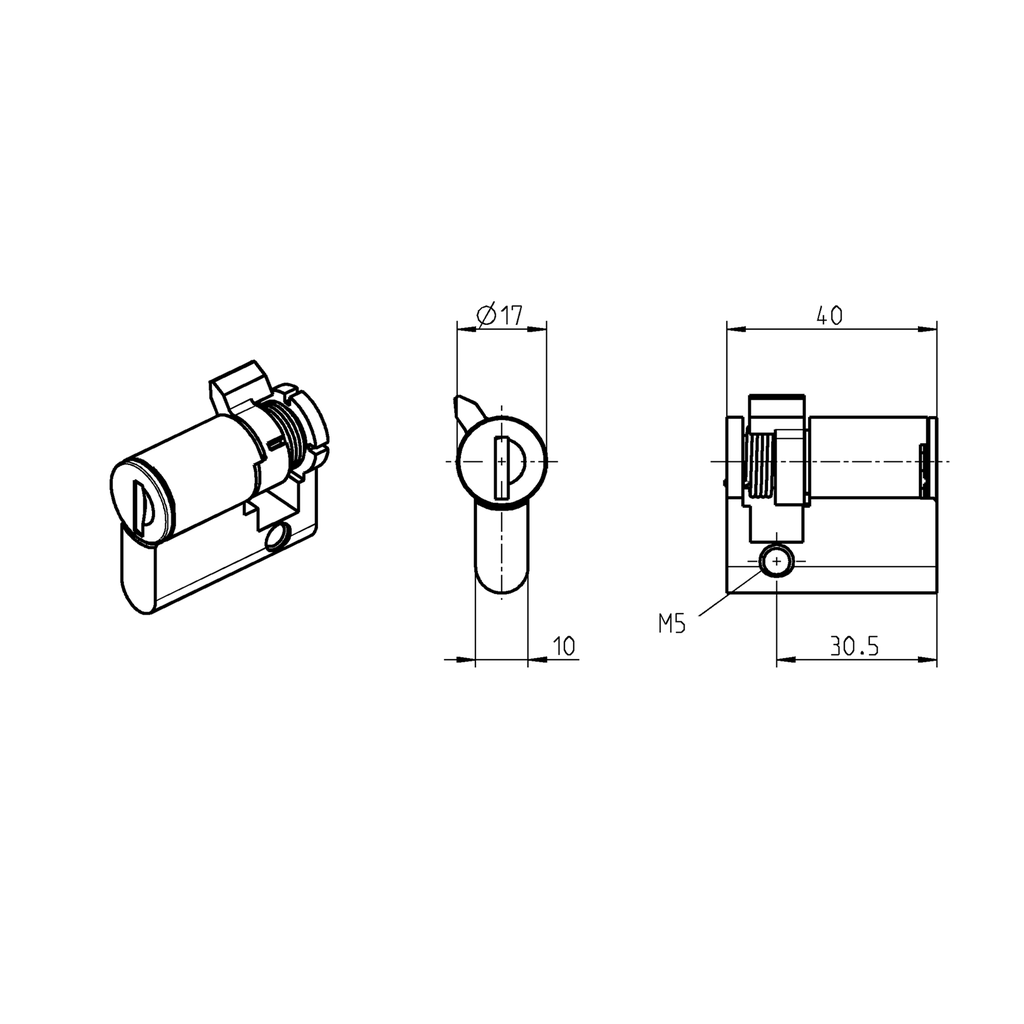

    Here you can find the product data sheets and CAD files of this product
