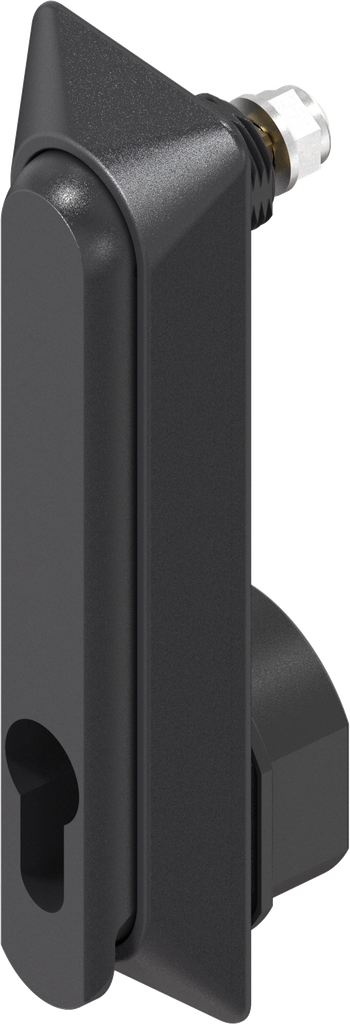

Swinghandle "short" for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black
Swinghandle "short" for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black

Swinghandle "short" for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1107-U158-G

https://www.emka.com/products/1107-u158-g https://www.emka.com/web/image/product.template/62448/image_1920?unique=1e38eee

for cam


    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 Left Right


    Product information:

    When using the adapter ring the max. door gauge (Ts) will be 6 mm.

    When using door gauge (Ts) > 4 mm standard round rods cannot be used!

    Order screw set 1107-U170 for Ts = 4 - 12 mm separately

    Internal Reference: 1107-U158-G
    Product Type: Swinghandle, Lifthandle
    Program: 1107
    Catalog sheet: 3A-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: One locking set
    Attachment of the trough: Screw-on cap IP 65
    Mounting Positions : Inside the sealing
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Cloak: Yes
    Without locking set: Profile half cylinder, blind plug without spring-loaded ball,Profily half cylinder blind plug with spring-loaded ball
    Suitable for door thickness from: 2 mm
    Suitable for door thicknesses up to: 12 mm
    Locking set: Profile half cylinder A = 30
    Swivel Handle: 20 mm
    Pan Handle Length: 165 mm
    Door Version : Left,Right
    Locking components: Cam
    No Specifications
    View All Products
    Cam
    Rod control
    Profile half cylinder
    Adapter
    Here you can find the product data sheets and CAD files of this product
