Bow-type handle, Aluminium black plastic-coated
Tube handle, Aluminium anodized
Product information:

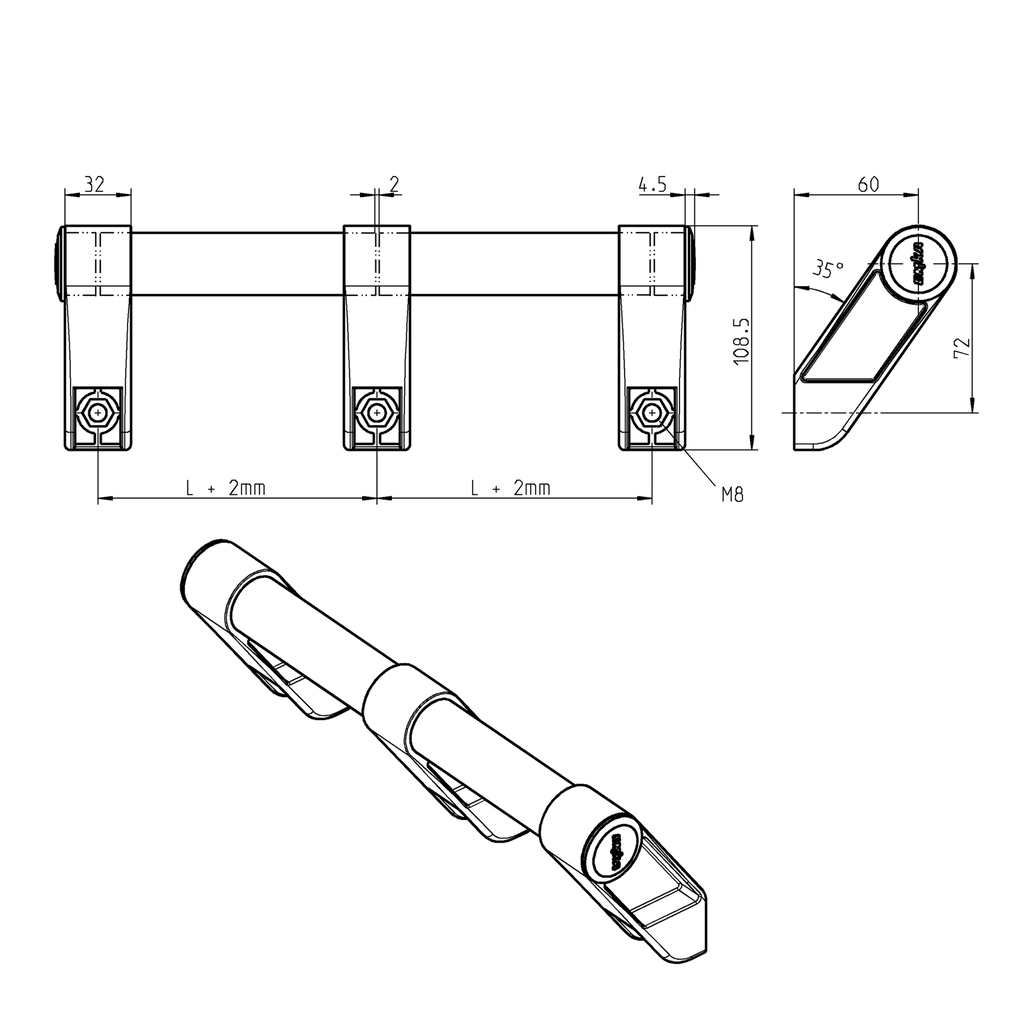

Grip usable left, right and as centre part. A middle stay is to be used from 1000 mm length. When used as a middle stay the tube has to be split.
Handle stay for hexagon head screw or hexagon socket head cap screw M8 acc. to DIN 4017/1207
Internal Reference:
1095-U1
Product Type:
Grip
Program:
1095
Catalog sheet:
6A-240
Material of the module :
Polyamide
Surface of the module:
black
Fixing type of handle:
screw-on from outside
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
