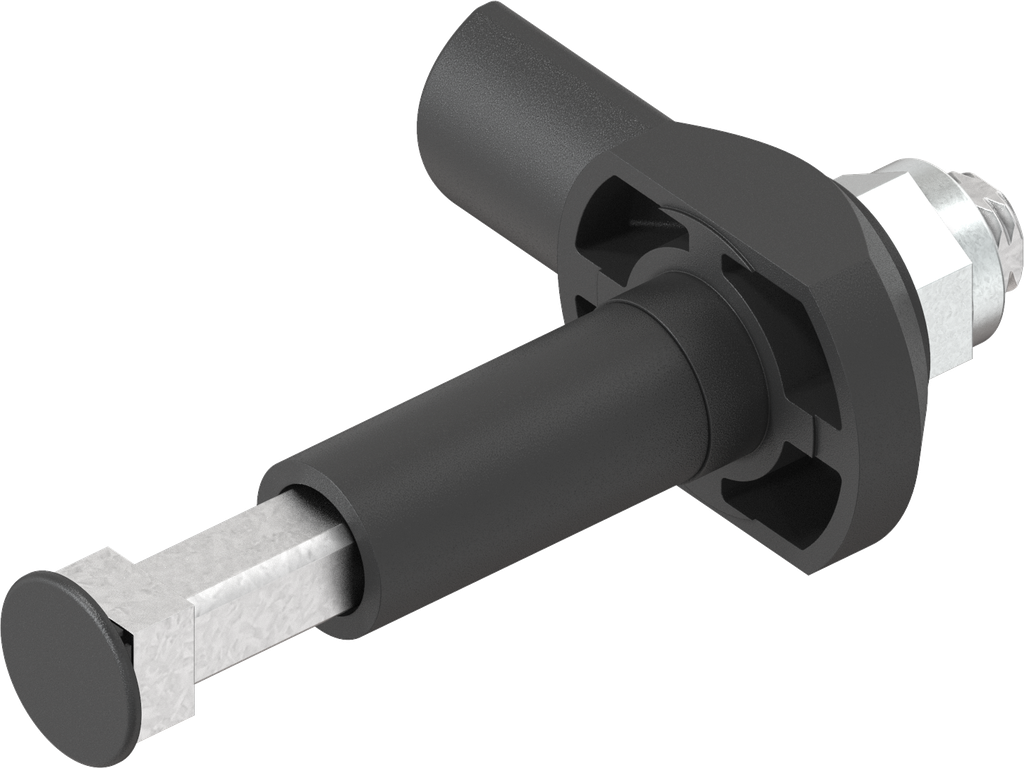

Heavy duty latch with zinc die shaft, Polyamide GF black; 1091-U82

https://www.emka.com/products/1091-u82 https://www.emka.com/web/image/product.template/62132/image_1920?unique=c811939

without rod control for Ts = 51 - 70 mm


    This combination does not exist.



    Product information:

    1 = Plastic cap
    2 = Zinc die shaft
    3 = Outside handle and inside handle
    4 = Bezel
    5 = Padlock facility
    6 = Spacer tube
    7 = Door
    8 = Bezel cam with and without 3-point cam
    9 = Rod (on request)
    10 = Bush
    11 = Outside handle and inside handle
    12 = Nut

    Assembly instruction:

    If an inside handle is installed, the maximum door gauge is reduced by 10 mm.

    Internal Reference: 1091-U82
    Product Type: Shaft
    Program: 1091
    Material of the module : Polyamide GF
    Surface of the module: black
    Axis: Zinc die shaft
    Compression Value : 7 mm
    Suitable for door thickness from: 51 mm
    Suitable for door thicknesses up to: 70 mm
    Lock Type(1): Cam
    Closure Type: Heavy duty latch, classic
