Rod control for multi-point locking, Steel zinc-plated
Catch for flat rod with double roller oder single roller, Zinc die black powder-coated
Product information:
Bezel inside with quick mounting function
1 = Outside handle

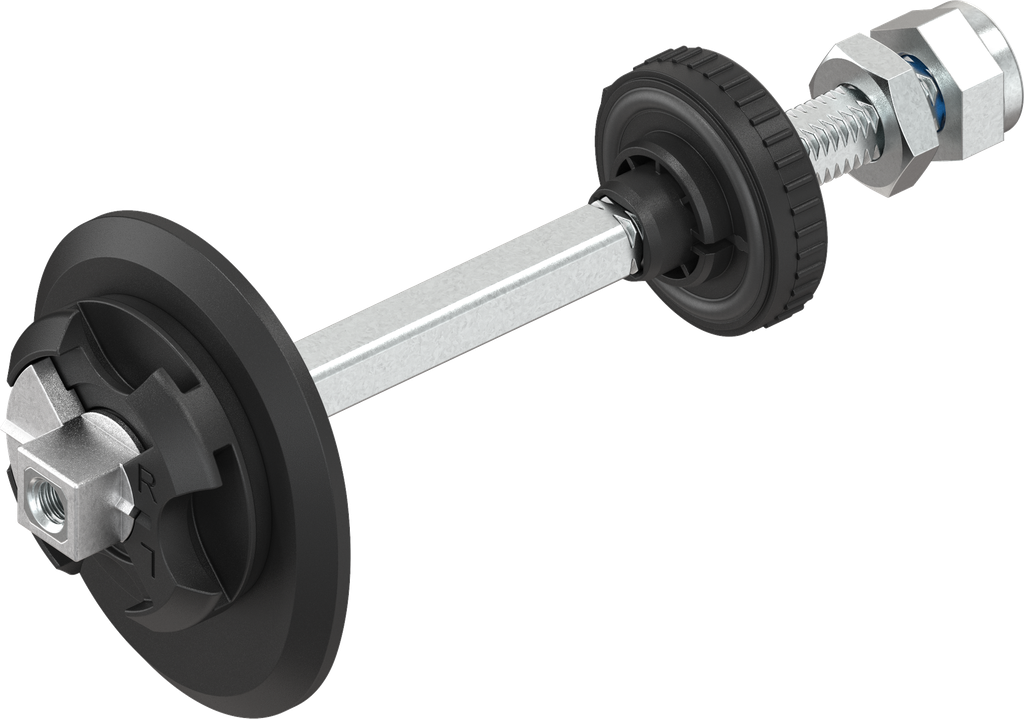

2 = Shaft unit
3 = Roller cam
4 = Inside handle (optional)
5 = Pressure relief (optional)
A = The legibility of the labeling (R / L) indicates the orientation of the axis to the door stop
10 = Cut out inside
11 = Cut out front for right-hand and left-hand stopper
12 = Cut out front, alternative
Internal Reference:
1091-U215-75
Product Type:
Shaft
Program:
1091
Material of the module :
Zinc die and steel
Surface of the module:
zinc-plated
Axis:
Steel and zinc die combined
Number of Possible Locking Points:
1 point
Integrated seal:
Yes
Suitable for door thickness from:
75 mm
Suitable for door thicknesses up to:
85 mm
Closure Type:
The modular HVACR program
No Specifications
