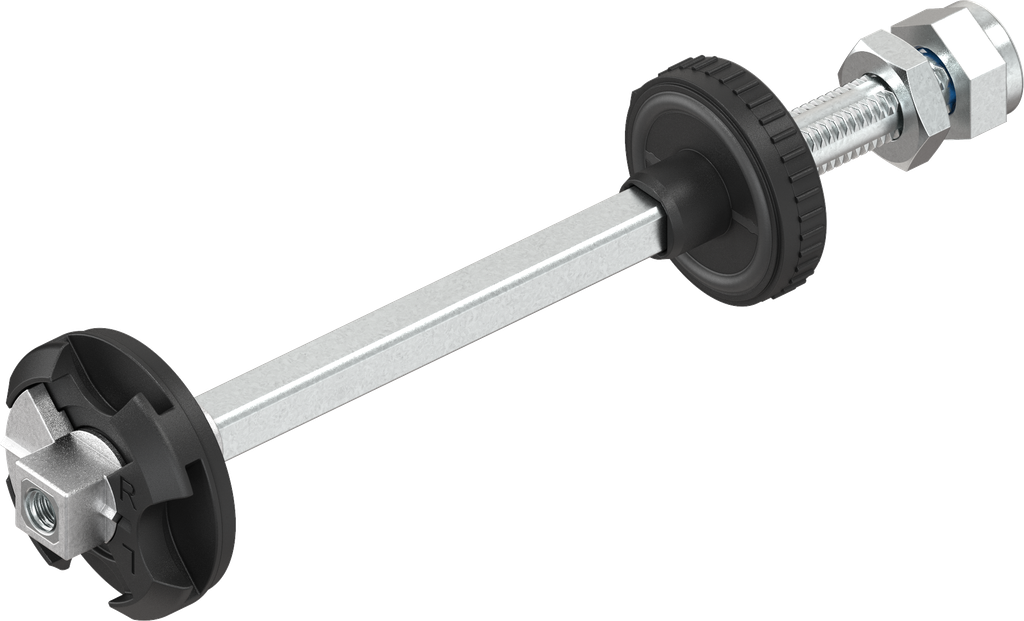

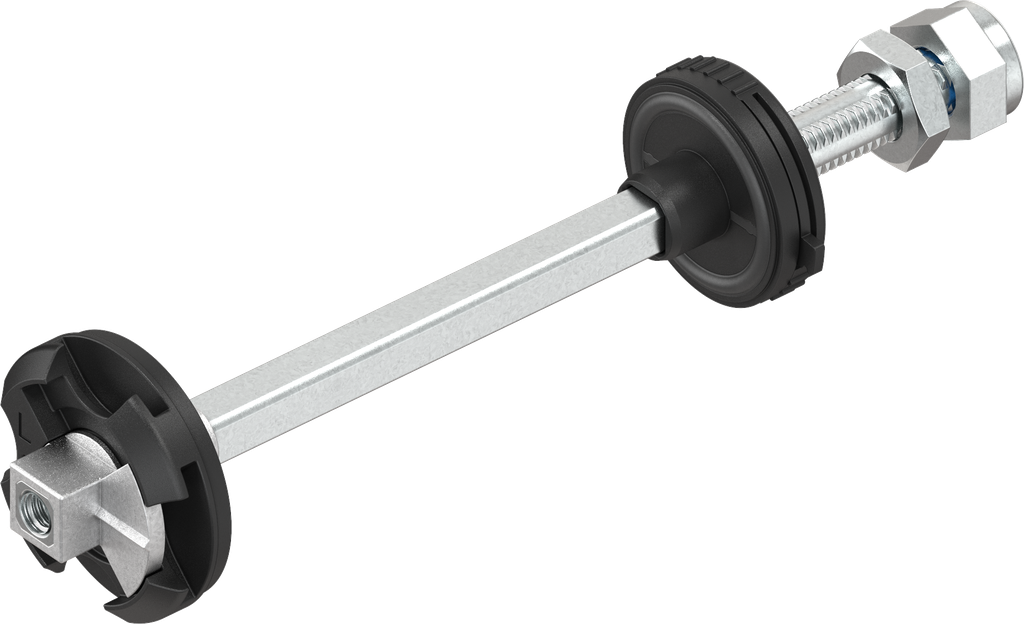

Shaft unit E1, Zinc die and steel zinc-plated; 1091-U158-100

https://www.emka.com/products/1091-u158-100 https://www.emka.com/web/image/product.template/62170/image_1920?unique=289cd53

E1 small cut out, for Ts = 100 - 110 mm


    This combination does not exist.



    Product information:

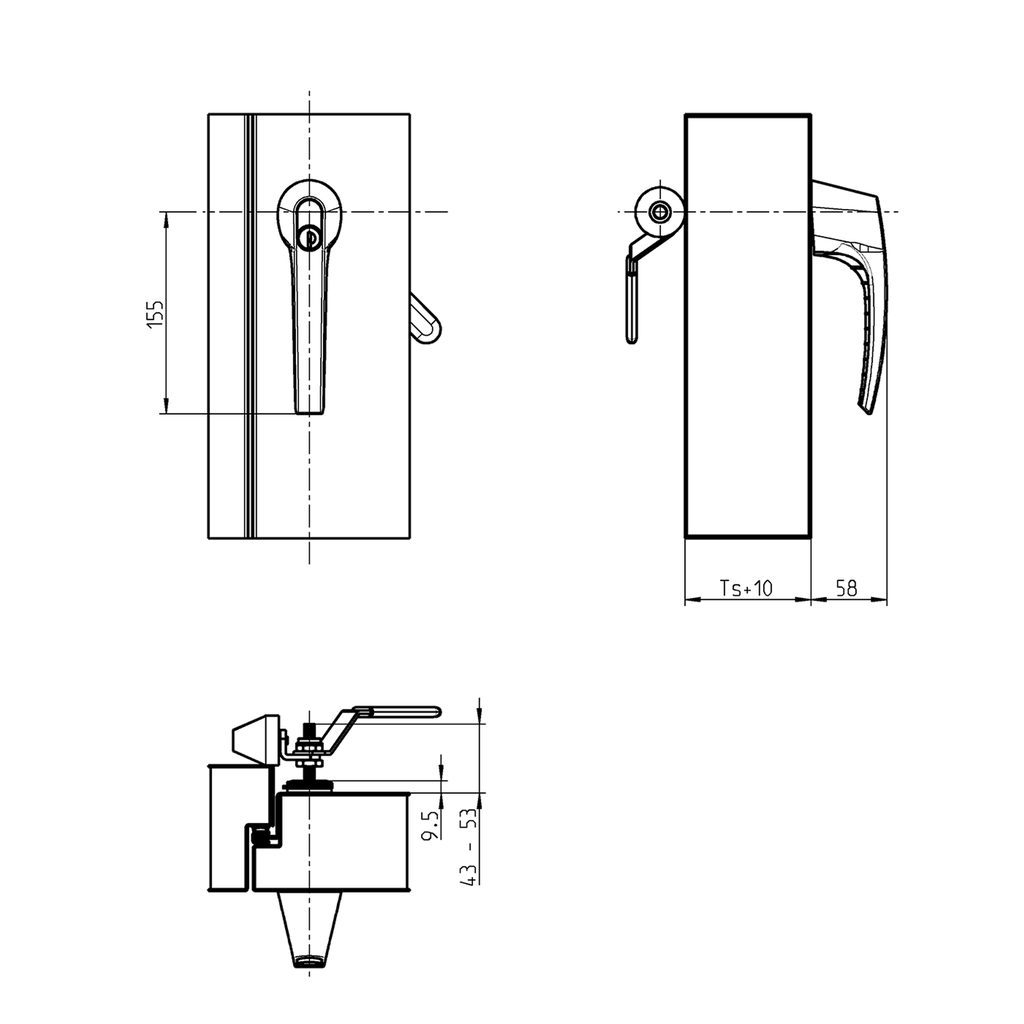

    Bezel inside with quick mounting function

    1 = Outside handle
    2 = Shaft unit
    3 = Roller cam
    4 = Inside handle (optional)
    % = Pressure relief (optional)

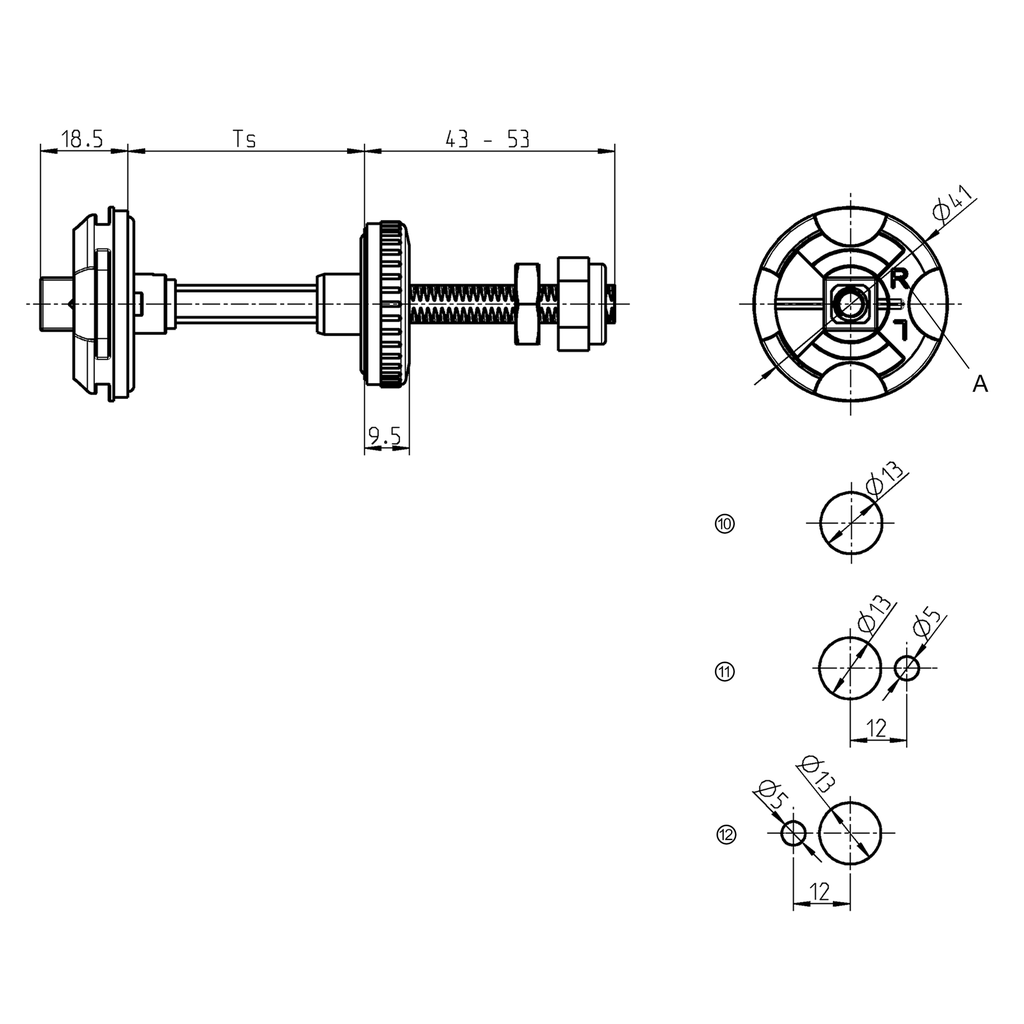

    10 = Cut out inside
    11 = Cut out front for right-hand stopper
    12 = Cut out front for left-hand stopper

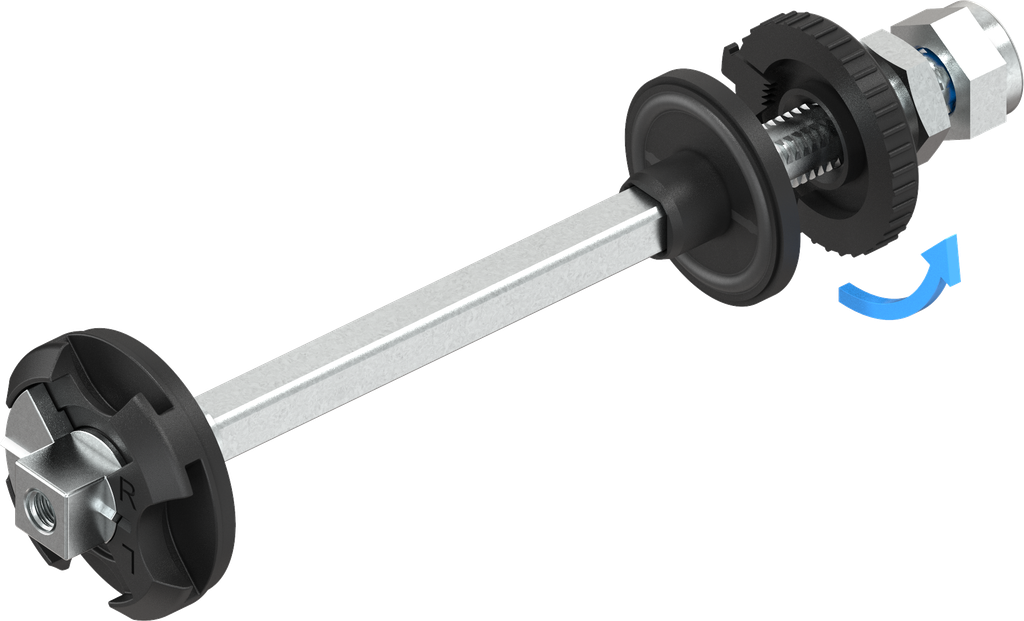

    Assembly instruction:

    The cut out of the shaft unit is only required if there is no bezel.

    Internal Reference: 1091-U158-100
    Product Type: Shaft
    Program: 1091
    Material of the module : Zinc die and steel
    Surface of the module: zinc-plated
    Axis: Steel and zinc die combined
    Number of Possible Locking Points: 1 point
    Integrated seal: Yes
    Suitable for door thickness from: 100 mm
    Suitable for door thicknesses up to: 110 mm
    Closure Type: The modular HVACR program
