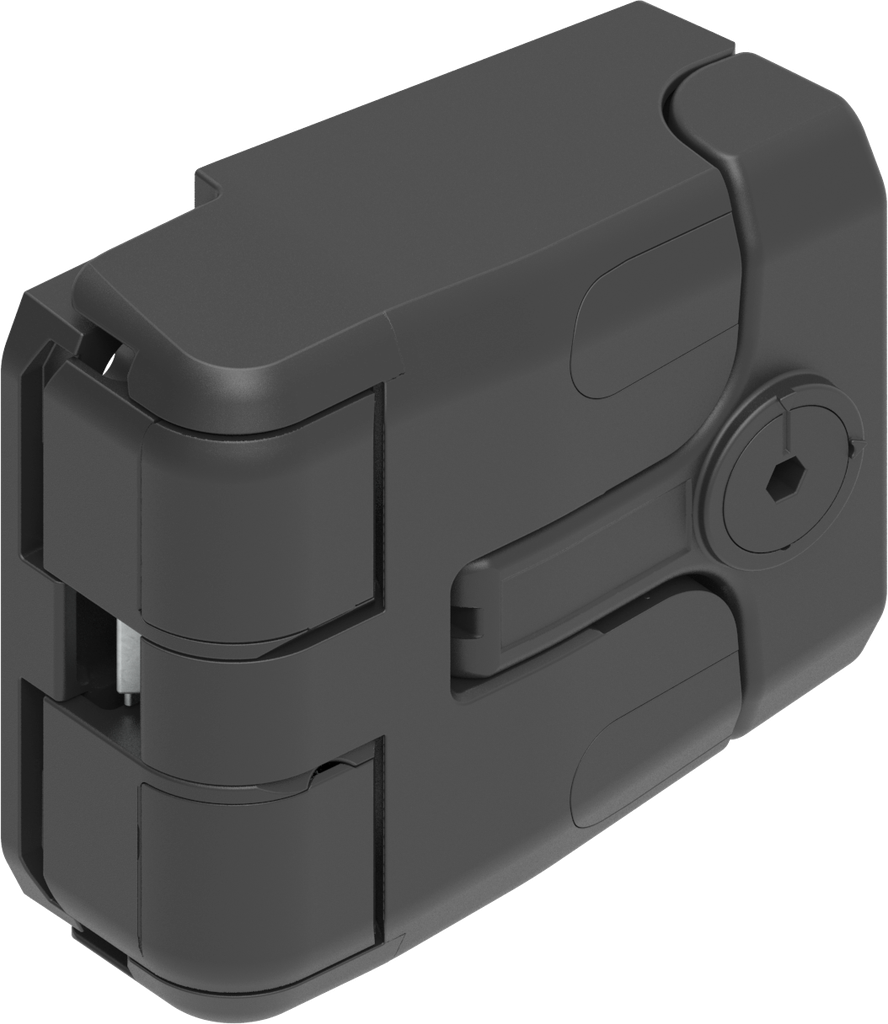

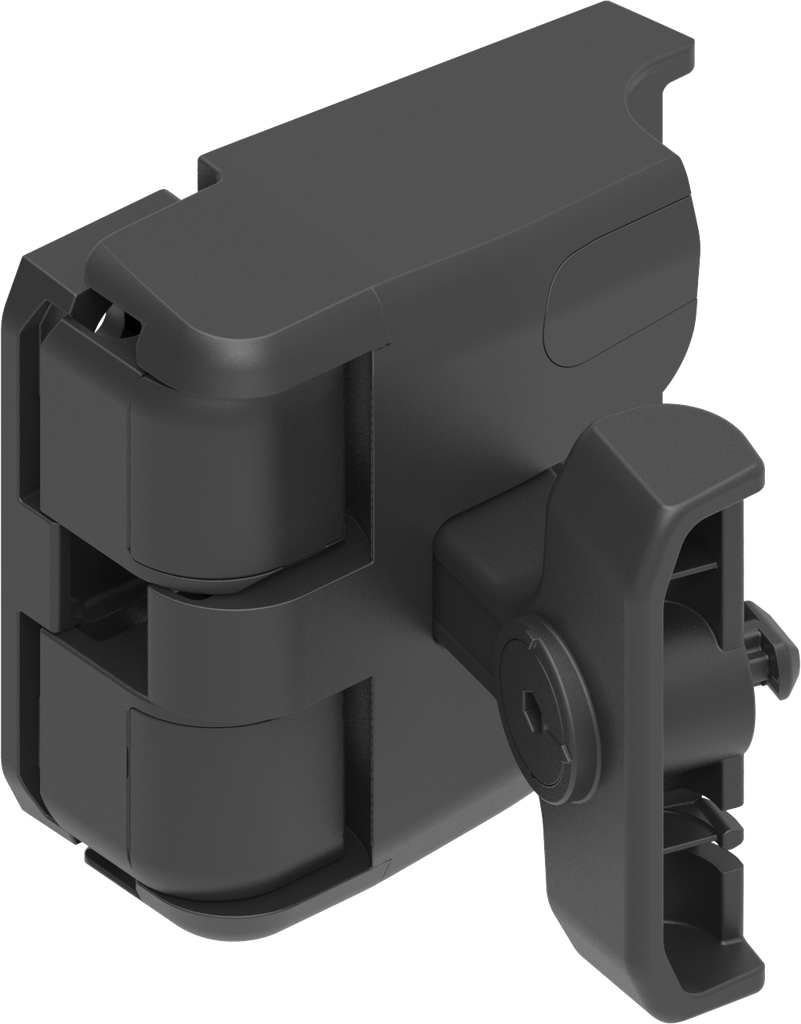

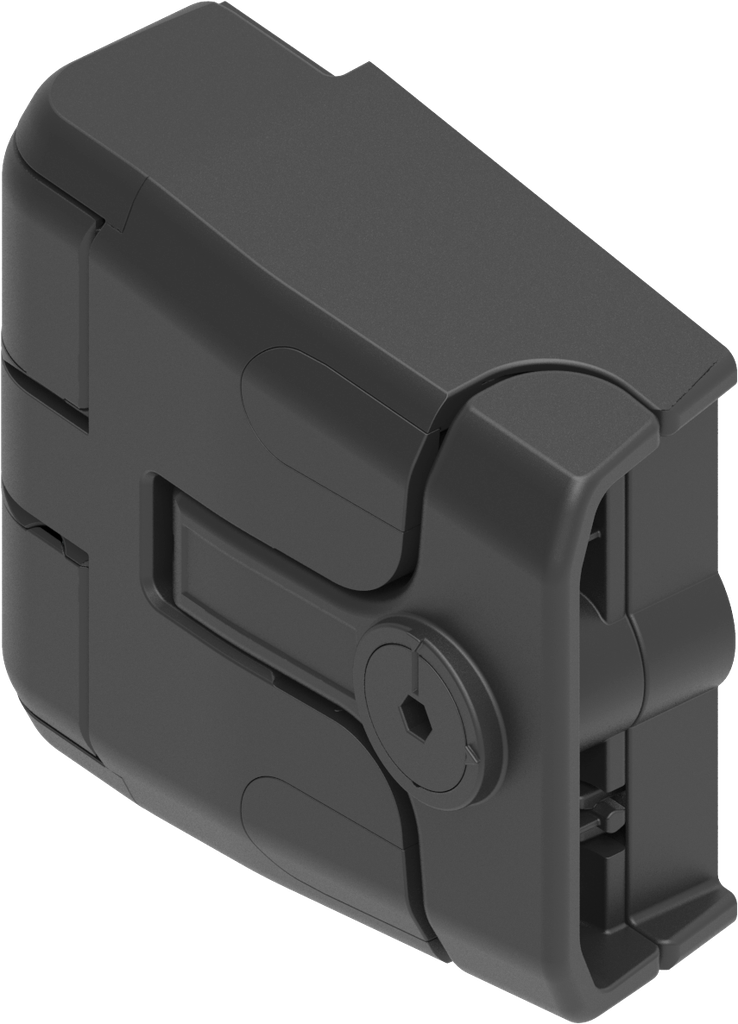

Latch-Hinge with pressure relief, hexagon female SW 4, Polyamide GF black; 1091-U147

https://www.emka.com/products/1091-u147 https://www.emka.com/web/image/product.template/62165/image_1920?unique=d8bff81

    This combination does not exist.

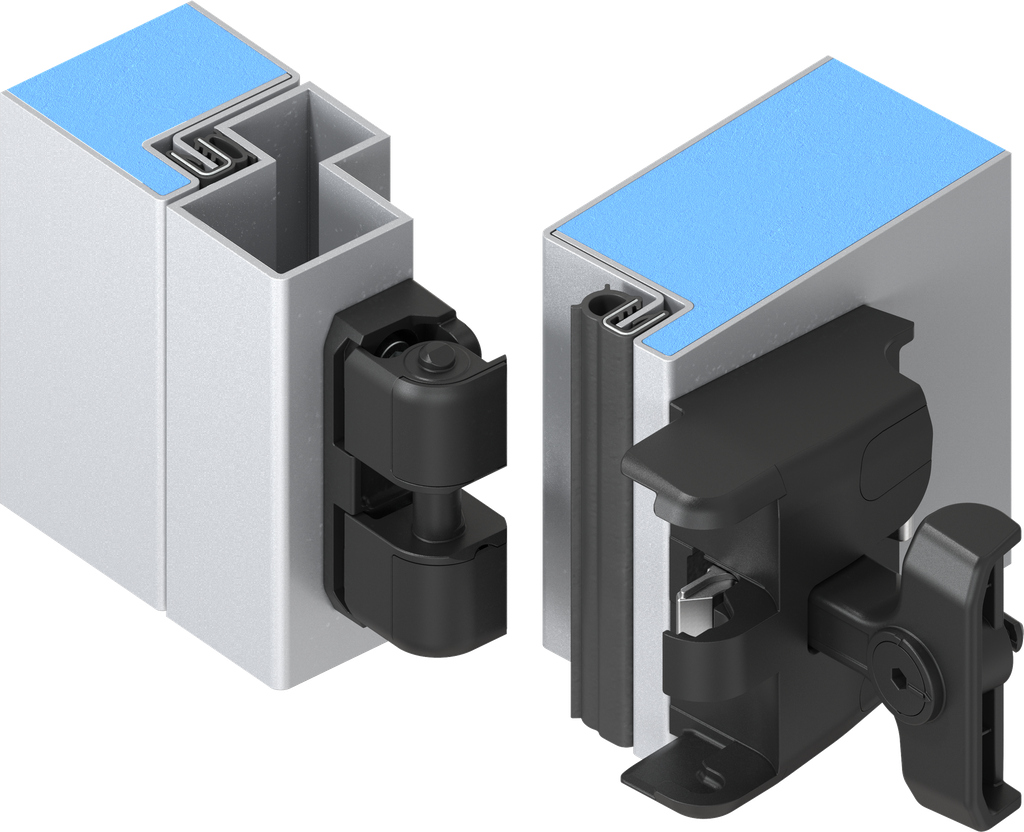

    Single cabinets In-line cabinets with single door Outside the sealing Left Right

    Product Benefits:

    • When the door is closed, the latch is adjustable (3 mm) to achieve perfect alignment Compression (5 mm) with low opening and closing force due to ergonomic closing with the handles Door / panel can be removed by unlatching the handles on both sides 3D adjustable (tolerance compensation) Latch-Hinge can be mounted as one piece with the door / panel in place Right or left hinged Hinge 180° opening angle Optionally, available with safety function "pressure relief" 1x per locking side Patented
    • Compression (5 mm) with low opening and closing force due to ergonomic closing with the handles
    • Door / panel can be removed by unlatching the handles on both sides
    • 3D adjustable (tolerance compensation)
    • Latch-Hinge can be mounted as one piece with the door / panel in place
    • Right or left hinged

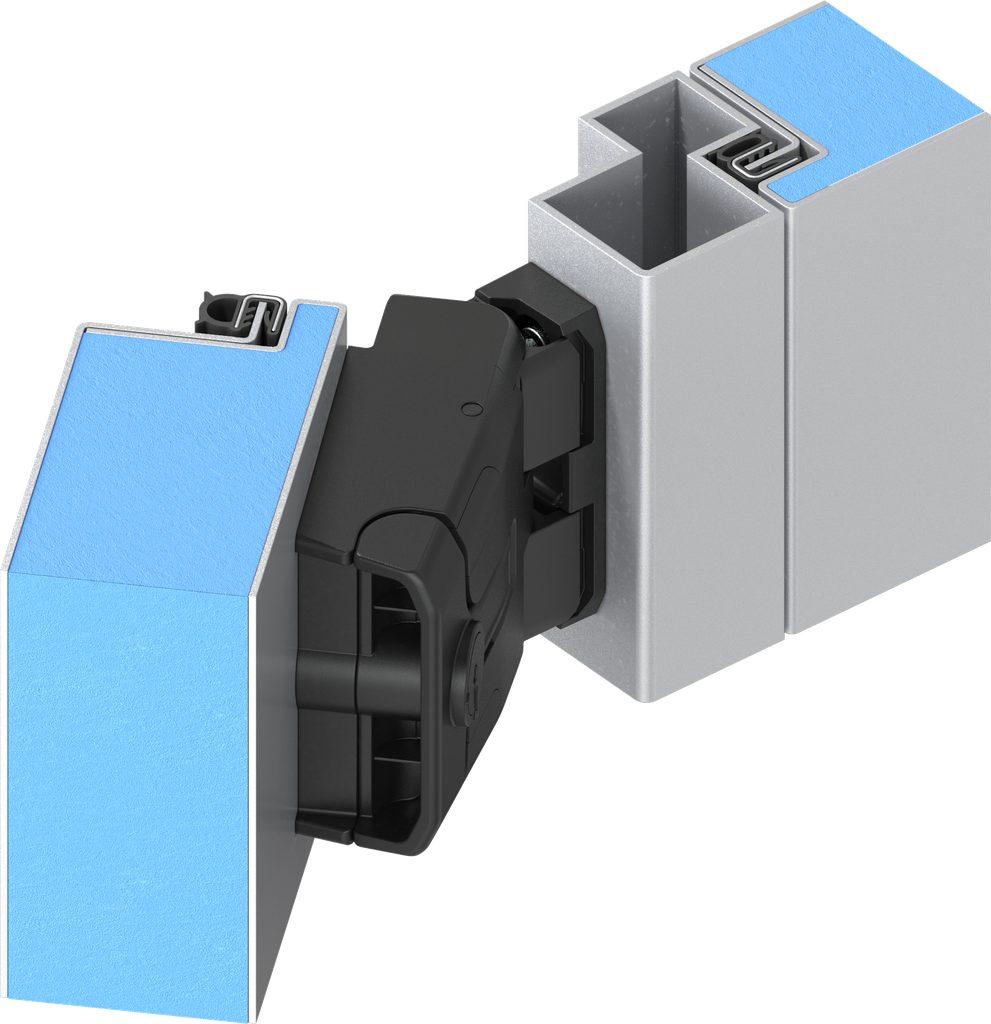

    • Hinge 180° opening angle

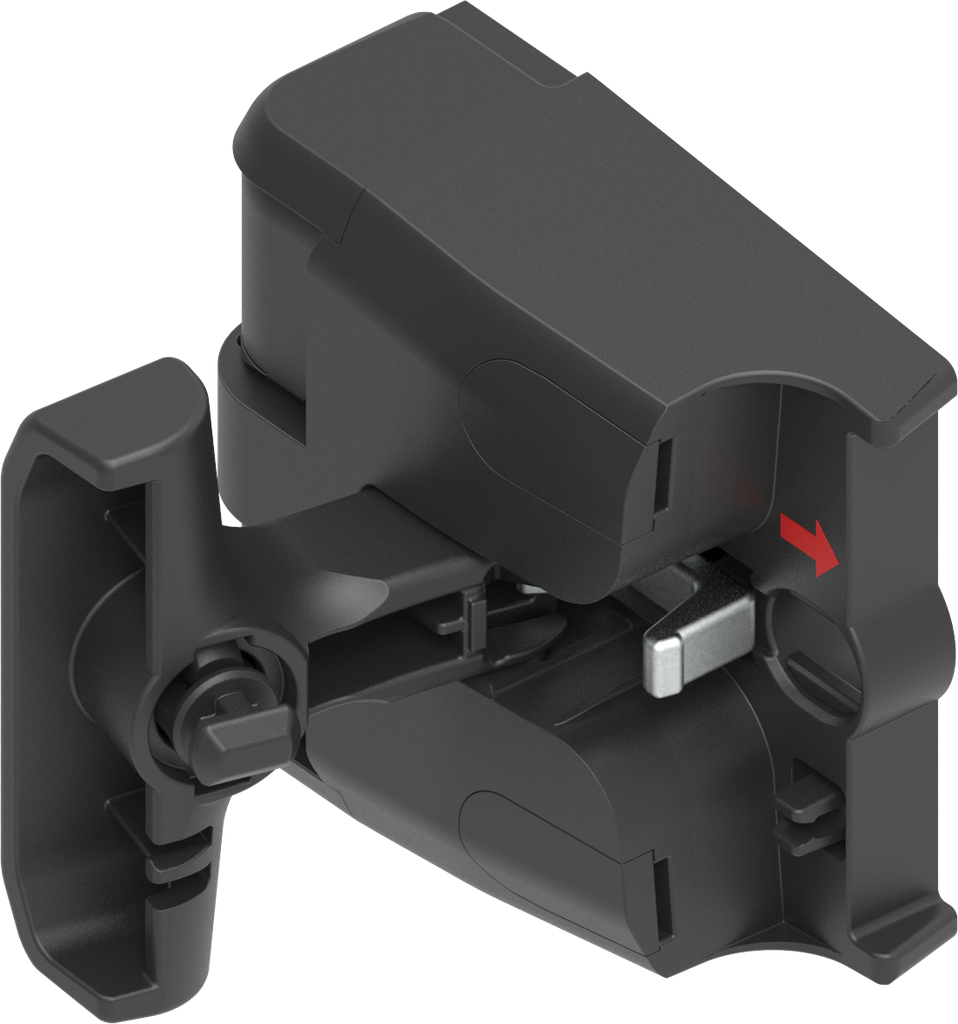

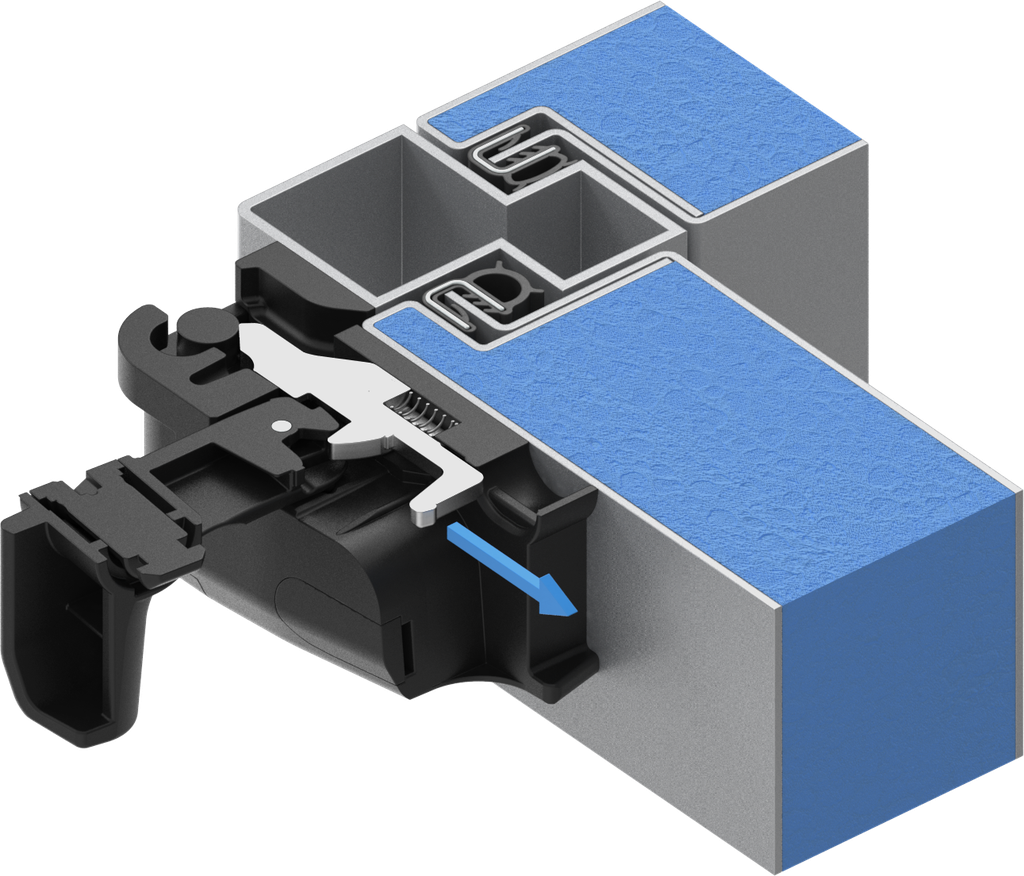

    • Optionally, available with safety function "pressure relief" 1x per locking side
    • Patented

    Product information:

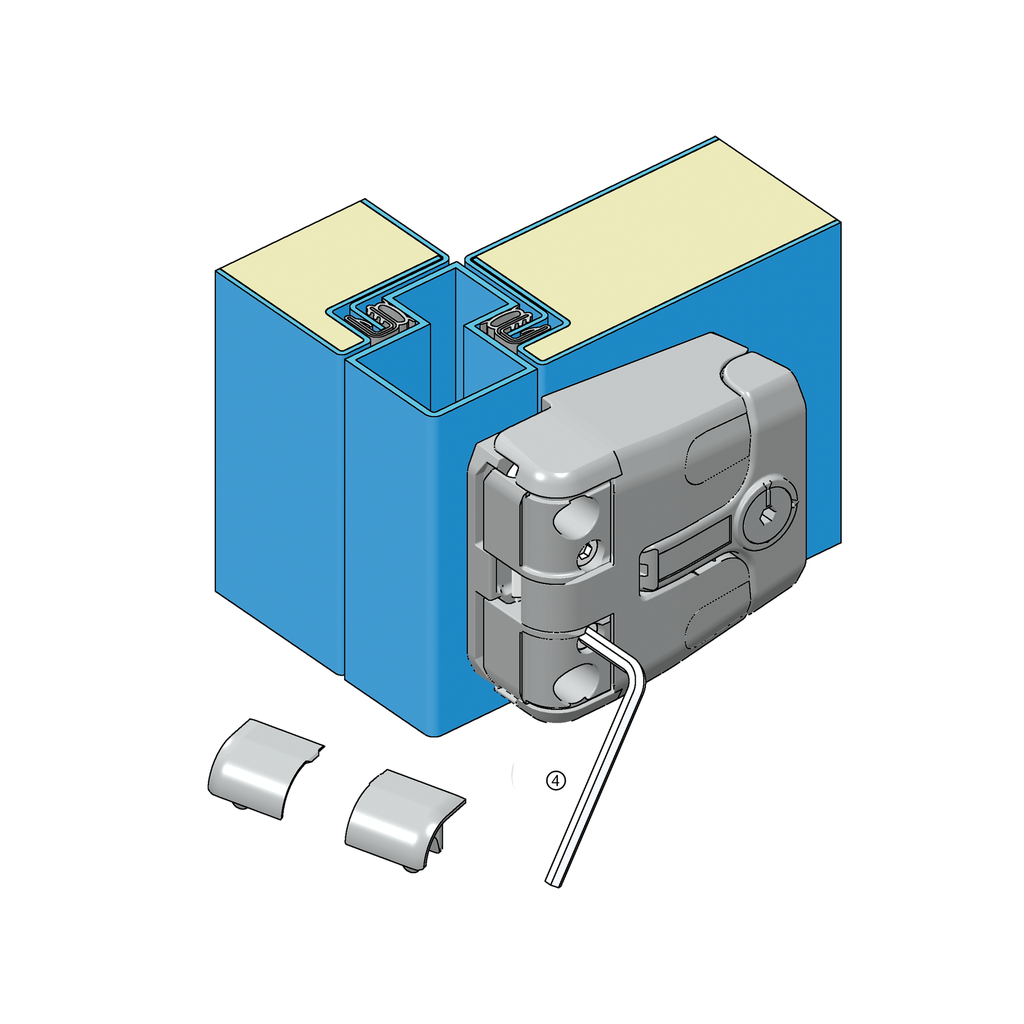

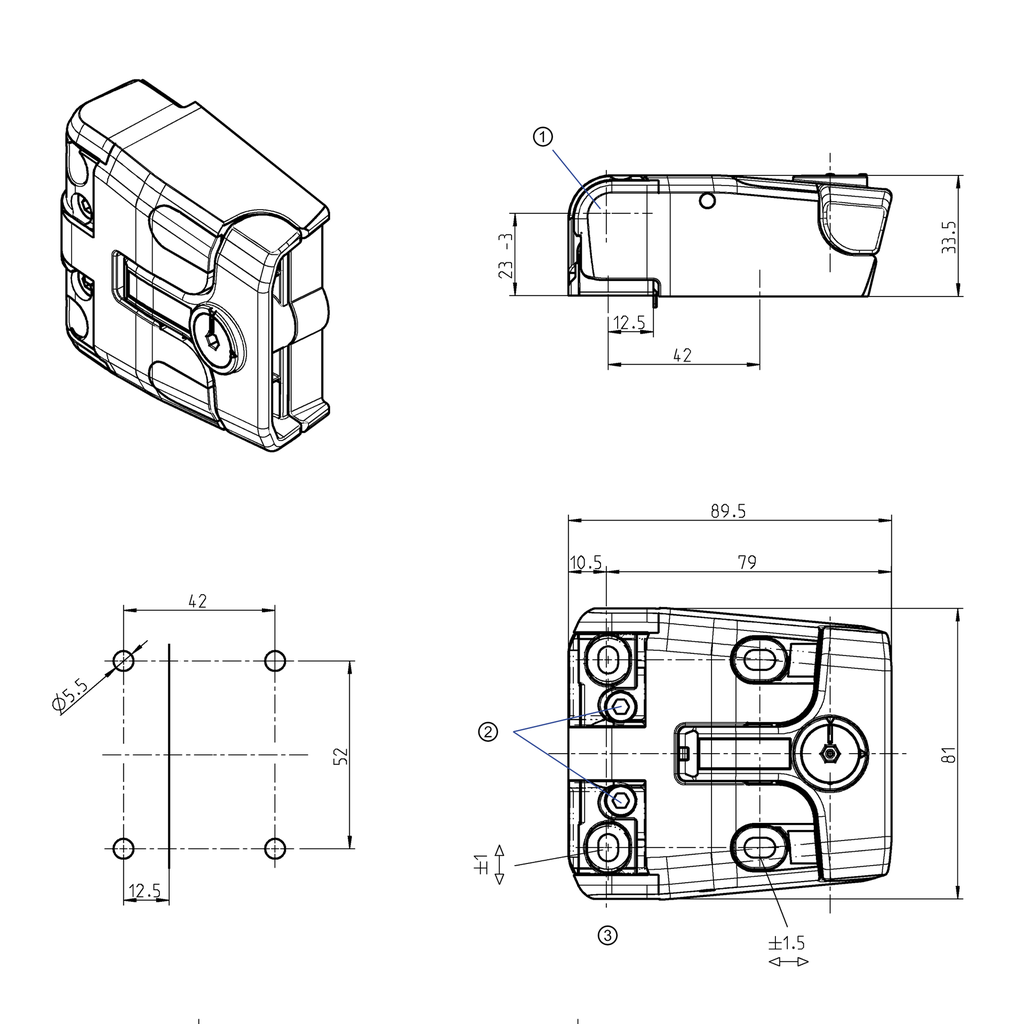

    Use latch-hinge with pressure relief 1x per locking side ① = Centre of rotation ② = Screws hexagon female SW 4 for height adjustment ③ = View without screw covers ④ = Compression adjustable on hinge frame part

    ① = Centre of rotation

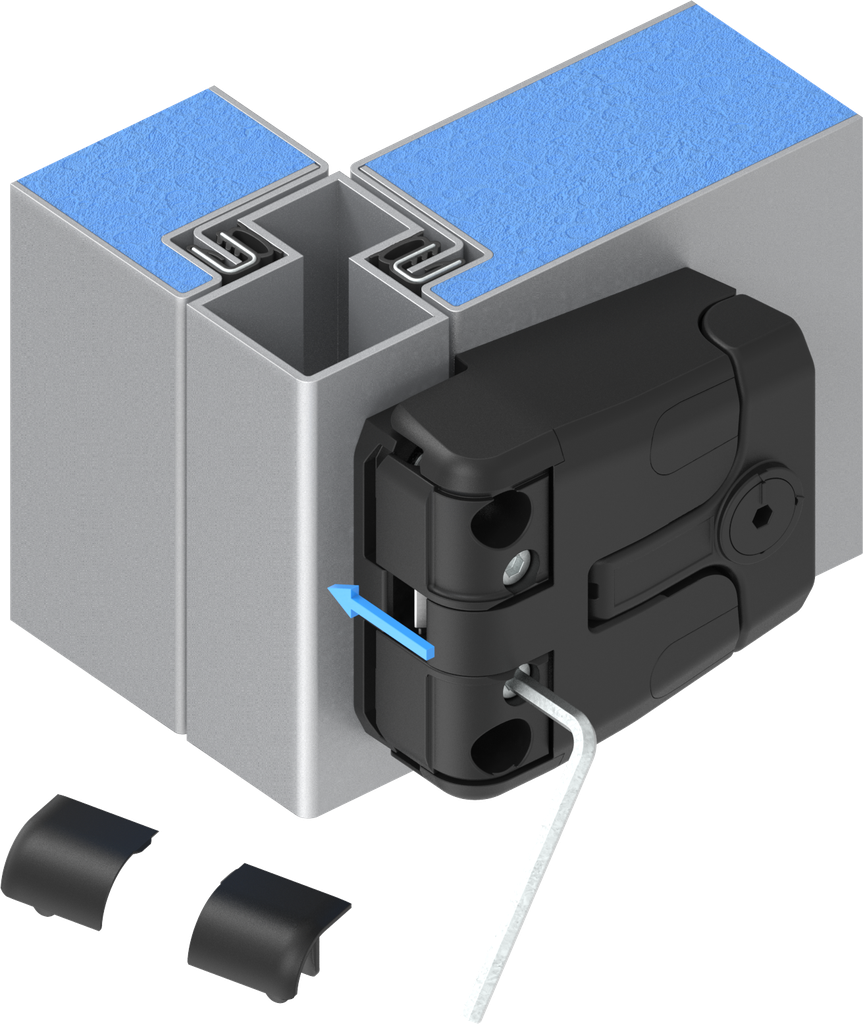

    ② = Screws hexagon female SW 4 for height adjustment
    ③ = View without screw covers
    ④ = Compression adjustable on hinge frame part
    Internal Reference: 1091-U147
    Product Type: Other latch
    Program: 1091
    Material of the module : Polyamide GF
    Surface of the module: black
    Article with property rights: Yes
    Detachable: without tools
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Type of actuation: Hexagon female SW 4
    Mounting Positions : Outside the sealing
    Adjustable : 3D
    Compression Value : 5 mm
    Max Opening Angle: 180°
    Locking set: Insert
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Lock Type: Latch-Hinge
