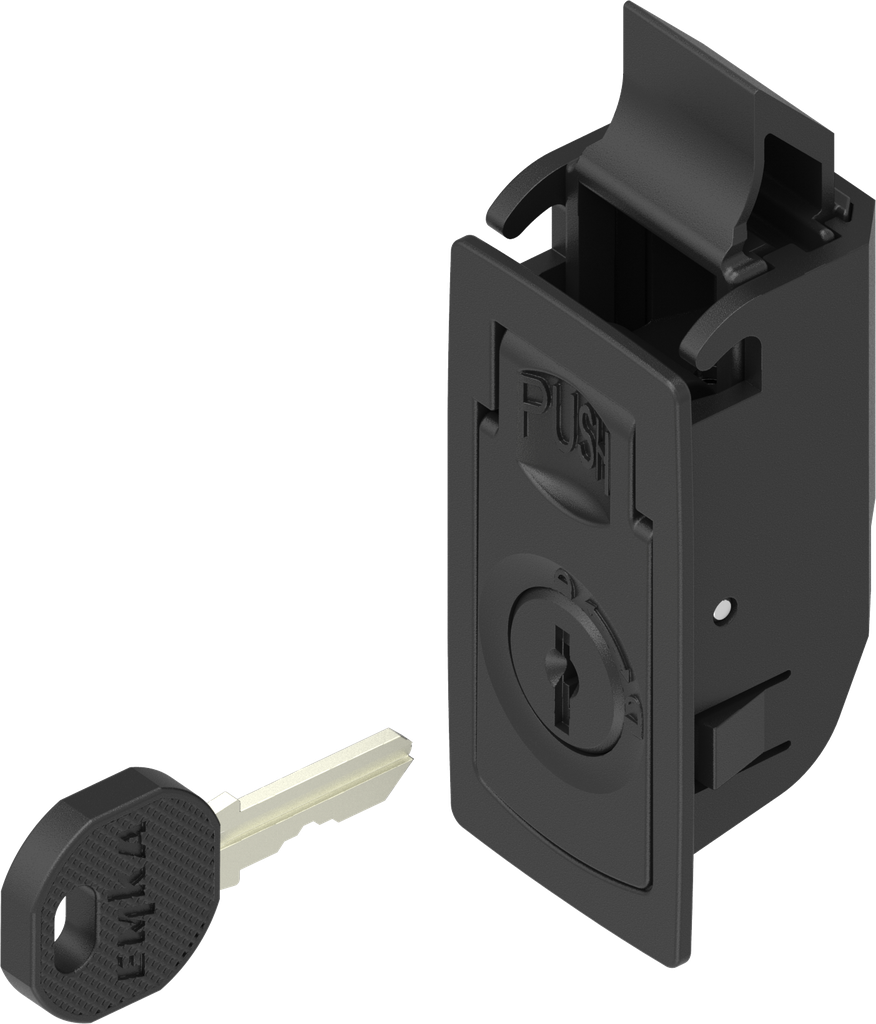

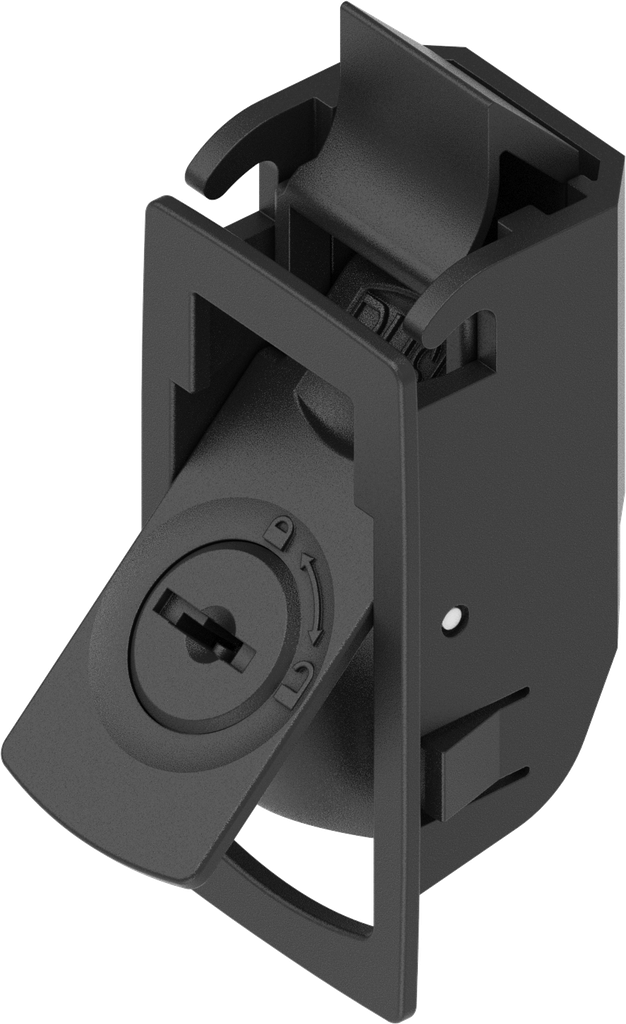

Side panel latch, keyed EK 333, Polyamide GF black; 1091-U143

https://www.emka.com/products/1091-u143 https://www.emka.com/web/image/product.template/62159/image_1920?unique=9c6f97c


    This combination does not exist.

    Inside the sealing Left Right


    Internal Reference: 1091-U143
    Product Type: Other latch
    Program: 1091
    Catalog sheet: 8A-440
    Material of the module : Polyamide GF
    Surface of the module: black
    Mounting Positions : Inside the sealing
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 1.40 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Lock Type: Side panel latch
    No Specifications
    View All Products
    Keys

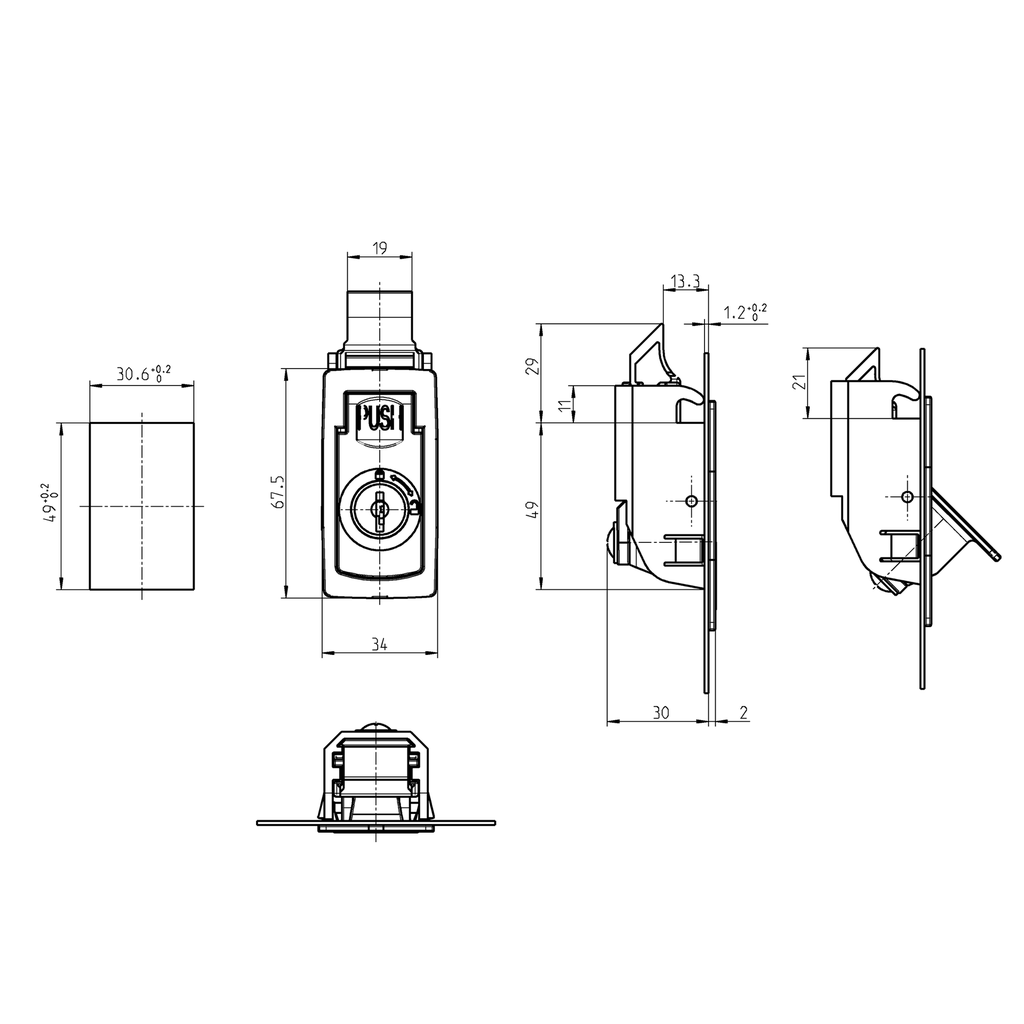

    Here you can find the product data sheets and CAD files of this product
