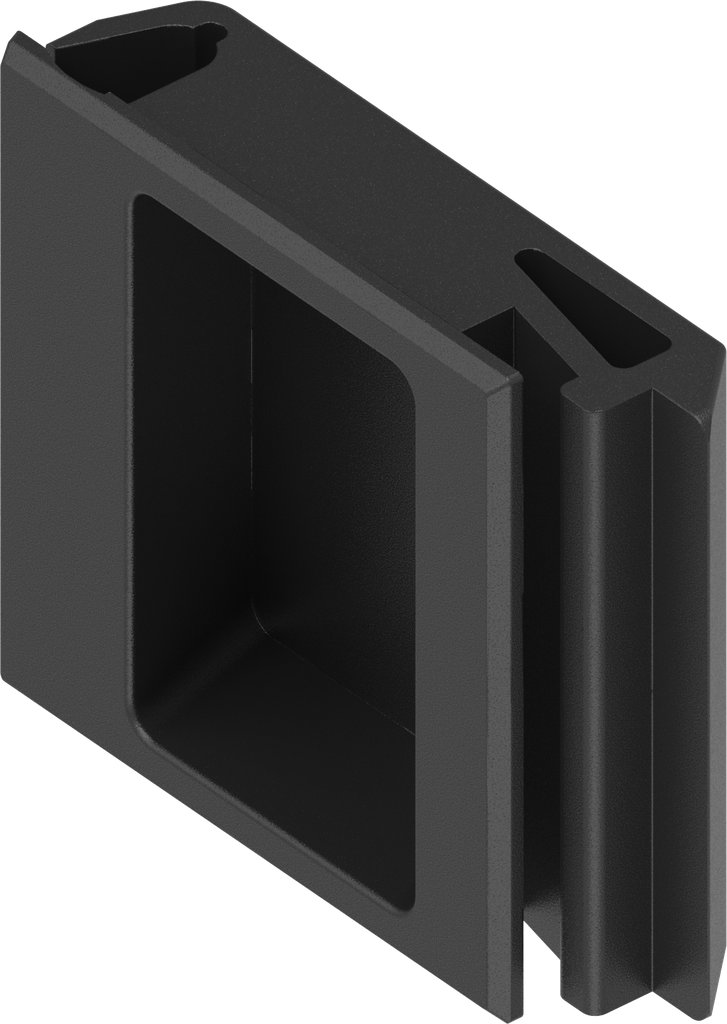

Snap lock, clip-in, Polyamide black; 1091-U115-01

https://www.emka.com/products/1091-u115-01 https://www.emka.com/web/image/product.template/62144/image_1920?unique=a6ae3e6

for Ts = 1.2 - 1.6 mm


    This combination does not exist.

    Inside the sealing Outside the sealing Left Right


    Akeneo Note:

    Lockable e.g. with small quarter turns of Program 1022

    Internal Reference: 1091-U115-01
    Product Type: Other latch
    Program: 1091
    Catalog sheet: 8A-420
    Material of the module : Polyamide
    Surface of the module: black

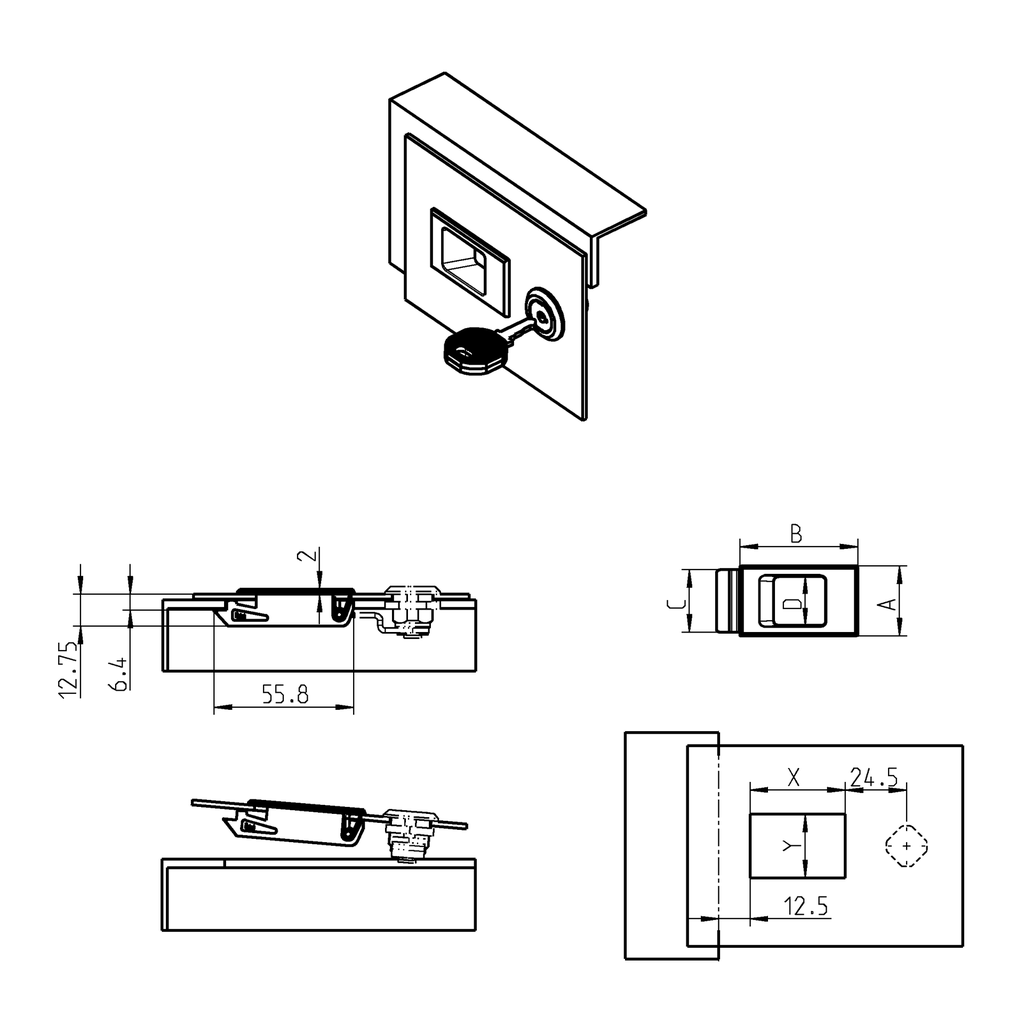

    Dimension A: 47 mm
    Dimension B: 47 mm
    Dimension C: 44 mm
    Dimension D: 39.50 mm
    Mounting Positions : Inside the sealing,Outside the sealing
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 1.60 mm
    Door Version : Left,Right
    Lock Type: Snap lock
    Dimension X: 38 mm
    Dimension Y: 44.50 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
