Heavy duty latch with zinc die shaft, Polyamide GF black
Heavy duty latch with zinc die shaft, Polyamide GF black
Snap lock, clip-in, Polyamide GF signal white
Snap lock, clip-in, Polyamide GF signal white

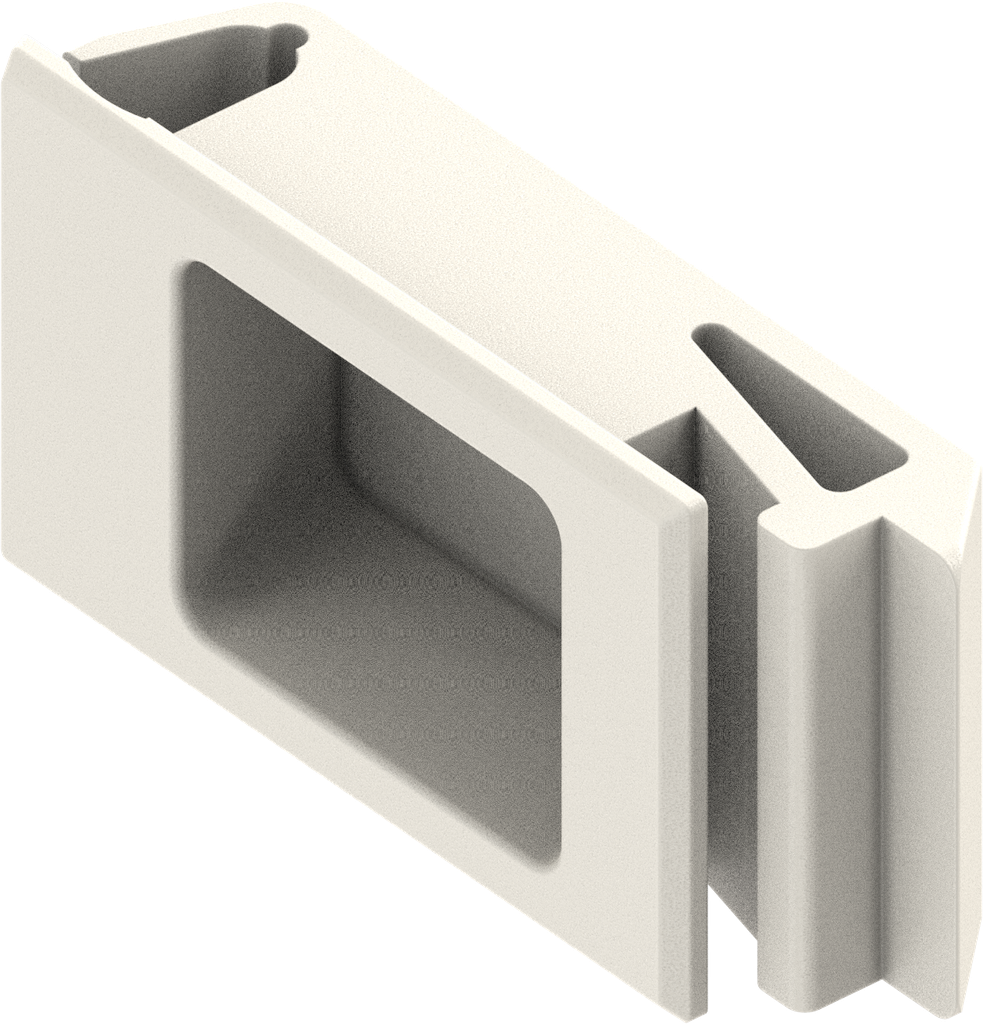

Snap lock, clip-in, Polyamide GF pure white; 1091-U114-01HA

https://www.emka.com/products/1091-u114-01ha-snap-lock-clip-in-polyamide-gf-pure-white-214980 https://www.emka.com/web/image/product.template/214980/image_1920?unique=a6dfb11

for Ts = 1.2 - 1.6 mm

    This combination does not exist.

    Inside the sealing Outside the sealing Left Right
    Internal Reference: 1091-U114-01HA
    Barcode: 1091-u00114-00001ha
    Product Type: Other latch
    Program: 1091
    Material of the module : Polyamide GF
    Surface of the module: pure white

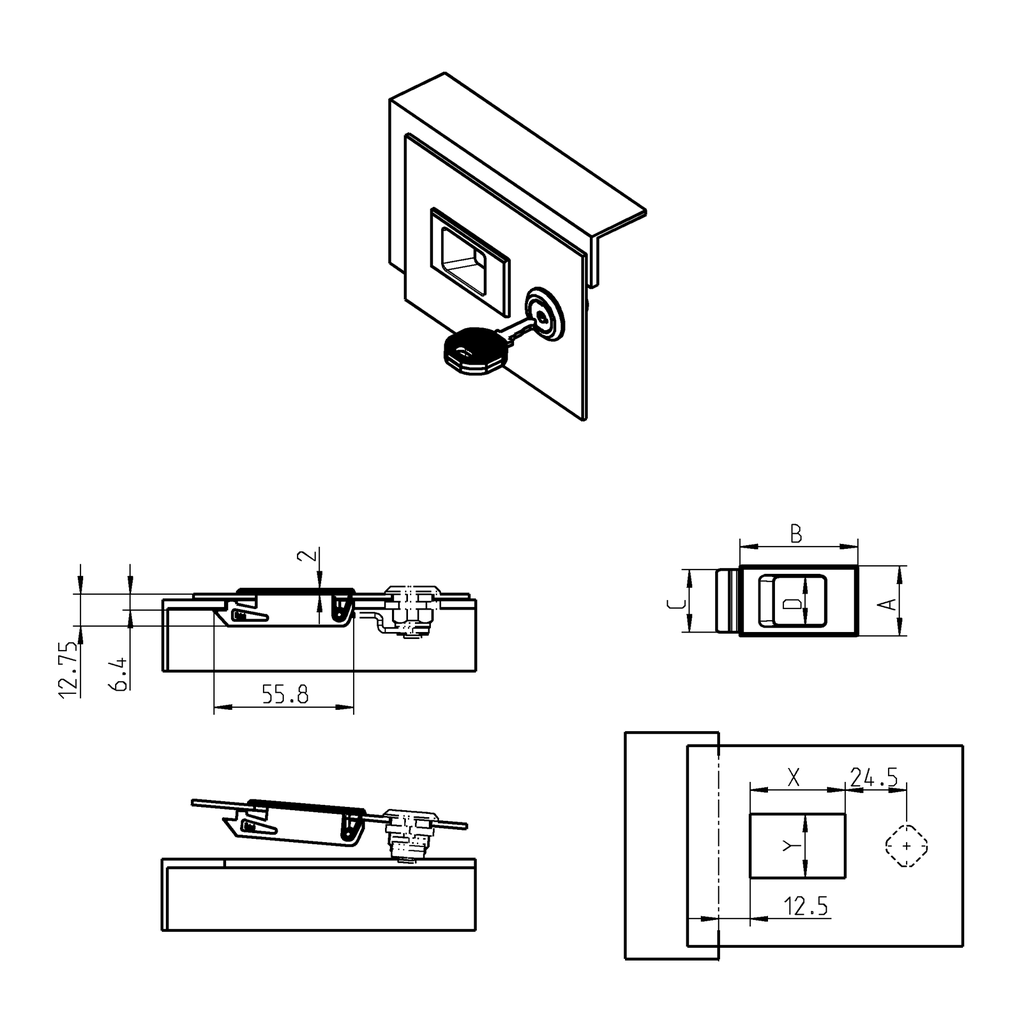

    Dimension A: 28 mm
    Dimension B: 47 mm
    Dimension C: 25 mm
    Dimension D: 20 mm
    Mounting Positions : Inside the sealing,Outside the sealing
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 1.60 mm
    Door Version : Left,Right
    Lock Type: Snap lock
    Dimension X: 38 mm
    Dimension Y: 25.50 mm
