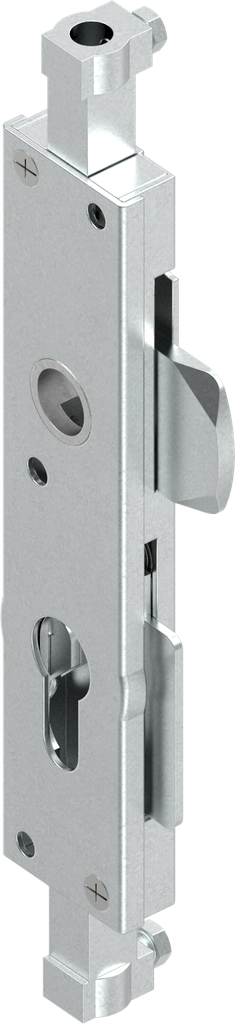

Rod control, right version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated
Rod control, right version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated
120° Hinge, Steel zinc-plated and raw
120° Hinge, Steel zinc-plated and raw

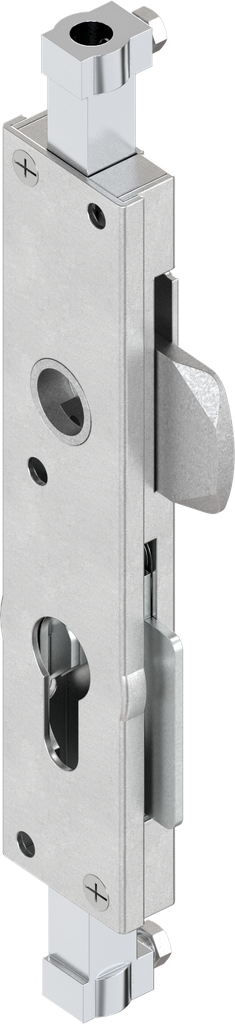

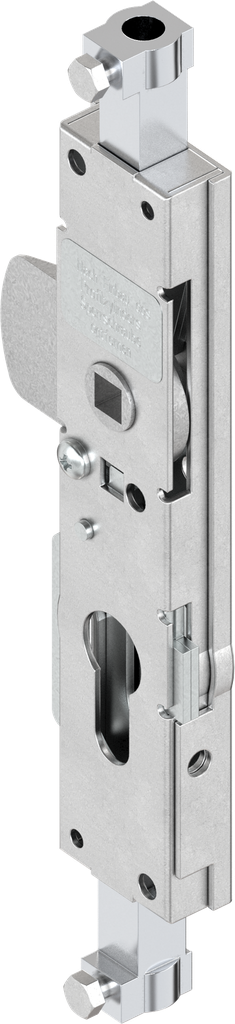

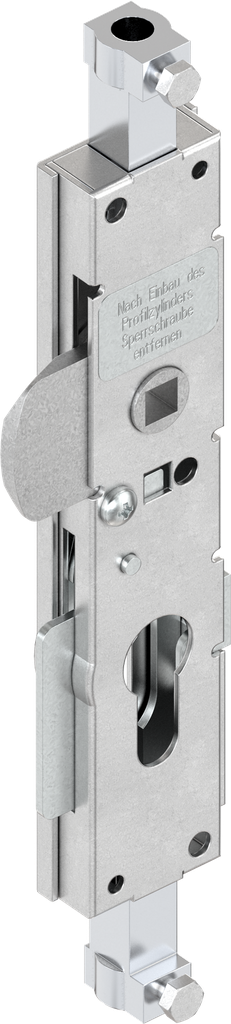

Rod control, left version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated; 1068-U2

https://www.emka.com/products/1068-u2 https://www.emka.com/web/image/product.template/61788/image_1920?unique=be44c73

Locking systems for high loads


    This combination does not exist.

    Inside the sealing Left


    Internal Reference: 1068-U2
    Product Type: Rod control
    Program: 1068
    Catalog sheet: 2B-140
    Material of the module : Steel
    Surface of the module: zinc-plated
    Dimention A: A 20,A 26
    Rod: Round rod
    Connection rod mount: Rod holder Ø8 x 25
    Mounting Positions : Inside the sealing
    Lock for higher loads: Yes
    Door Version : Left
    No Specifications
    View All Products
    Insert
    Housing

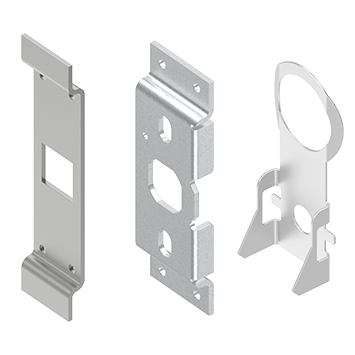

    Rod control accessories

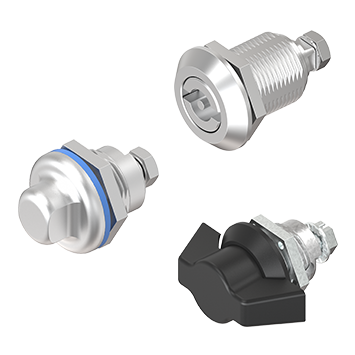

    Quarter turn
