180° Hinge, Zinc die raw
180° Hinge, Zinc die raw

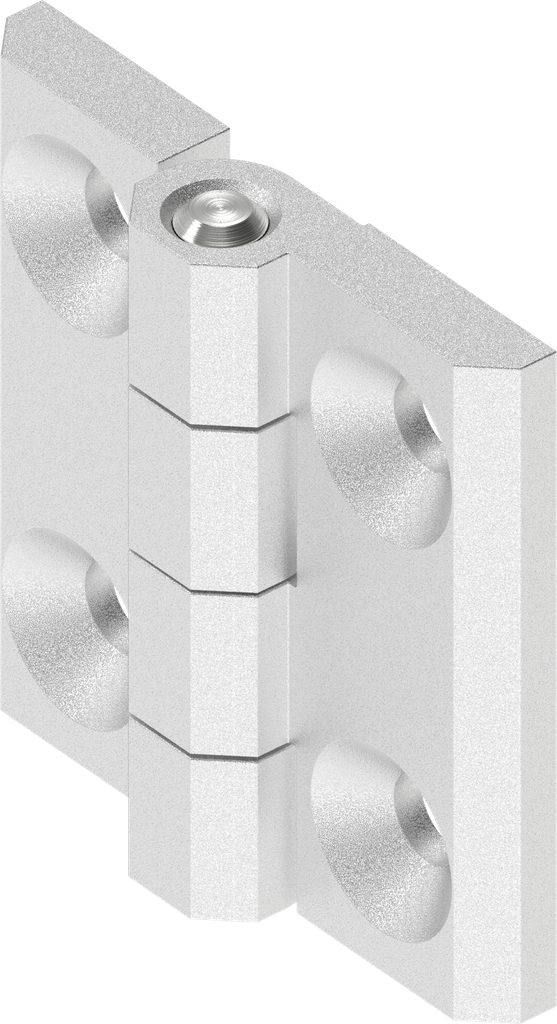

180° Hinge, Stainless steel AISI 316 bright polished
180° Hinge, Stainless steel AISI 316 bright polished

180° Hinge, Stainless steel AISI 316 bright polished; 1056-U9-PPPH

https://www.emka.com/products/1056-u9-ppph https://www.emka.com/web/image/product.template/213214/image_1920?unique=8783677

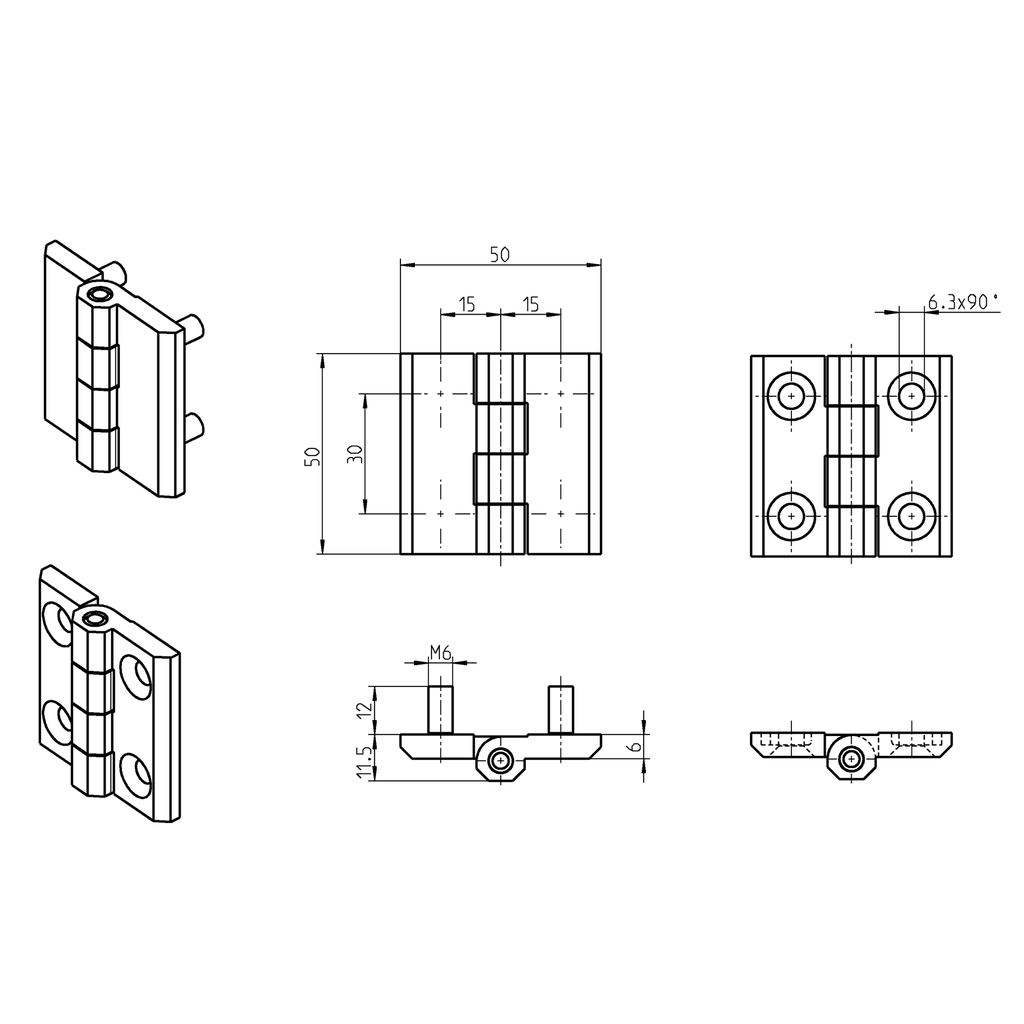

Dimension 50 x 50 mm


    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right


    Internal Reference: 1056-U9-PPPH
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-200
    Material of the module : Stainless steel AISI 316
    Surface of the module: bright polished
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M6x...
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    View All Products
    2D nut
    Here you can find the product data sheets and CAD files of this product
