180° Hinge, Zinc die ivory white powder-coated
180° Hinge, Stainless steel AISI 316 bright polished

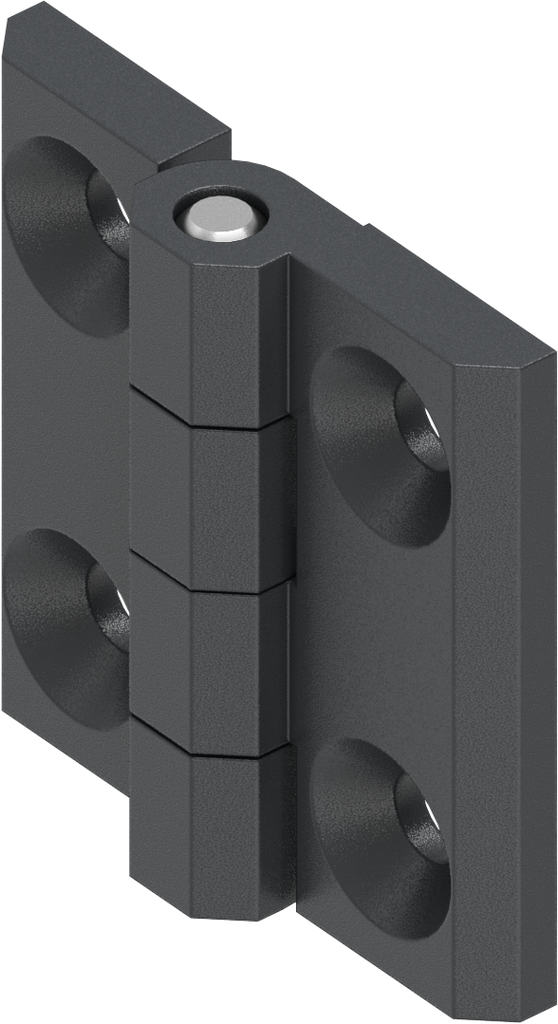

180° Hinge, Stainless steel AISI 316 graphite black powder-coated; 1056-U9-PHAE

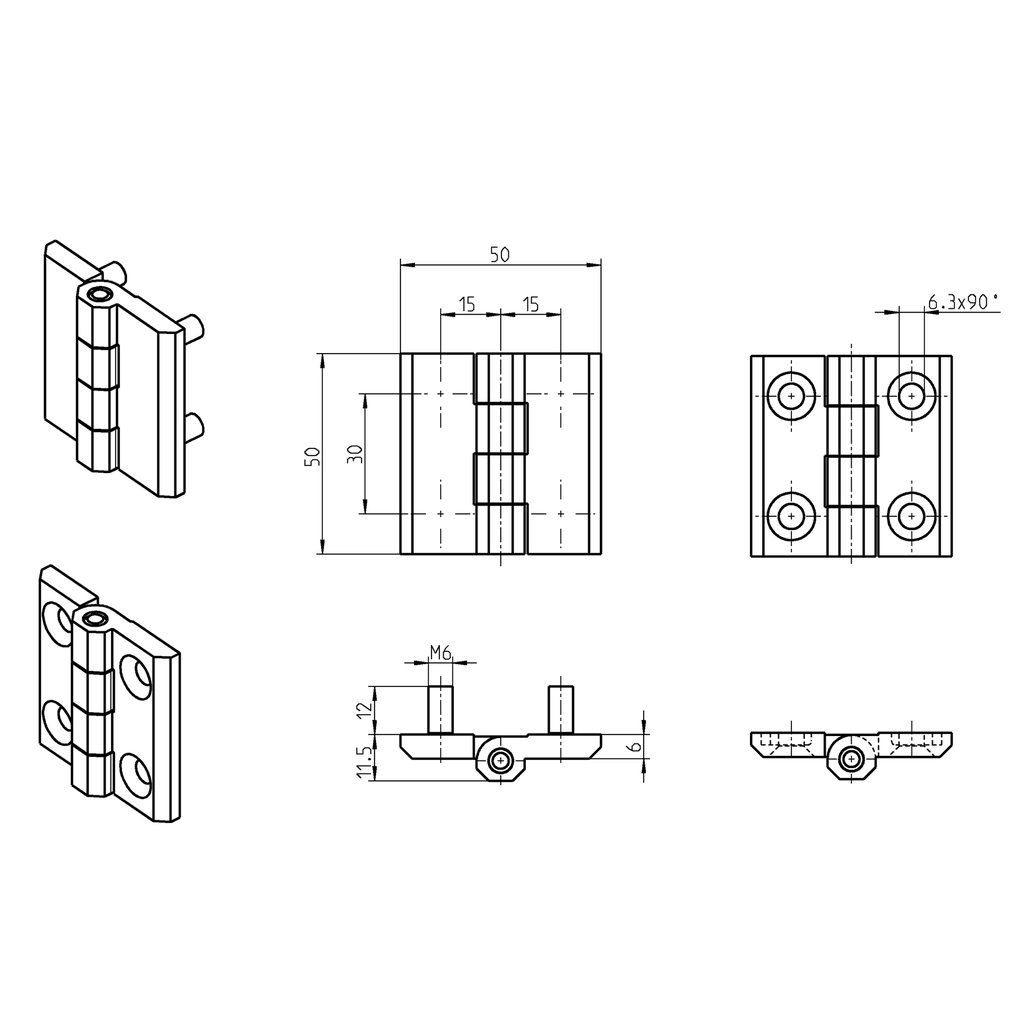

Dimension 50 x 50 mm
Internal Reference:
1056-U9-PHAE
Barcode:
1056-U00009-000PHAE
Product Type:
Hinge
Material:
Stainless steel AISI 316
Program:
1056
Surface:
graphite black powder-coated
Door return variable:
Yes
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for all standard countersunk screws M6x...
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
