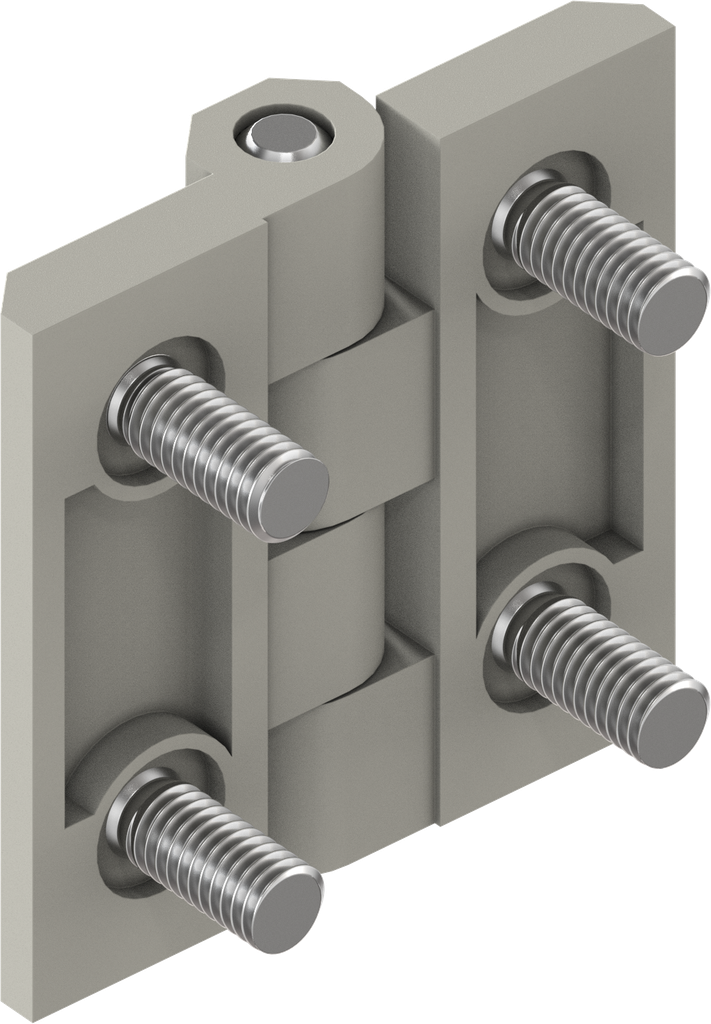

180° Hinge, Zinc die black powder-coated
180° Hinge, Zinc die black powder-coated
180° Hinge, Zinc die agate grey powder-coated
180° Hinge, Zinc die agate grey powder-coated

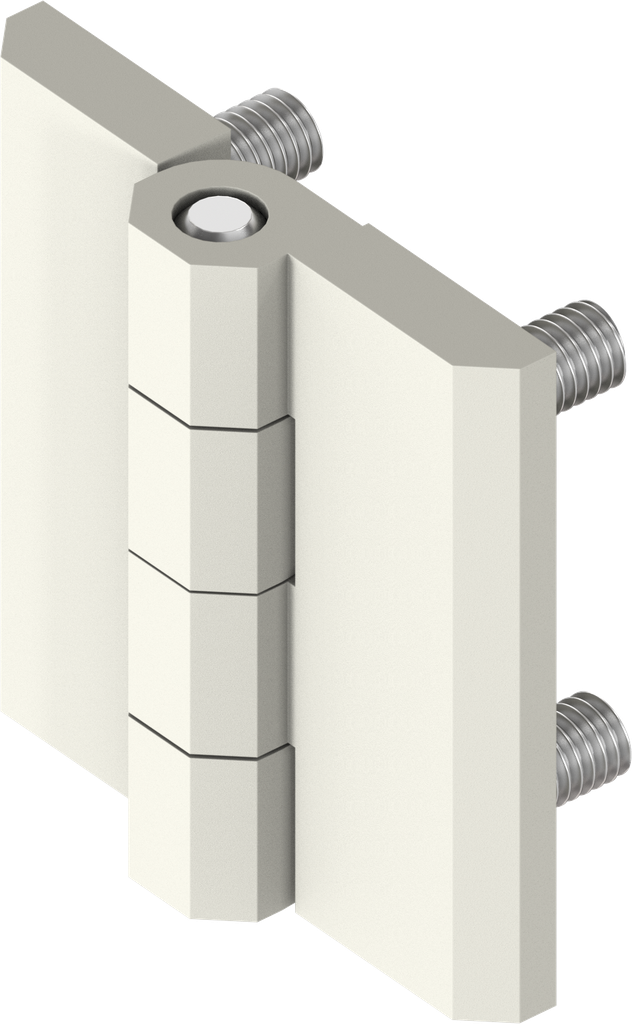

180° Hinge, Zinc die off-white powder-coated; 1056-U8-BC

https://www.emka.com/products/1056-u8-bc-180-hinge-zinc-die-off-white-powder-coated-213206 https://www.emka.com/web/image/product.template/213206/image_1920?unique=361839b

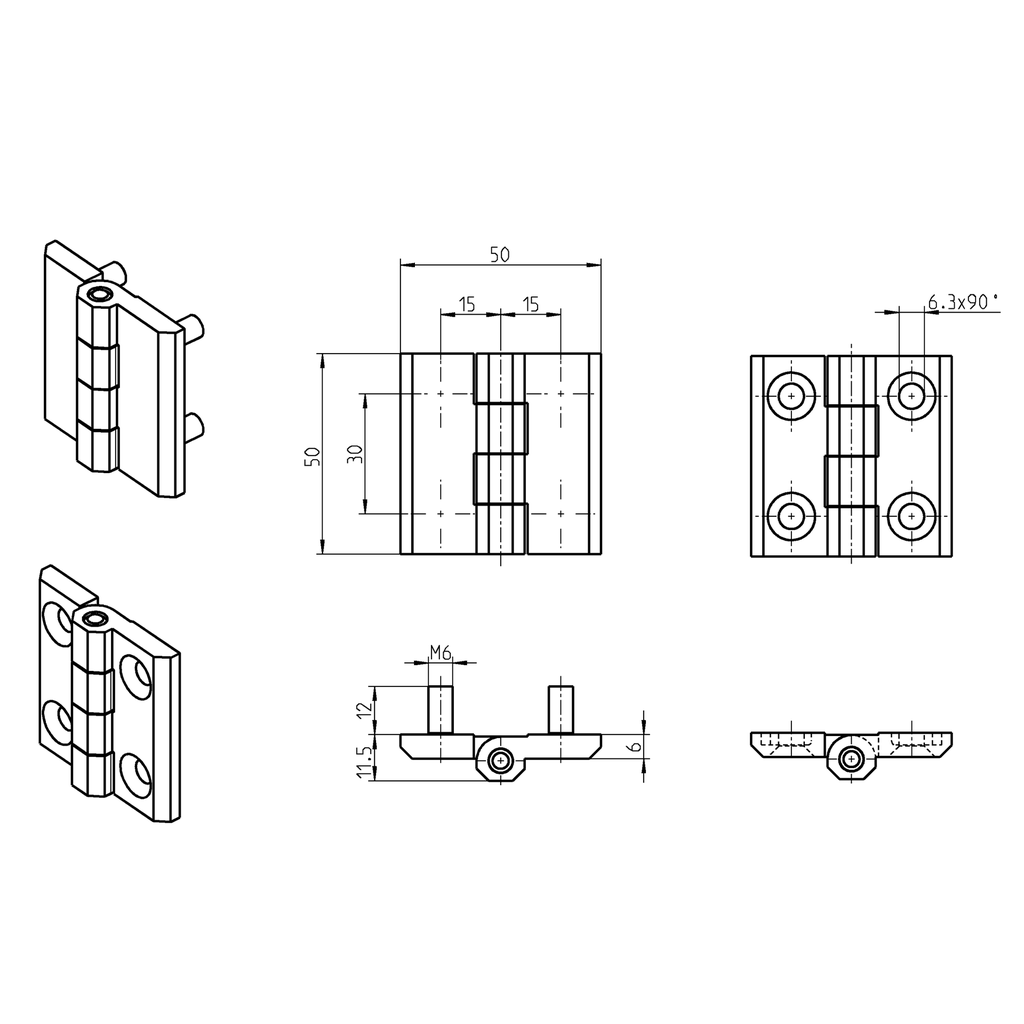

Dimension 50 x 50 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    No stock item, please ask for availability
    Internal Reference: 1056-U8-BC
    Barcode: 1056-U00008-00000BC
    Product Type: Hinge
    Program: 1056
    Material of the module : Zinc die
    Surface of the module: off-white powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Grub Screw: M6 x 12
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
