180° Hinge, right version, Zinc die white aluminium powder-coated
180° Hinge, Zinc die black powder-coated smooth matt
Product information:

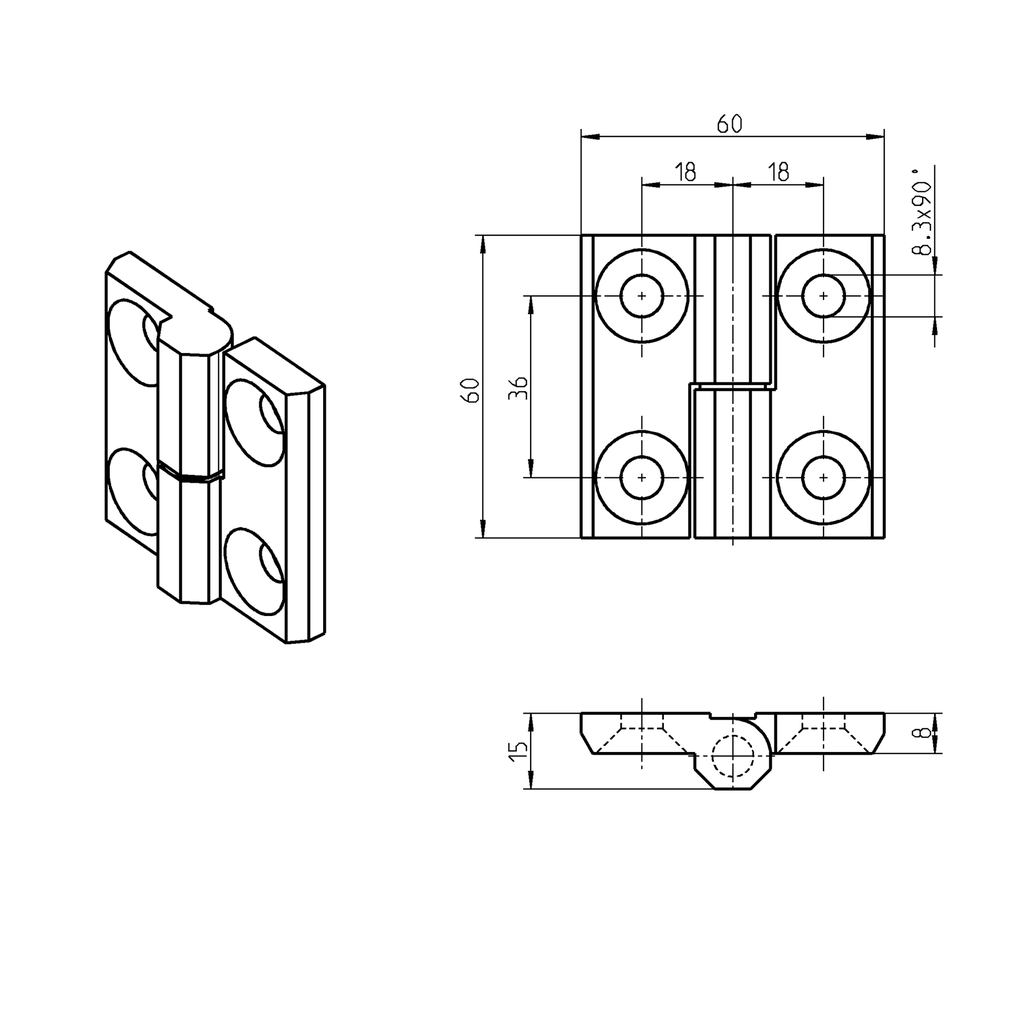

Zeichnung:
right-hand version shown
left-hand version mirror inverted
Internal Reference:
1056-U58-FV
Barcode:
1056-U00058-00000FV
Product Type:
Hinge
Program:
1056
Material of the module :
Zinc die
Surface of the module:
white aluminium powder-coated
Door return variable:
Yes
Detachable:
without tools
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for all standard countersunk screws M8x...
Door position:
concealed
Door Version :
Left
Captive pen:
Yes
