180° Hinge, Zinc die off-white powder-coated
180° Hinge, Zinc die off-white powder-coated
180° Hinge, Stainless steel AISI 316 pickled and passivated
180° Hinge, Stainless steel AISI 316 pickled and passivated

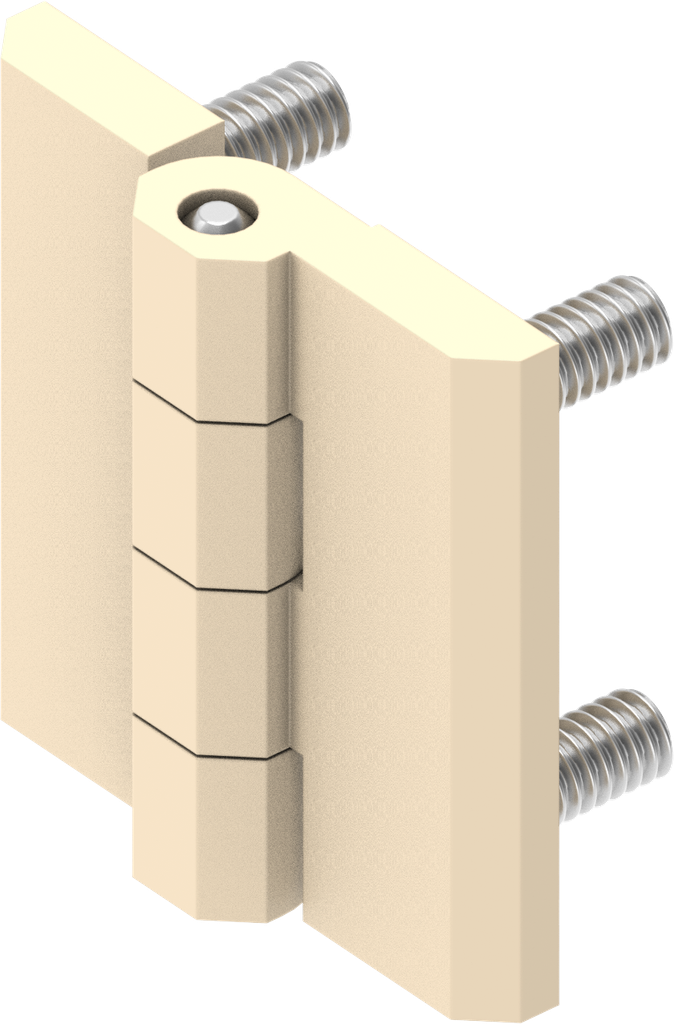

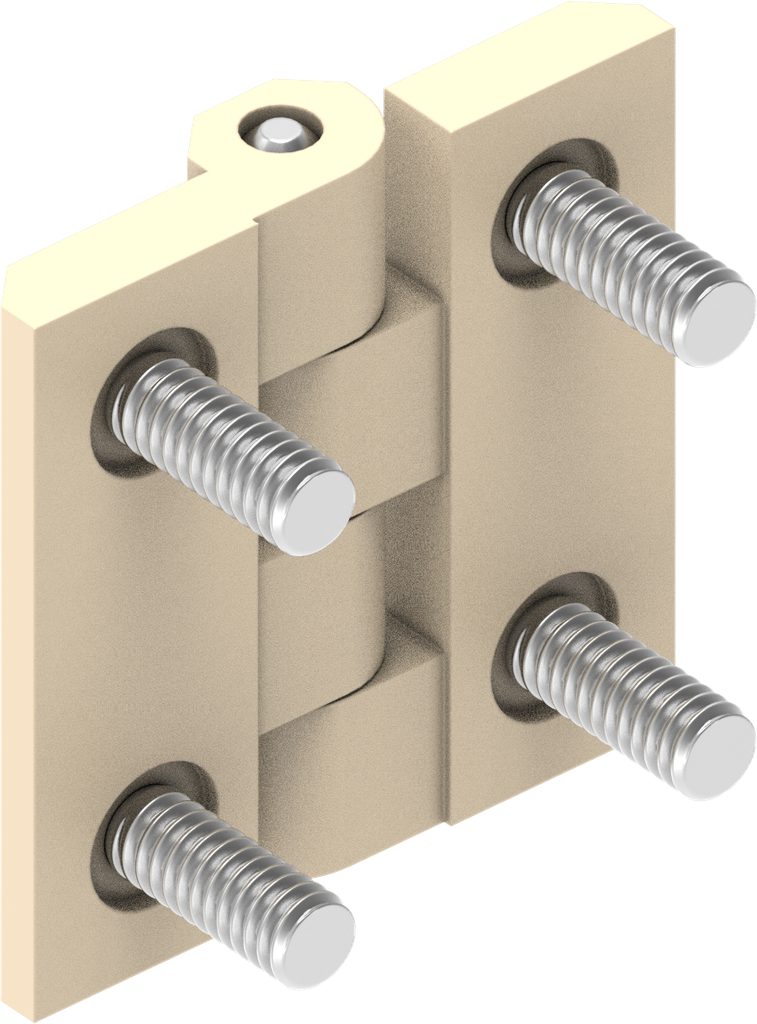

180° Hinge, Zinc die ivory white powder-coated; 1056-U4-HB

https://www.emka.com/products/1056-u4-hb-180-hinge-zinc-die-ivory-white-powder-coated-213193 https://www.emka.com/web/image/product.template/213193/image_1920?unique=17a1761

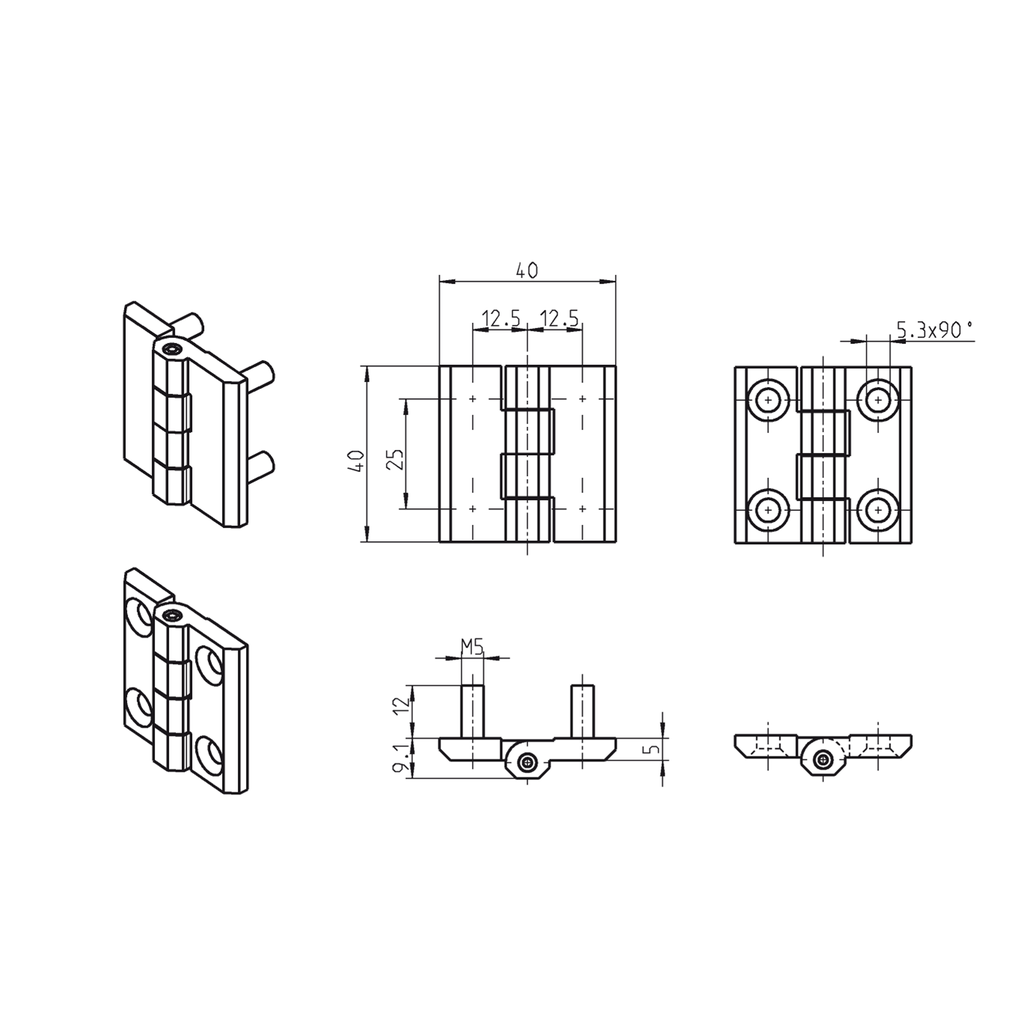

Dimension 40 x 40 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    No stock item, please ask for availability
    Internal Reference: 1056-U4-HB
    Barcode: 1056-U00004-00000HB
    Product Type: Hinge
    Program: 1056
    Material of the module : Zinc die
    Surface of the module: ivory white powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Grub Screw: M5 x 12
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
