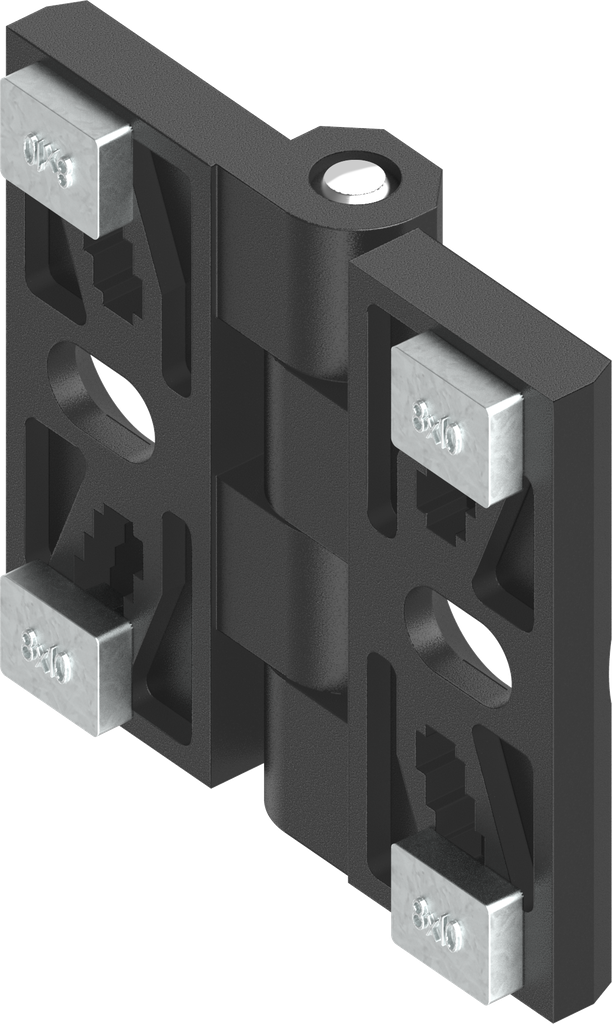

180° Hinge, Zinc die black powder-coated
180° Hinge, Zinc die black powder-coated

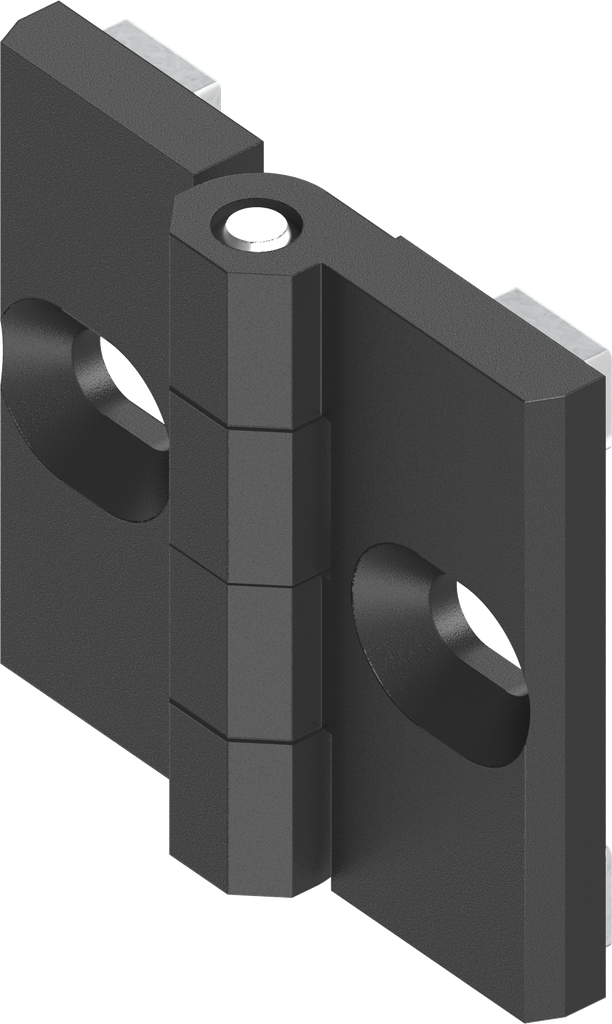

180° Profile rail hinge, Zinc die black powder-coated
180° Profile rail hinge, Zinc die black powder-coated

180° Profile rail hinge, Zinc die black powder-coated; 1056-U21

https://www.emka.com/products/1056-u21 https://www.emka.com/web/image/product.template/61722/image_1920?unique=be44c73

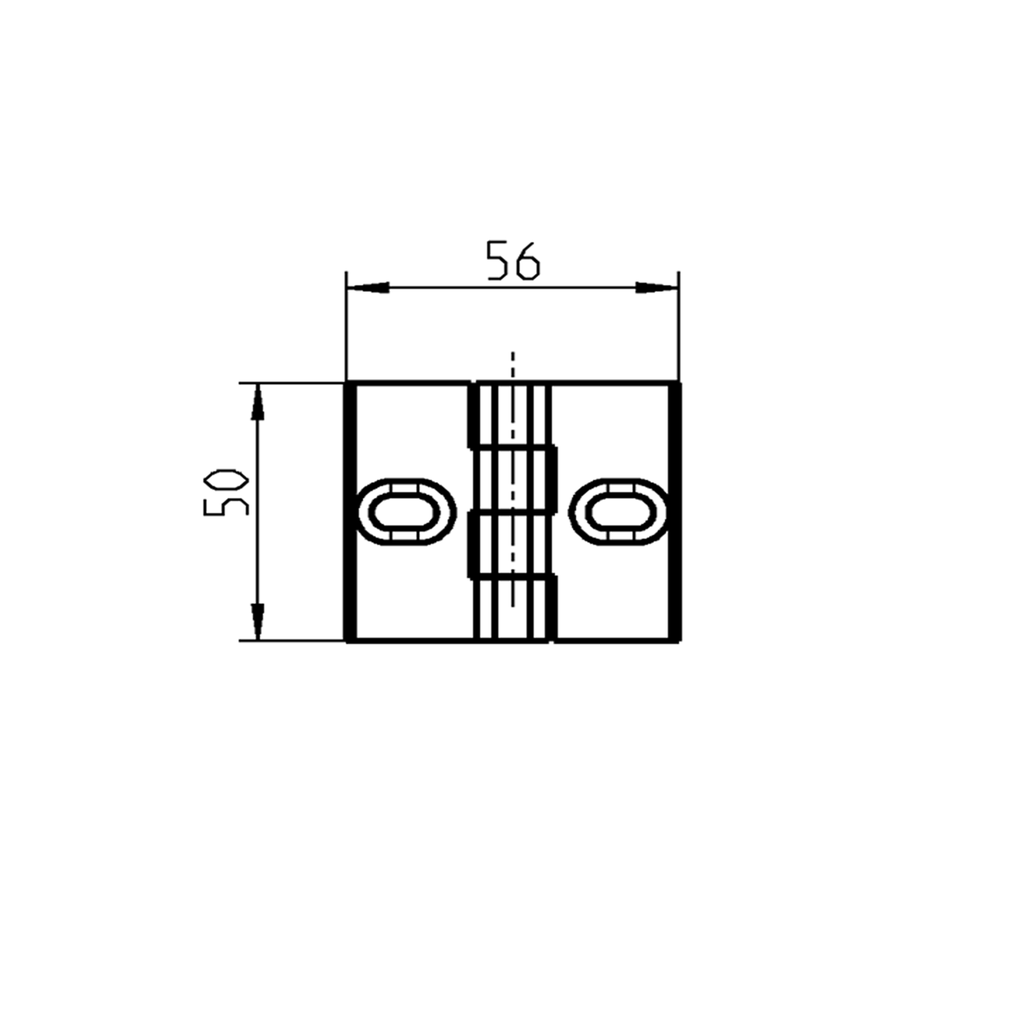

Dimension 50 x 50 mm with plugs 8 x 10 mm


    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right


    Product Benefits:

    Can be used for different profiles

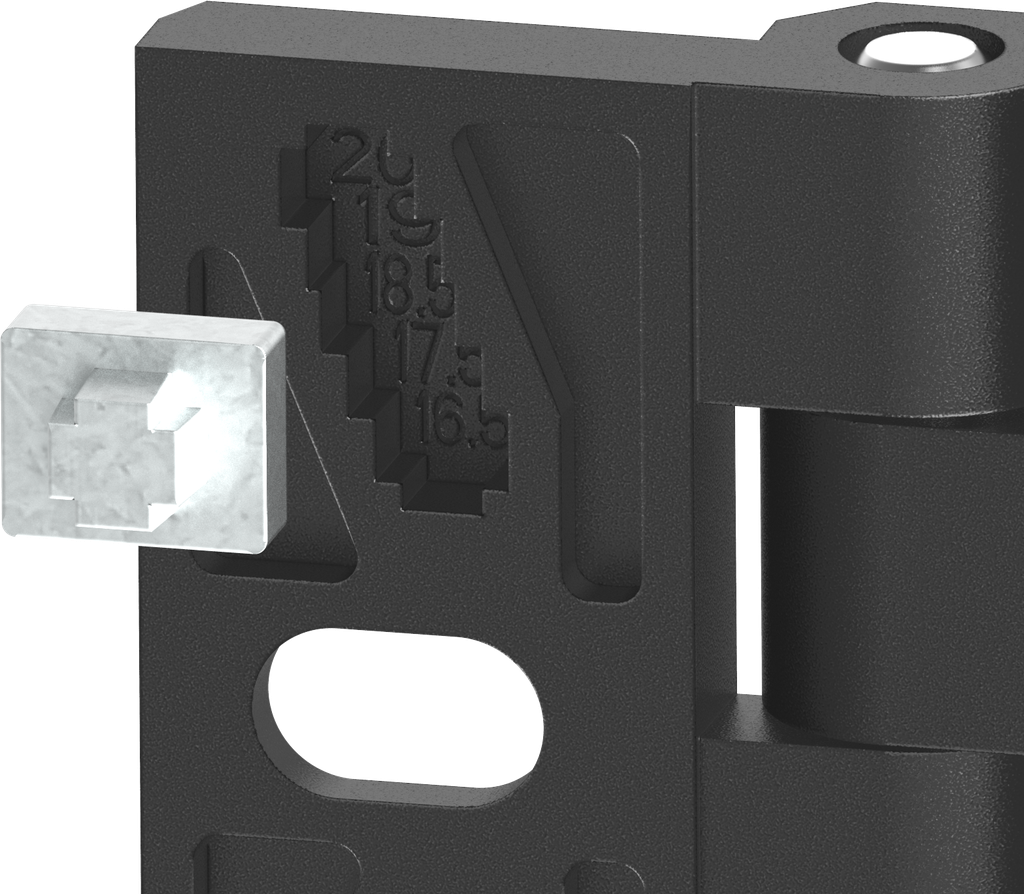

    15 different distances (dimension A) possible by changing the locations of the plugs

    Akeneo Note:

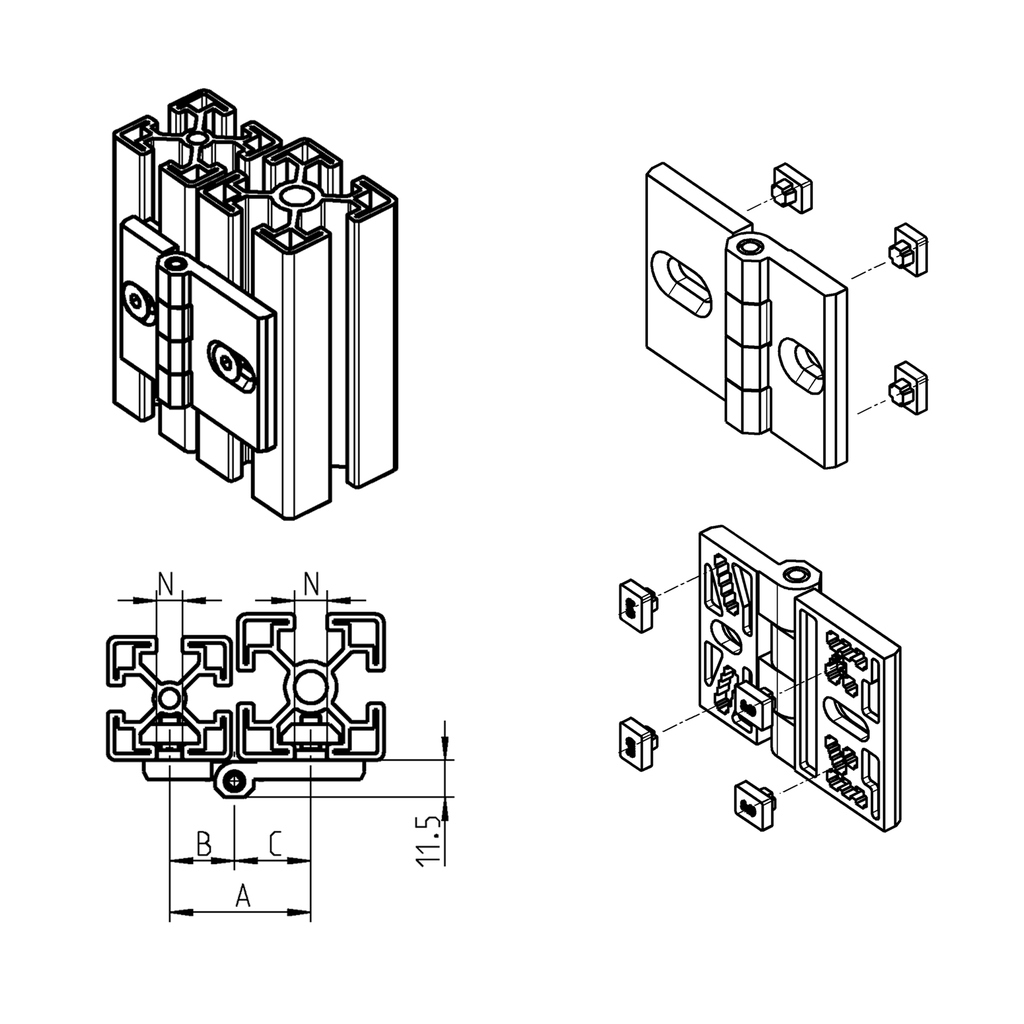

    A = 33 to 40 mm
    B = 16.5 to 20 mm
    C = 16.5 to 20 mm

    Internal Reference: 1056-U21
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-230
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Max Opening Angle: 180°
    Hinge for profiles: Yes
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M6x...
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
