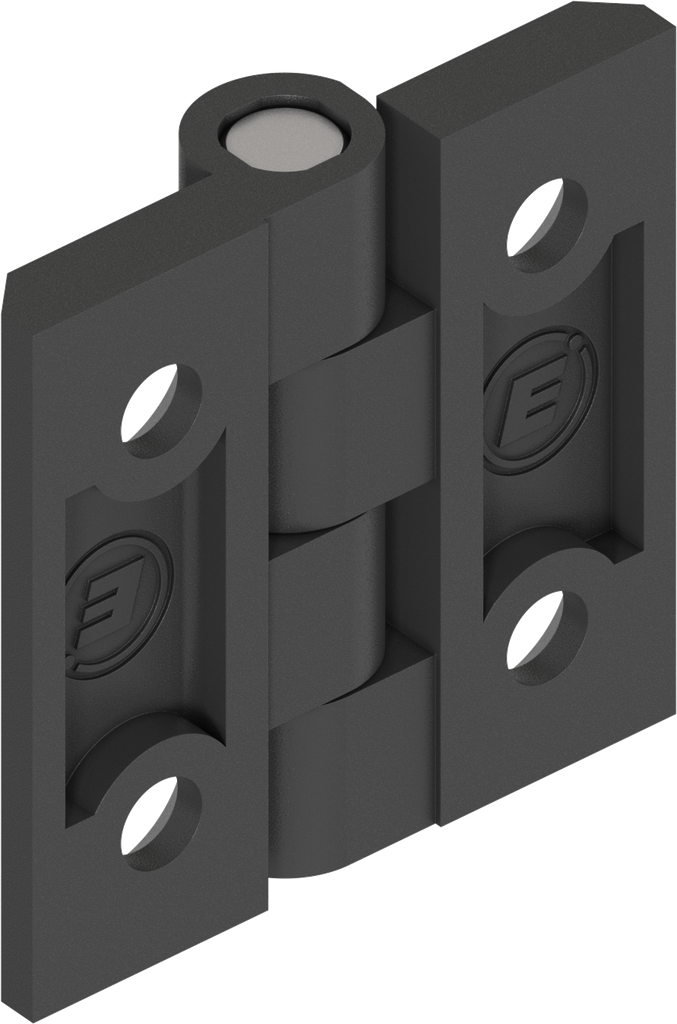

180° Hinge without hinge pin, Polyamide GF black
180° Torque hinge 2 Nm, Zinc die pure white powder-coated smooth

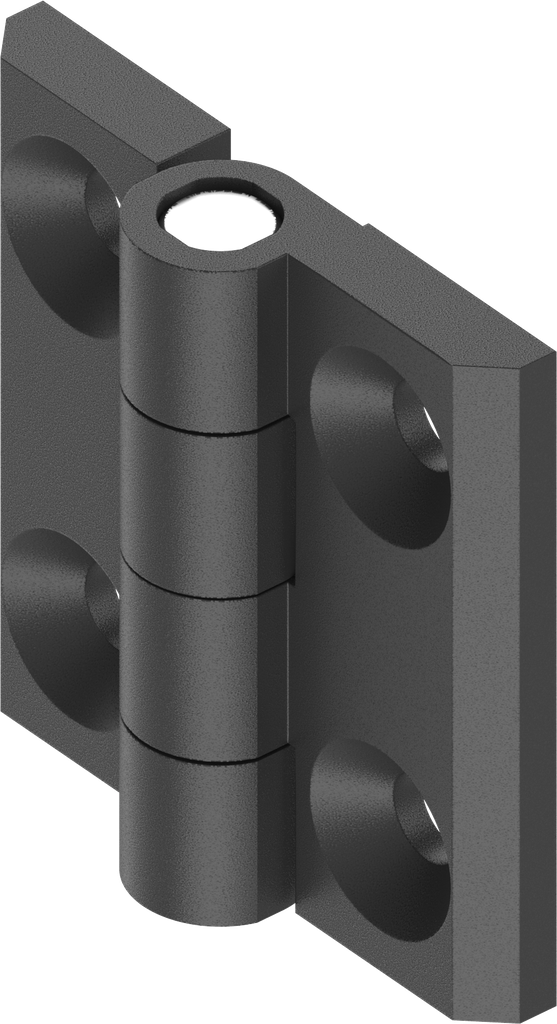

180° Torque hinge 2 Nm, Zinc die black powder-coated; 1056-U110
Dimension 50 x 50 mm
No stock item, please ask for availability
Product Benefits:
- Holds any position continuously at adequate load
- Constant torque across 180° adjustment range
- Same torque while opening and closing
- Compatible with all hinges of the 1056 Program with identical cut out
- Can replace door stops, cover stays or gas springs depending on installation location
Product information:
Design / Calculation:
The number of hinges for covers depends on the size and weight of the cover. We are pleased to help you with the dimensioning of the hinges on request.
Torque hinge
The hinge can be set continuously in any position. There it remains in the same position. The torque is the same during opening and closing.
Technical data:
10,000 cycles at 180° open-close.
Also available with 1.0 Nm on request.
Akeneo Note:
Nm = 2.0
Tolerance ± 25 %
Internal Reference:
1056-U110
Barcode:
1056-u00110-0000000
Product Type:
Hinge
Program:
1056
Catalog sheet:
4B-180
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Type of attachment to the frame:
screw-on from inside
Type of fastening on the door:
screw-on from inside
Torque hinge:
Yes
Hole pattern required in the door:
Bore holes in the door
Maximum torque:
up to ~ 2 Nm
Max Opening Angle:
180°
Cabinet type :
In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for all standard countersunk screws M6x...
Door position:
concealed
Door Version :
Left,Right
No Specifications
