180° Hinge without hinge pin, Polyamide GF black
180° Torque hinge 2 Nm, Zinc die pure white powder-coated smooth

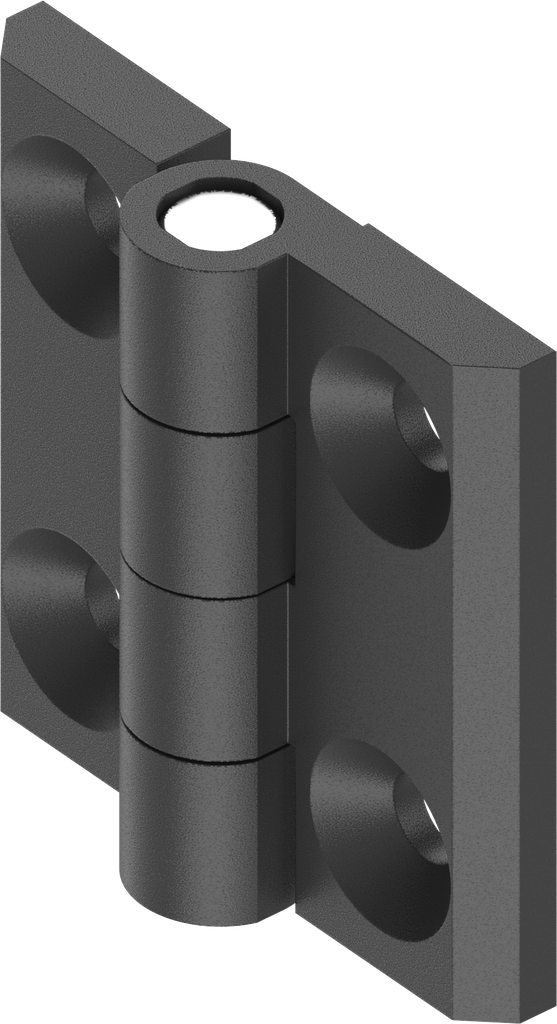

180° Torque hinge 2 Nm, Zinc die black powder-coated; 1056-U110

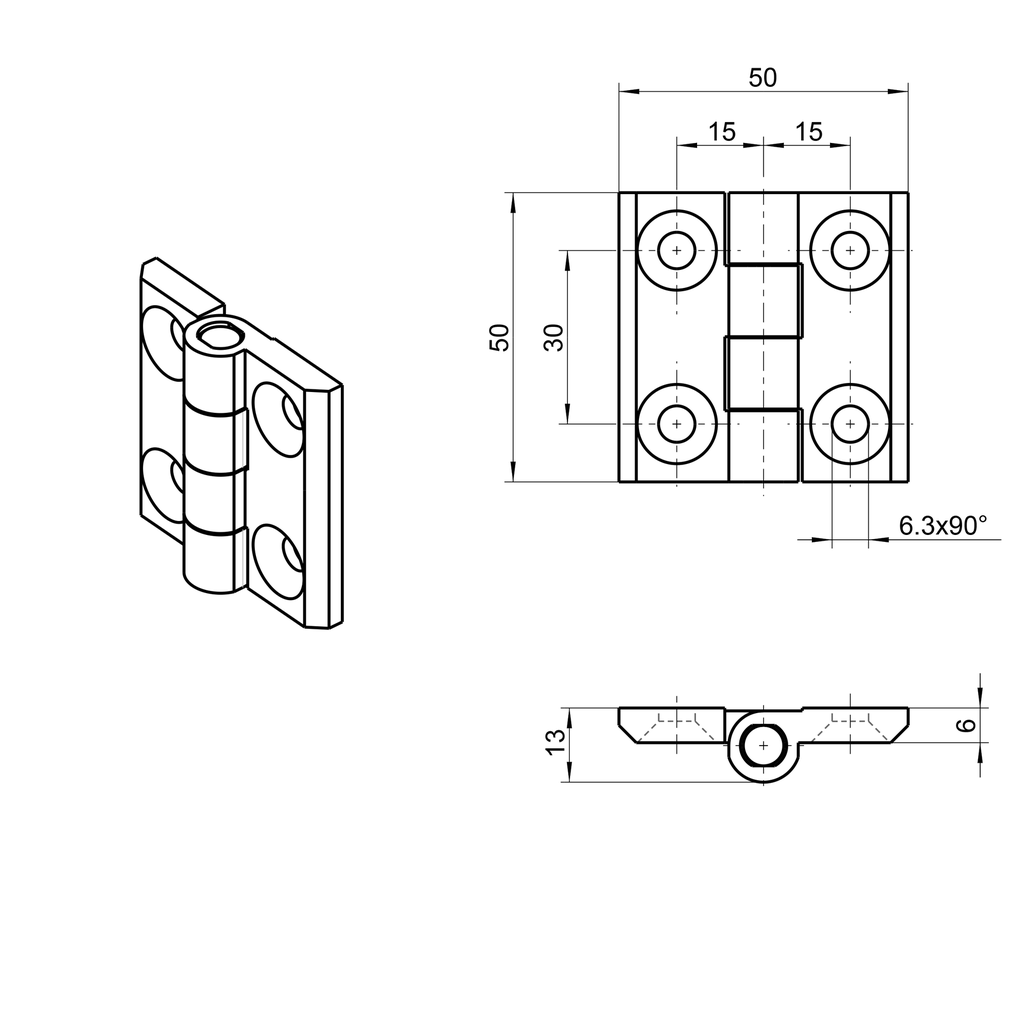

Dimension 50 x 50 mm
No stock item, please ask for availability
Product Benefits:
Maintains any position smoothly under appropriate load Constant torque over a 180° adjustment range Same torque during opening and closing Interchangeable with all hinges from the 1056 program with the same cut out Can replace door stops, cover stays, or gas springs depending on the installation locationProduct information:
Design / Calculation: The number of hinges required for flaps depends on the size and weight of the flap. Upon request, we can assist you with the design of the hinges. Torque hinge The hinge can be adjusted smoothly to any position. There it remains in the same position. The torque is the same when opening and closing. Technical specifications: 10,000 cycles at 180° open-close Also available with 1.0 Nm upon request.Akeneo Note:
Nm = 2.0 Tolerance ± 25%
Internal Reference:
1056-U110
Barcode:
1056-u00110-0000000
Product Type:
Hinge
Program:
1056
Catalog sheet:
4B-180
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Type of attachment to the frame:
screw-on from inside
Type of fastening on the door:
screw-on from inside
Torque hinge:
Yes
Hole pattern required in the door:
Bore holes in the door
Maximum torque:
up to ~ 2 Nm
Max Opening Angle:
180°
Cabinet type :
In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for all standard countersunk screws M6x...
Door position:
concealed
Door Version :
Left,Right
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
