180° 2D Hinge, Zinc die black powder-coated for outdoor use
180° 2D Hinge, Zinc die black powder-coated for outdoor use
180° Hinge, adjustable, Zinc die black powder-coated
180° Hinge, adjustable, Zinc die black powder-coated

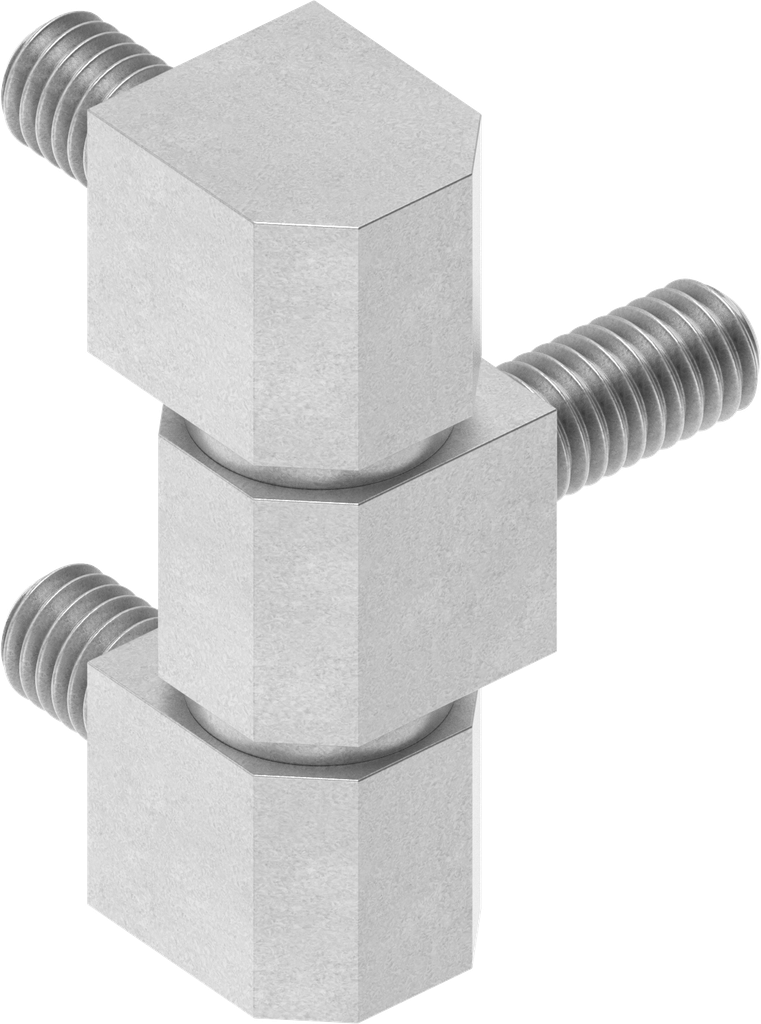

180° Hinge, Steel zinc-plated; 1055-U2-S

https://www.emka.com/products/1055-u2-s https://www.emka.com/web/image/product.template/212662/image_1920?unique=99b6f38

without nuts and serrated washers

    This combination does not exist.

    Single cabinets Left Right
    No stock item, please ask for availability
    Internal Reference: 1055-U2-S
    Barcode: 1055-U00002-000000S
    Product Type: Hinge
    Program: 8031
    Material of the module : Steel
    Surface of the module: zinc-plated
    Door return variable: Yes
    Execution: three-piece
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
