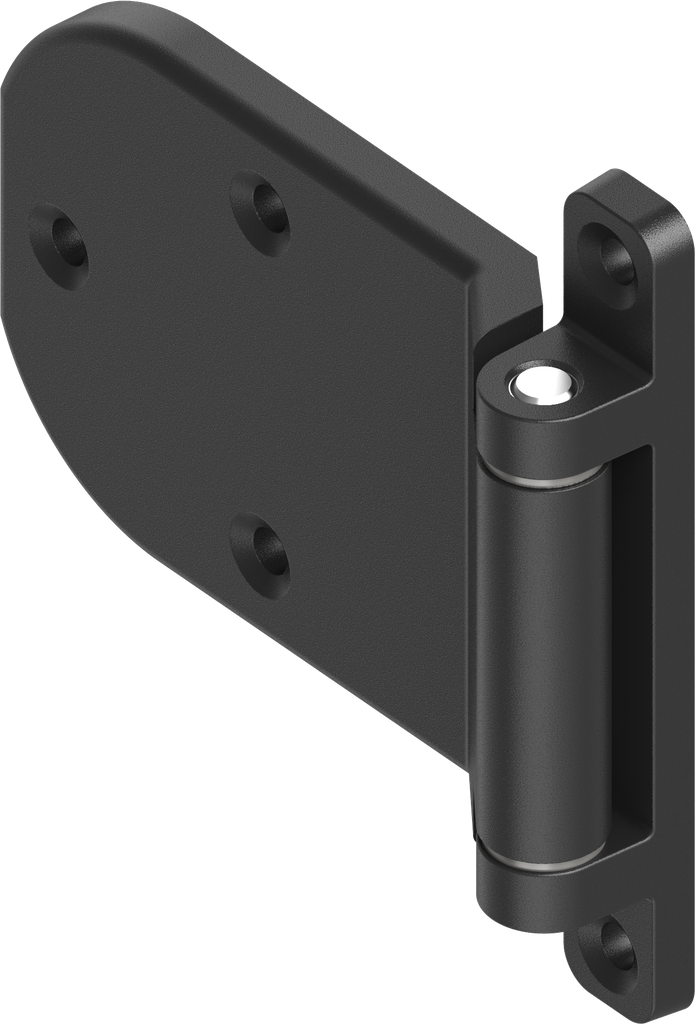

180° Hinge, Zinc die black powder-coated; 1054-U38

https://www.emka.com/products/1054-u38 https://www.emka.com/web/image/product.template/61566/image_1920?unique=e5d56c8


    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right


    Product information:

    Application: suitable for sandwich doors

    Internal Reference: 1054-U38
    Product Type: Hinge
    Program: 1054
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Type of attachment to the frame: rivetable
    Type of fastening on the door: rivetable
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: concealed
    Door Version : Left,Right
    No Specifications
    No Matching Products

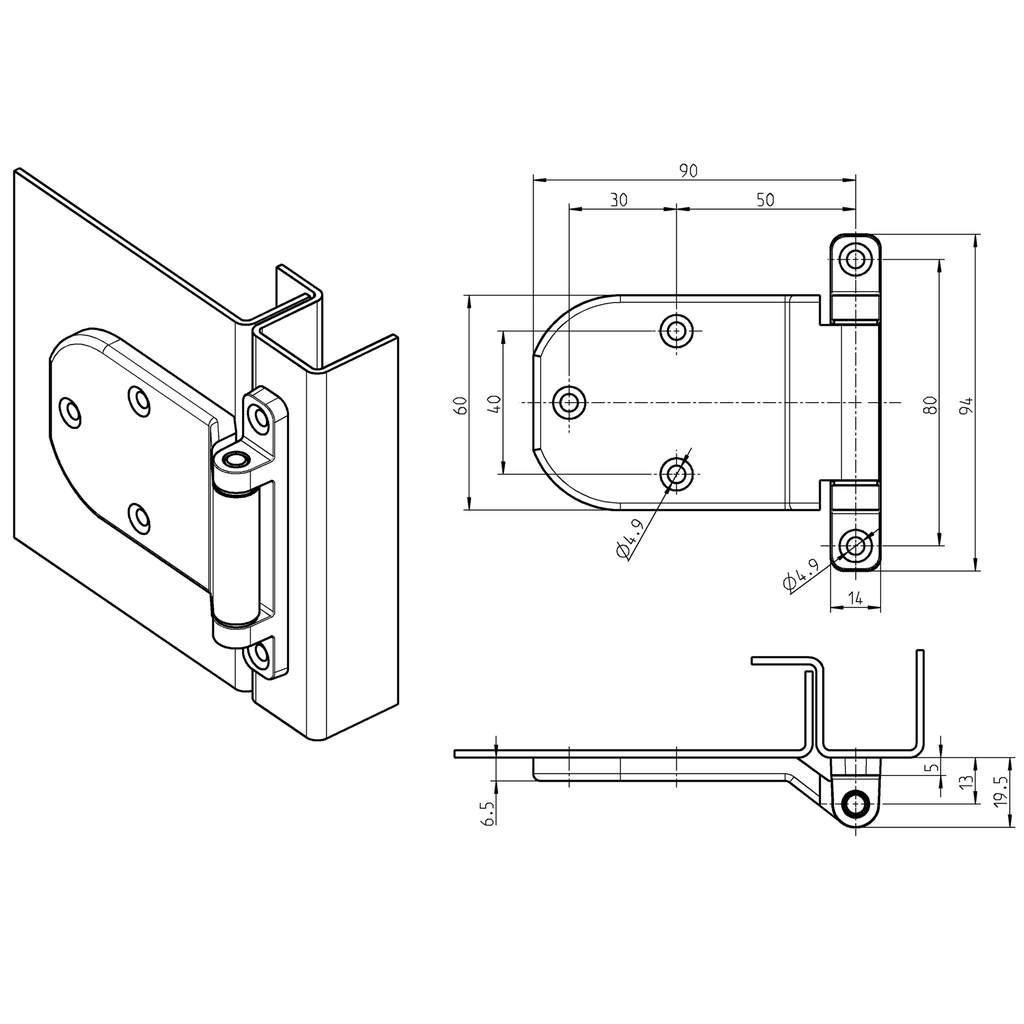

    Here you can find the product data sheets and CAD files of this product
