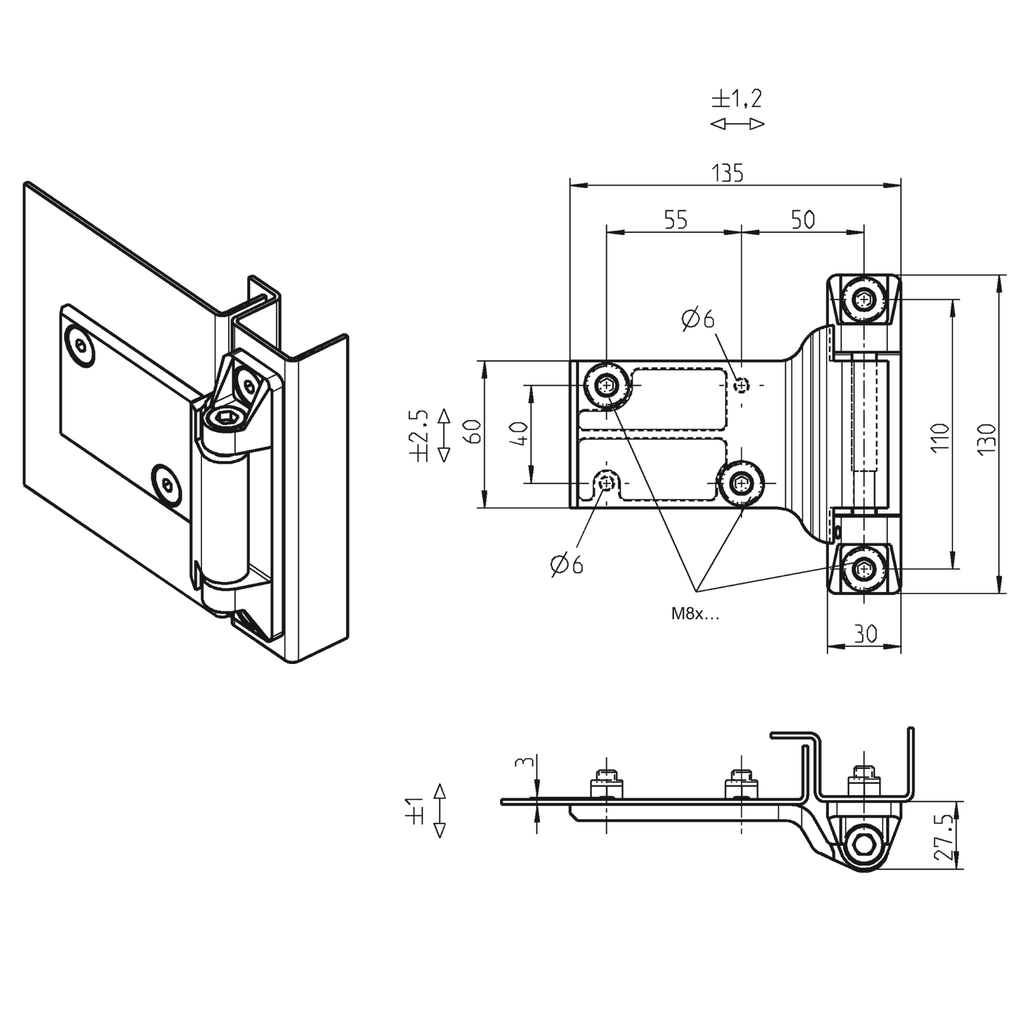

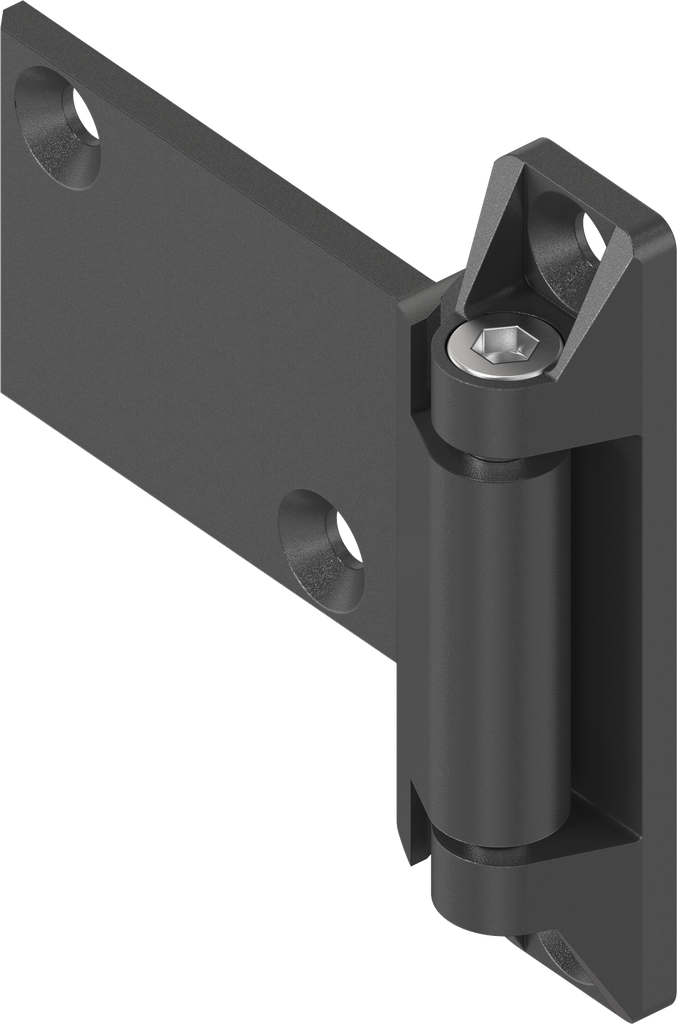

180° 3D Hinge, Zinc die black powder-coated; 1054-U31

https://www.emka.com/products/1054-u31 https://www.emka.com/web/image/product.template/61559/image_1920?unique=f4fbb77


    This combination does not exist.

    Single cabinets In-line cabinets with single door Right


    Internal Reference: 1054-U31
    Product Type: Hinge
    Program: 1054
    Catalog sheet: 4B-260
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Adjustable : 3D
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door
    Countersinking for standard countersunk screws: Countersink for countersunk screw M8x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: concealed
    Door Version : Right
    Thickness: 3 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
