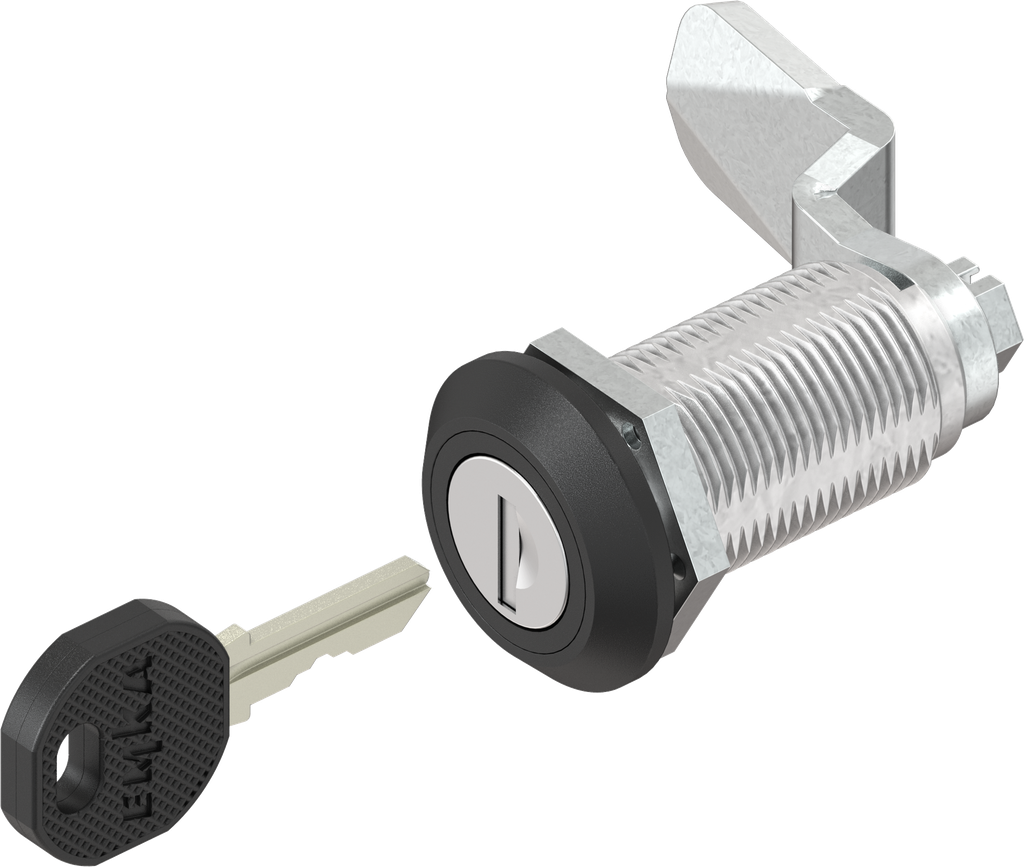

Cylinder quarter turn, keyed EK 333, Polyamide GF black
Safety quarter turn keyed different and insert square female 6, Zinc die black powder-coated

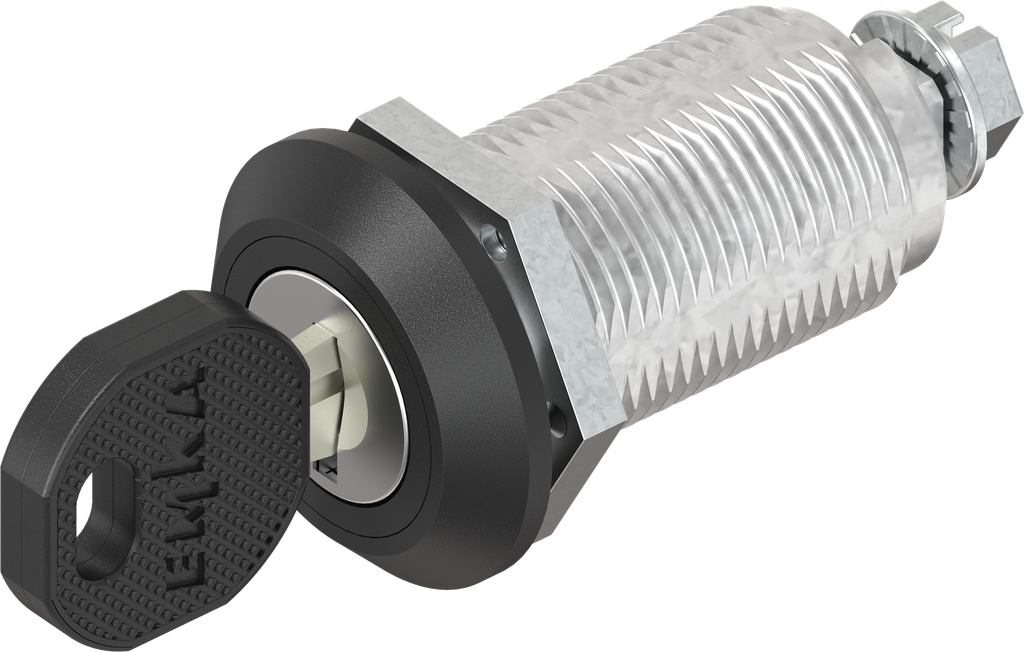

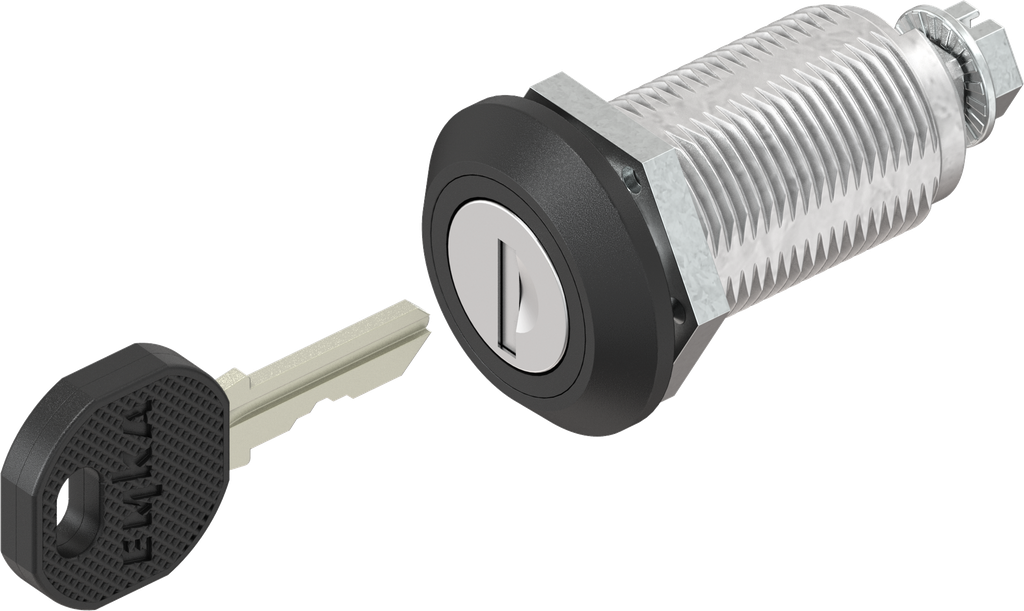

Safety quarter turn keyed EK 333 and insert square female 6, Zinc die black powder-coated; 1048-U22
with earthing nut
Product information:

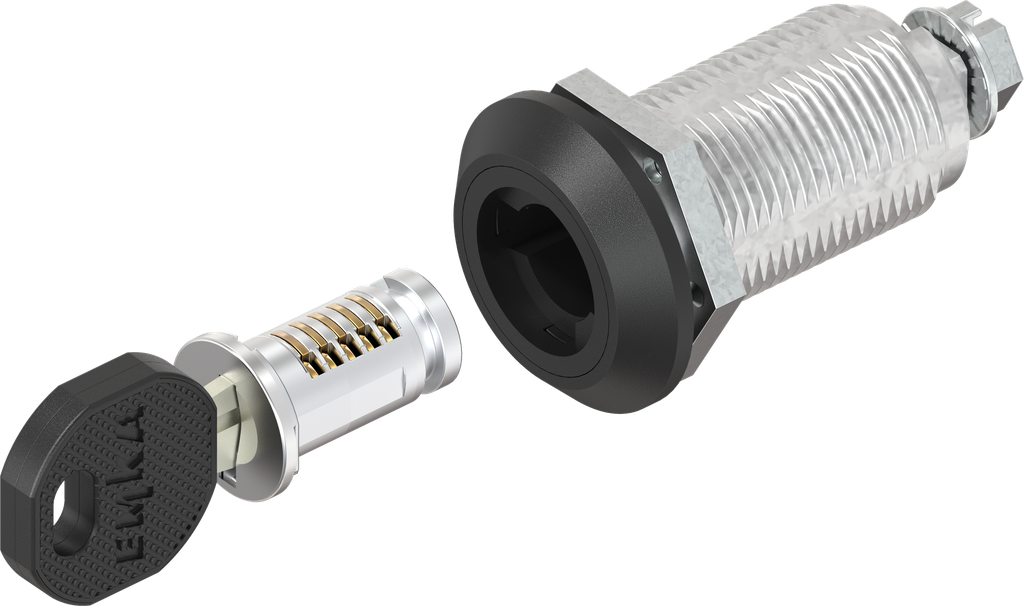

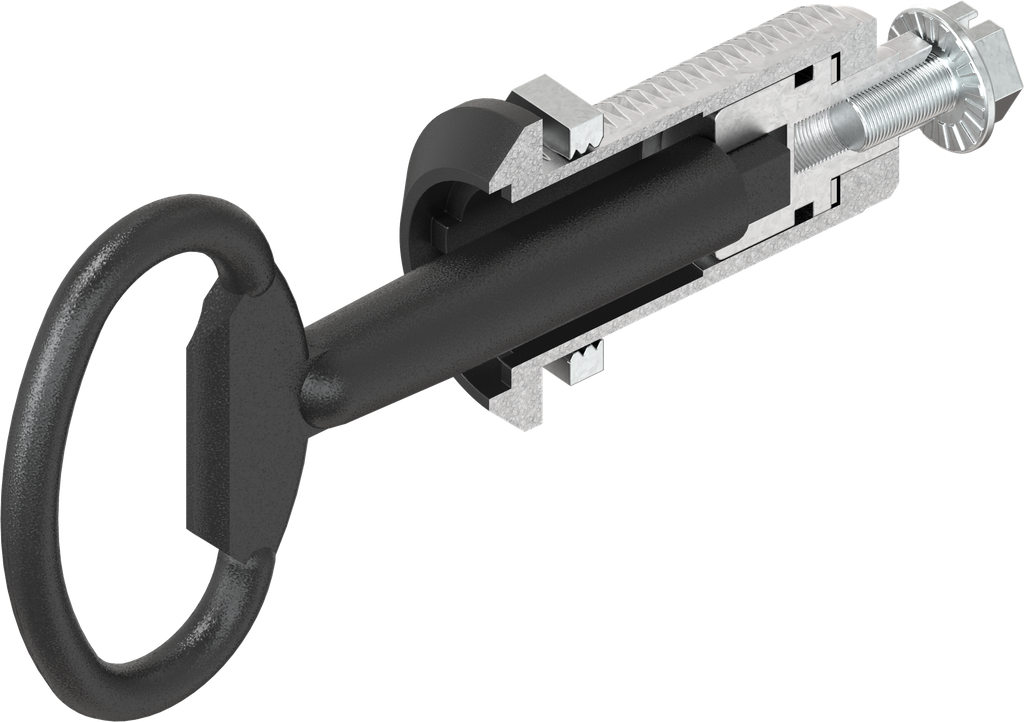

Removable cylinder, covered square insert, for higher torque when using square key.
Internal Reference:
1048-U22
Product Type:
Quarter turn
Program:
1048
Catalog sheet:
1B-360
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Type of actuation:

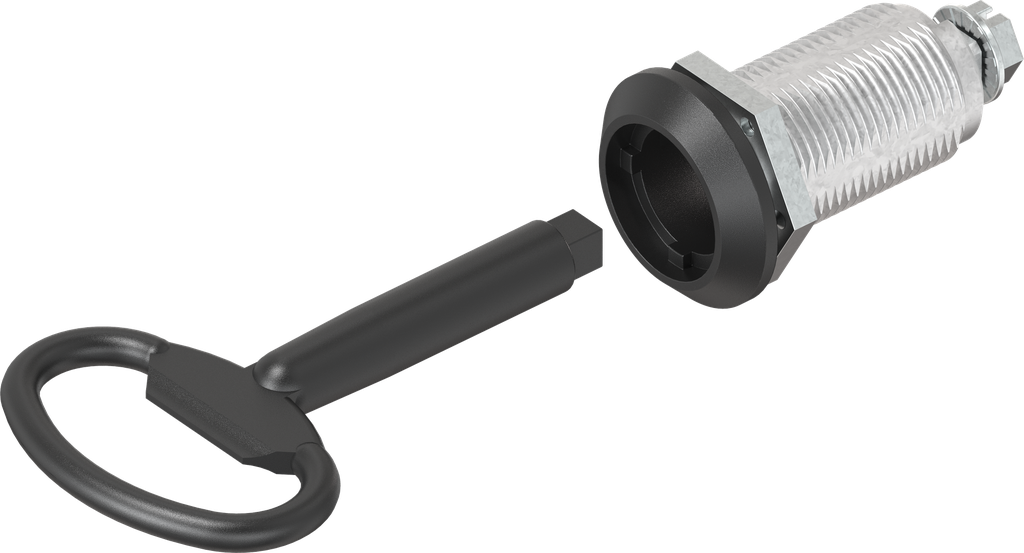

Square female 6
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Round

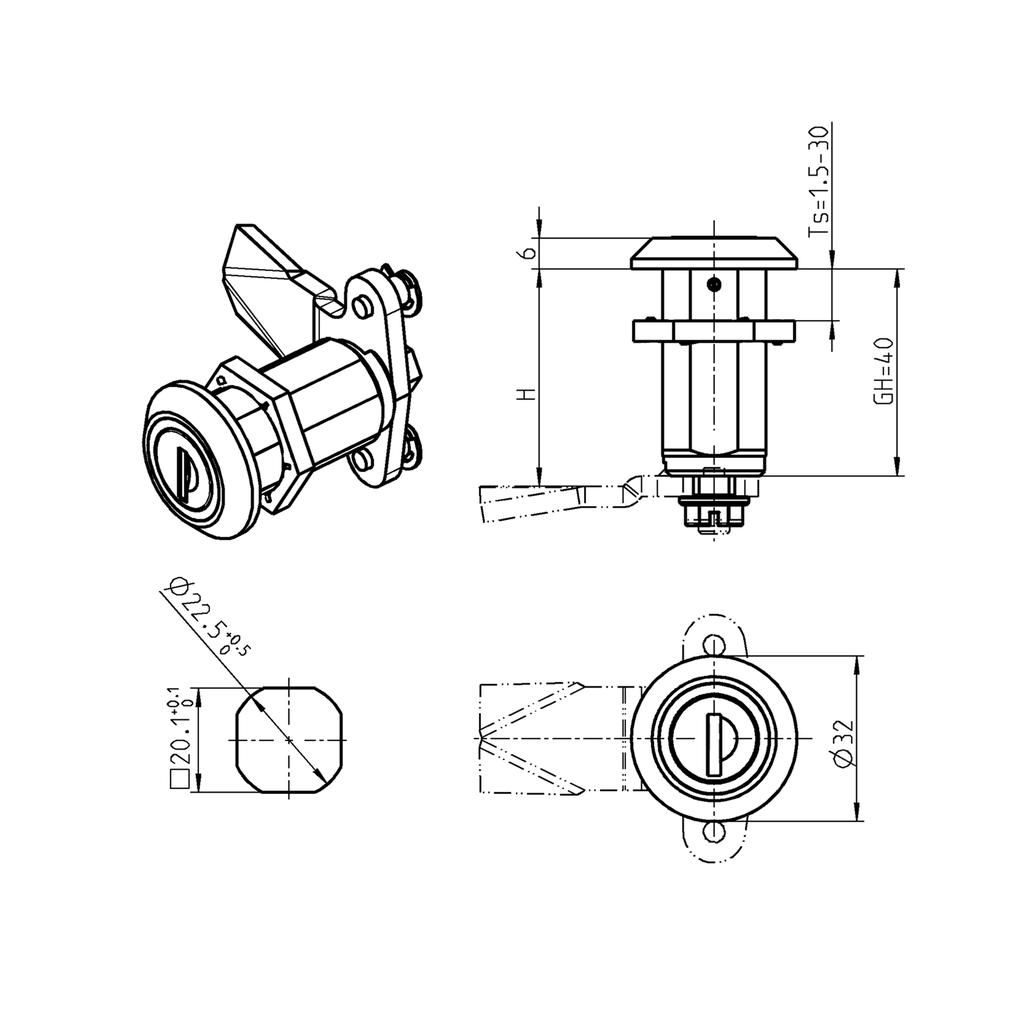

Housing Head Size:
32 x 6 mm
GH Mass:
40 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
30 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Insert,Round cylinder
Door Version :
Left,Right
Quarter turn types:
Quarter turn with simple insert,Quarter turn with cylinder,Safety quarter turn
