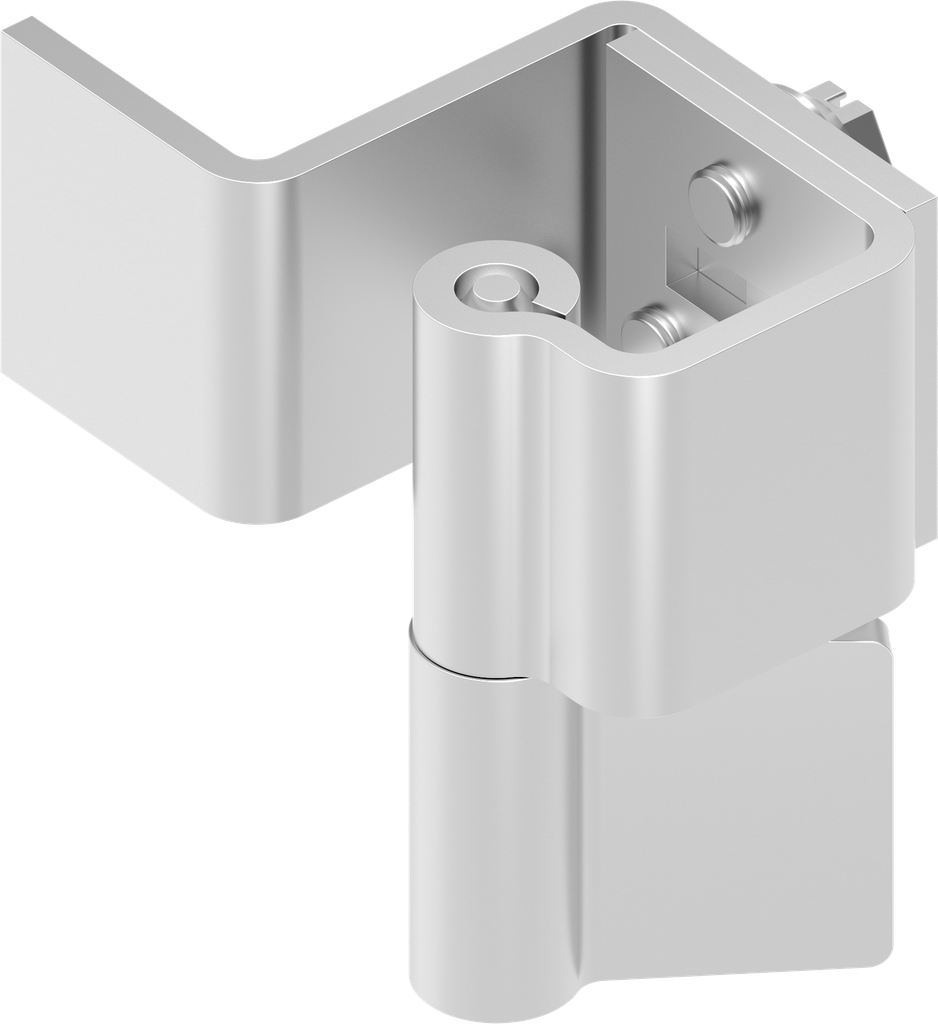

90° Concealed hinge, Stainless steel AISI 304; 1046-U5

https://www.emka.com/products/1046-u5 https://www.emka.com/web/image/product.template/61388/image_1920?unique=77b7778


    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right


    Internal Reference: 1046-U5
    Product Type: Hinge
    Program: 1046
    Catalog sheet: 4B-130
    Material of the module : Stainless steel AISI 304
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: weld-on
    Max Opening Angle: 90°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products

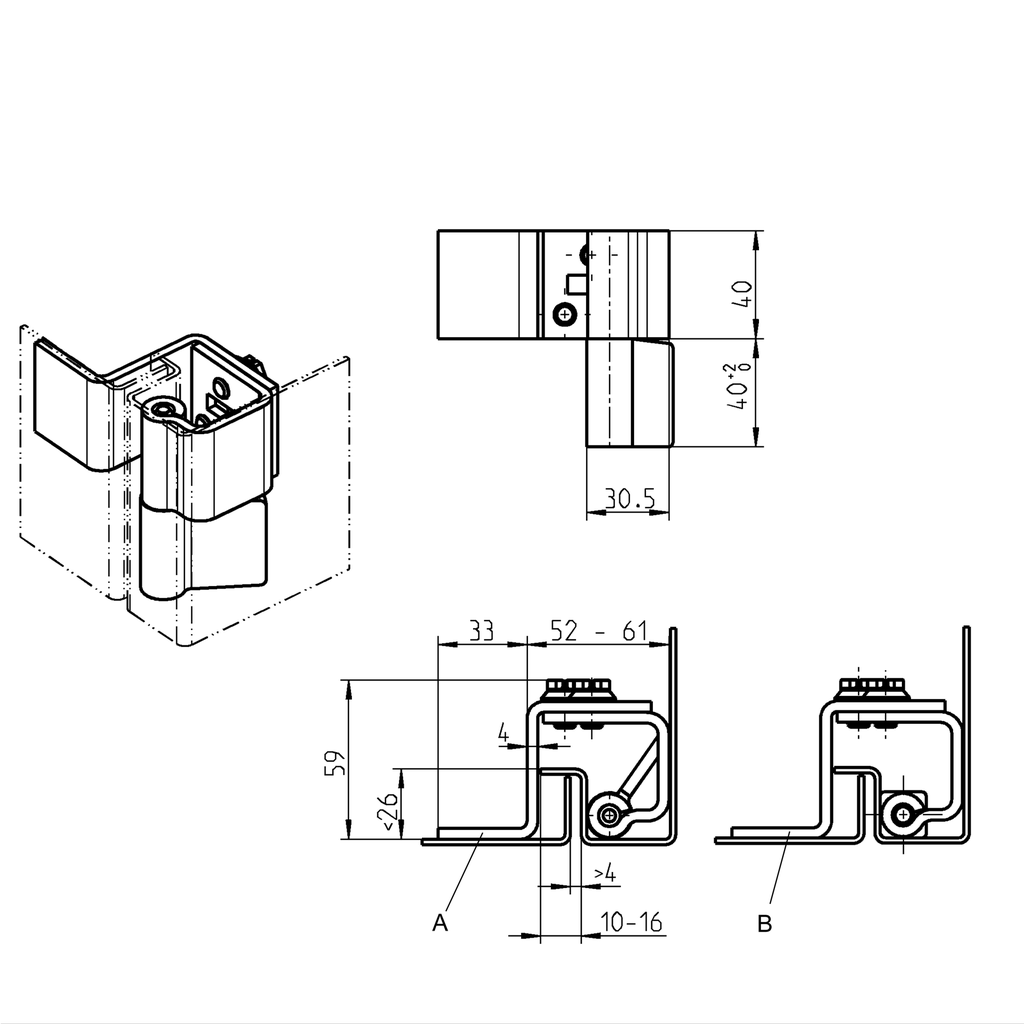

    Here you can find the product data sheets and CAD files of this product
