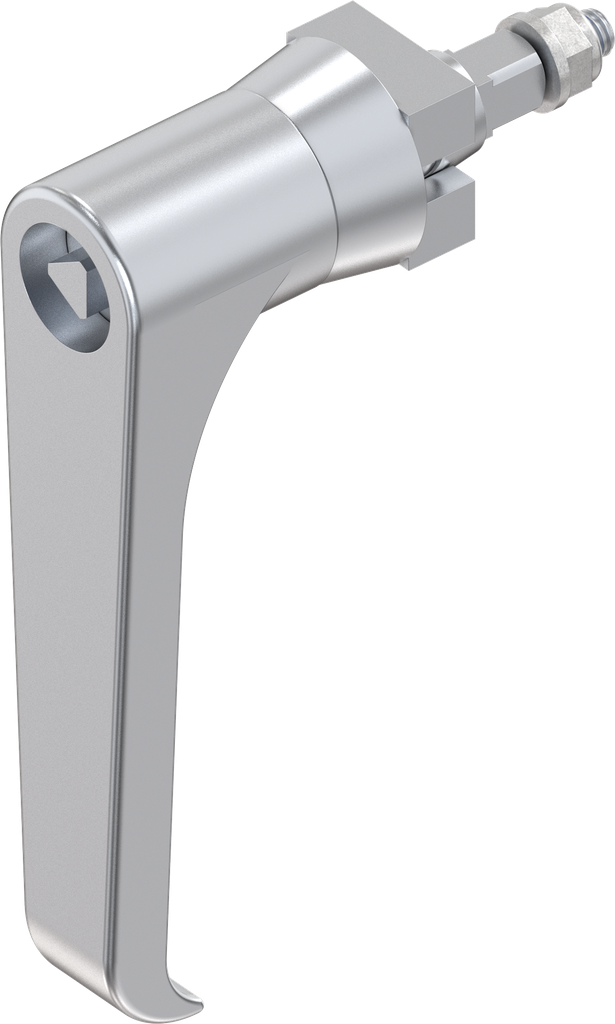

L-handle triangular 8, Zinc die chrome-plated; 1044-U15

https://www.emka.com/products/1044-u15-l-handle-triangular-8-zinc-die-chrome-plated-211009 https://www.emka.com/web/image/product.template/211009/image_1920?unique=eaa452d

for weld-on version, A = 20 mm

    This combination does not exist.

    Left Right
    No stock item, please ask for availability
    Internal Reference: 1044-U15
    Barcode: 1044-U00015-0000000
    Product Type: Quarter turn
    Program: 1044
    Catalog sheet: 2B-160
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 20
    Fixing type of housing : weld-on
    Type of actuation: Triangular 8
    Housing Head Shape: Round
    Handle Art: L-handle
    Locking set: Insert
    Door Version : Left,Right
    Quarter turn types: Quarter turn with handle
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
