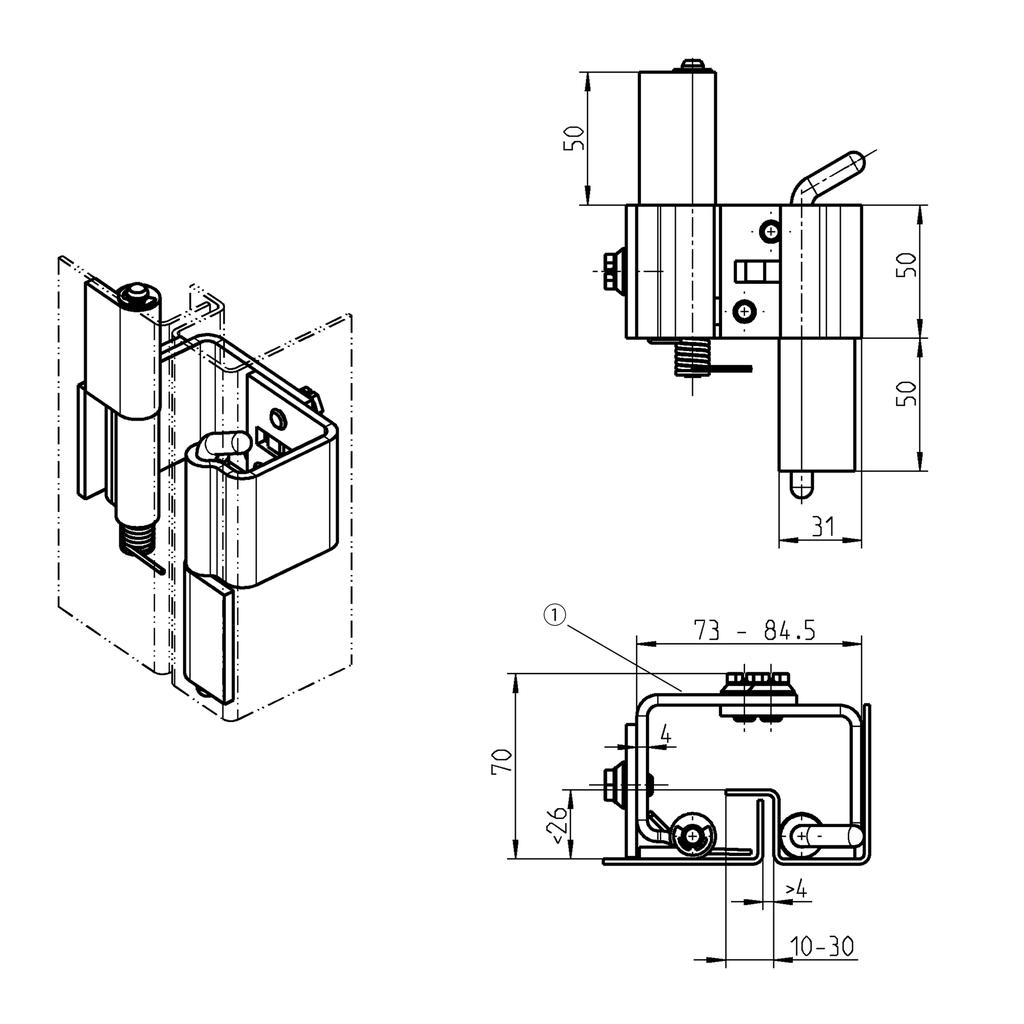

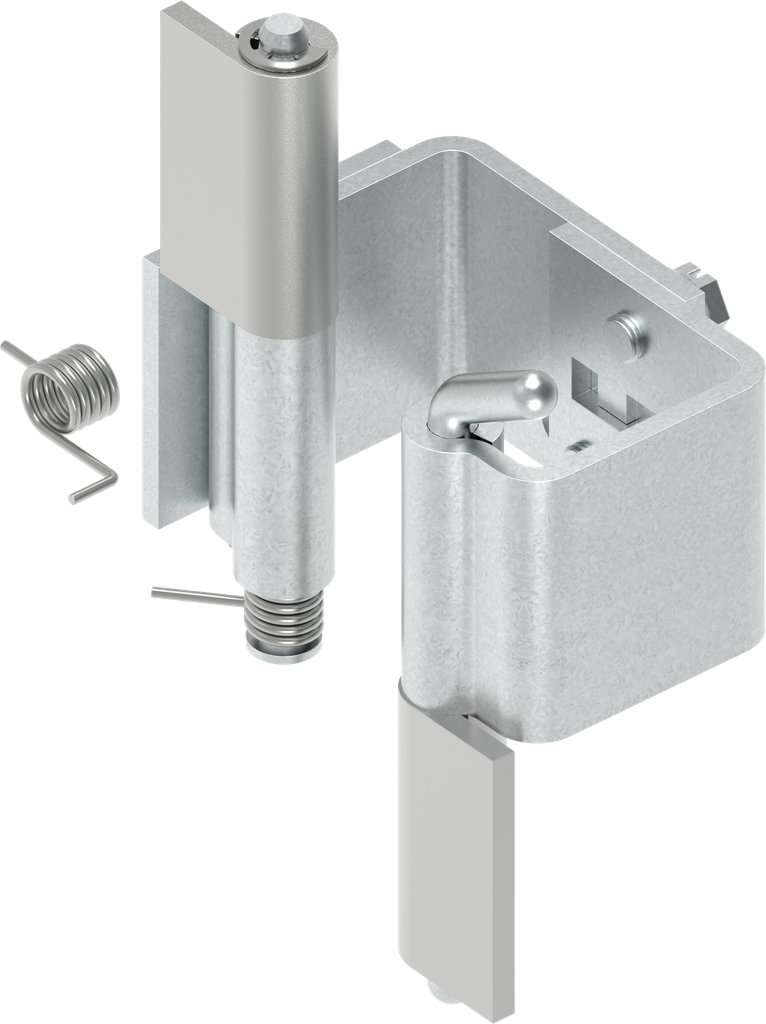

180° Concealed hinge, Steel zinc-plated and raw; 1043-U1

https://www.emka.com/products/1043-u1 https://www.emka.com/web/image/product.template/61328/image_1920?unique=2c7a806

2 hinge parts m.s. raw for welding on


    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right


    Akeneo Note:

    2 springs for right-hand and left-hand version

    Internal Reference: 1043-U1
    Product Type: Hinge
    Program: 1043
    Catalog sheet: 4B-140
    Material of the module : Steel
    Surface of the module: zinc-plated and raw
    Dimension A, Variable: up to 26 mm
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: weld-on
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
