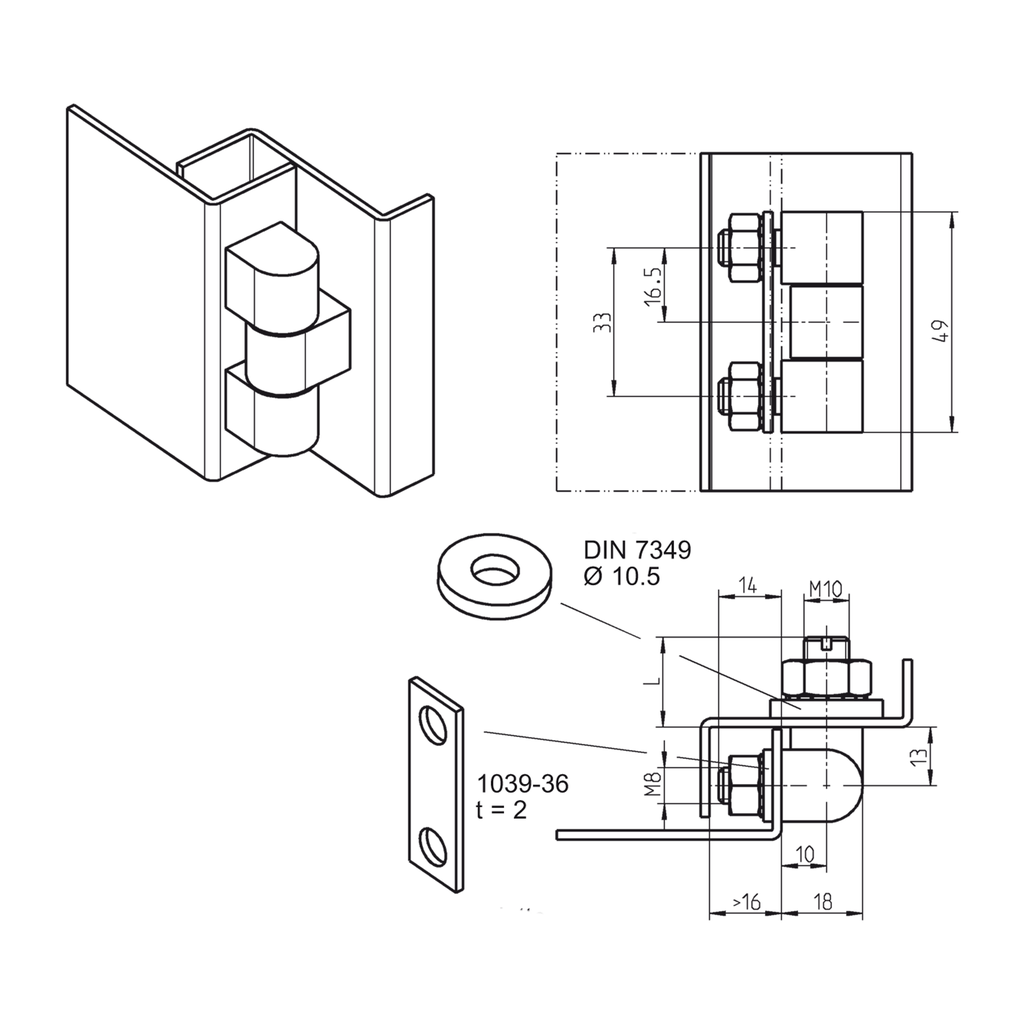

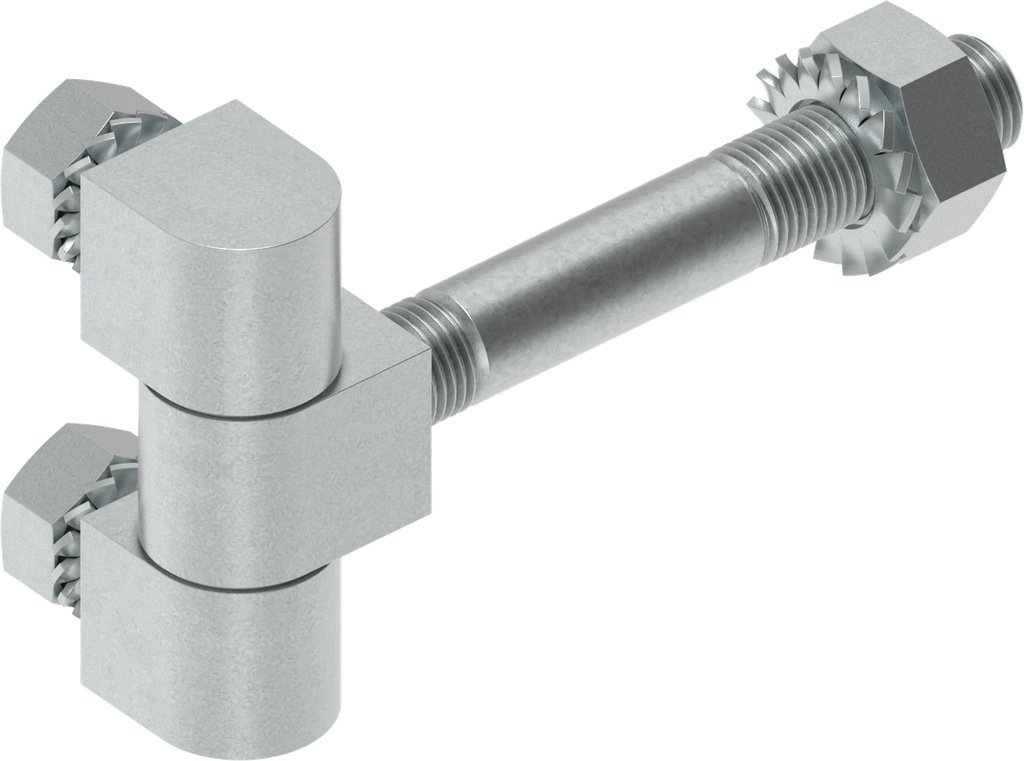

180° Hinge, Steel, precision casting zinc-plated; 1039-U8-01

https://www.emka.com/products/1039-u8-01-180-hinge-steel-precision-casting-zinc-plated-393606 https://www.emka.com/web/image/product.template/393606/image_1920?unique=616c9de

    This combination does not exist.

    Single cabinets Left Right
    No stock item, please ask for availability
    Internal Reference: 1039-U8-01
    Barcode: 1039-U00008-0000001
    Product Type: Hinge
    Program: 1039
    Material of the module : Steel, precision casting
    Surface of the module: zinc-plated
    Door return variable: Yes
    Execution: three-piece
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Dimension L: 65 mm
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    View All Products

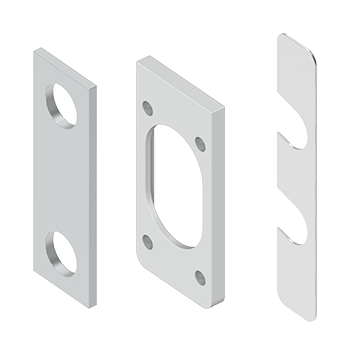

    Shim
