180° Hinge, Steel zinc-plated
180° Hinge, Steel zinc-plated

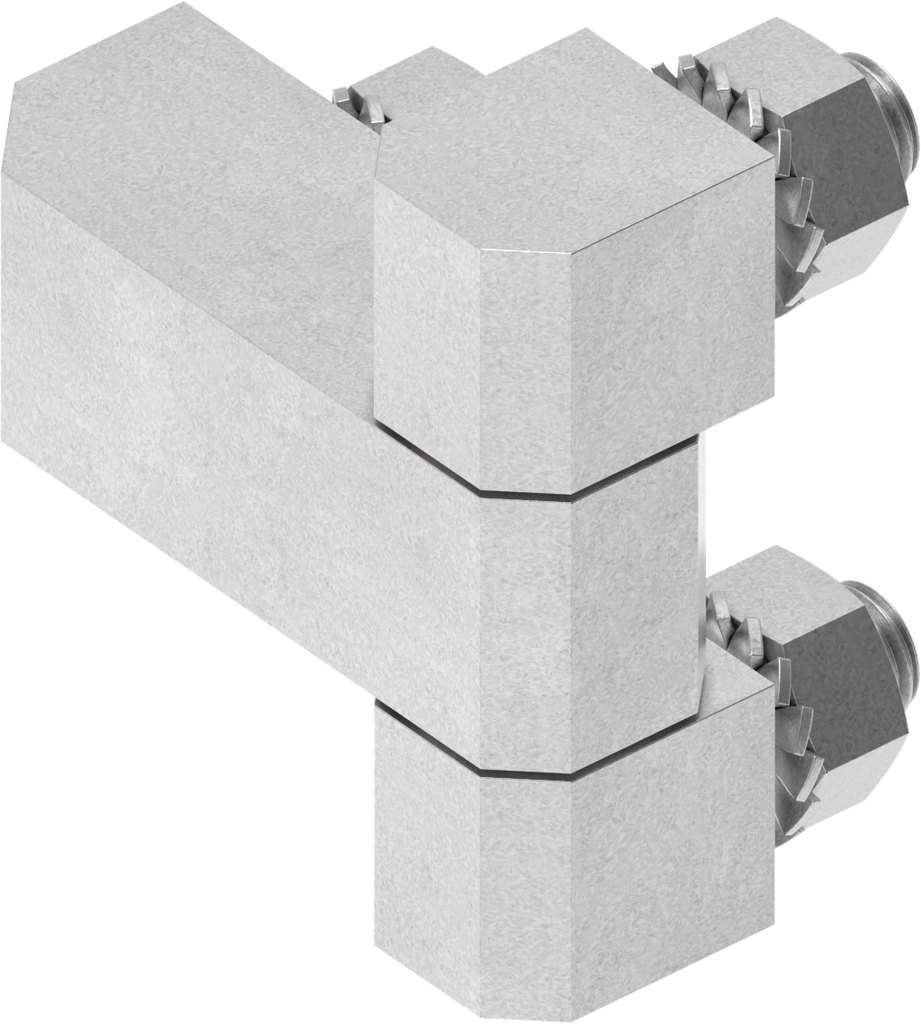

180° Hinge, Steel zinc-plated; 1039-U10

https://www.emka.com/products/1039-u10 https://www.emka.com/web/image/product.template/61307/image_1920?unique=d64fdfa


    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right


    Internal Reference: 1039-U10
    Product Type: Hinge
    Program: 1039
    Catalog sheet: 4B-160
    Material of the module : Steel
    Surface of the module: zinc-plated

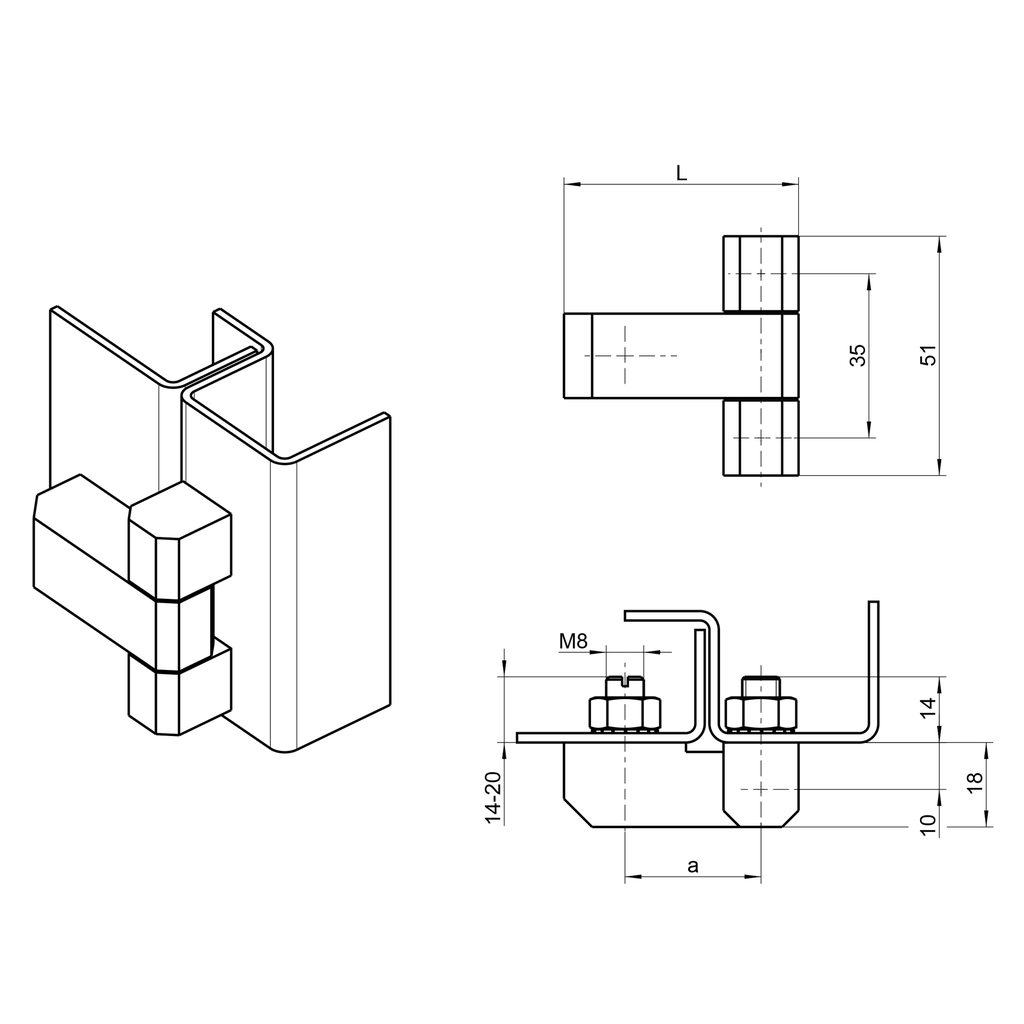

    Dimension a: 29 mm
    Door return variable: Yes
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Dimension L: 50 mm
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
