Weld-on hinge, Steel raw
Weld-on hinge, Steel raw

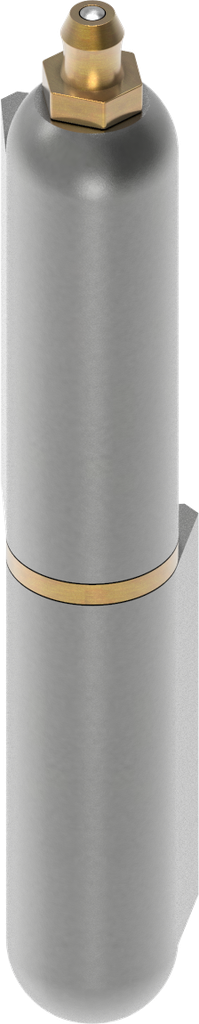

Weld-on hinge, Steel raw; 1033-U7-SN

https://www.emka.com/products/1033-u7-sn https://www.emka.com/web/image/product.template/349562/image_1920?unique=961bf23

with grease fitting


    This combination does not exist.

    Single cabinets Left Right


    Product information:

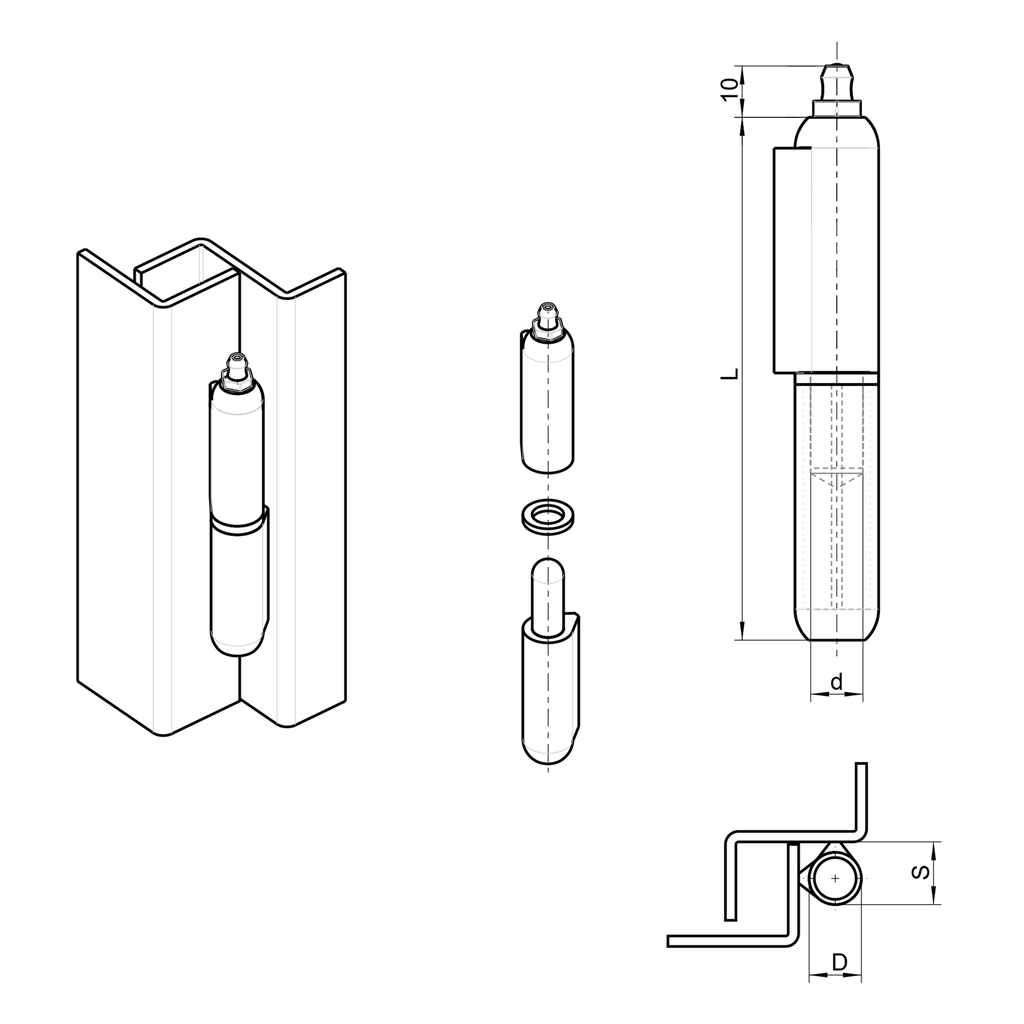

    L dimensions are nominal; weld-on hinges can be smaller.

    Internal Reference: 1033-U7-SN
    Product Type: Hinge
    Program: 1033
    Material of the module : Steel
    Surface of the module: raw
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: weld-on
    Dimension d: 10 mm
    Dimension D: 16 mm
    Dimension L: 100 mm
    Max. opening angle due to installation: Yes
    Dimension S: 20 mm
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
