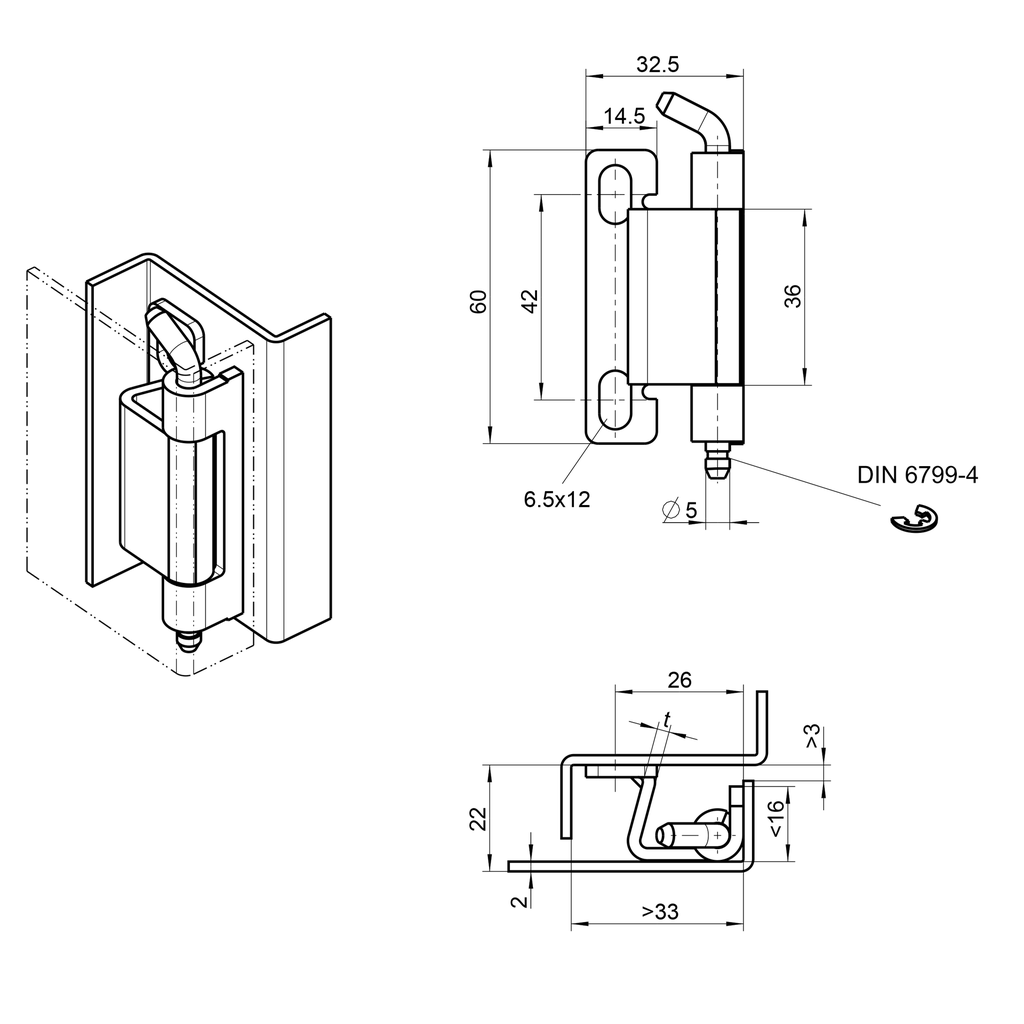

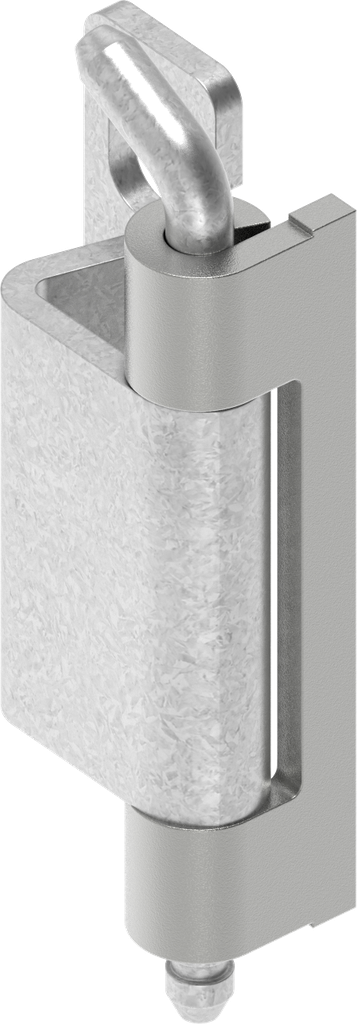

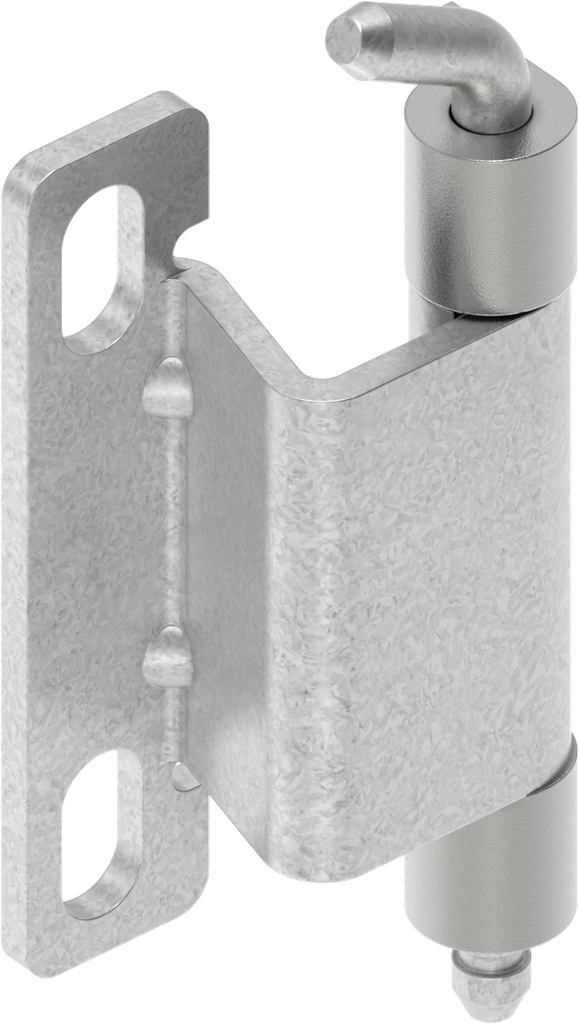

120° Hinge, Steel zinc-plated and raw; 1032-U1

https://www.emka.com/products/1032-u1 https://www.emka.com/web/image/product.template/61144/image_1920?unique=b3ff068

Roller m.s. raw for welding on


    This combination does not exist.

    Single cabinets Left Right


    Internal Reference: 1032-U1
    Product Type: Hinge
    Program: 1032
    Catalog sheet: 4A-130
    Material of the module : Steel
    Surface of the module: zinc-plated and raw
    Dimension A, Variable: 22 mm
    Detachable: with tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from outside
    Max. opening angle due to installation: Yes
    Max Opening Angle: 120°
    Cabinet type : Single cabinets
    Dimension t: 2.50 mm
    Door position: prominent
    Door Version : Left,Right
    Thickness: 2 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
