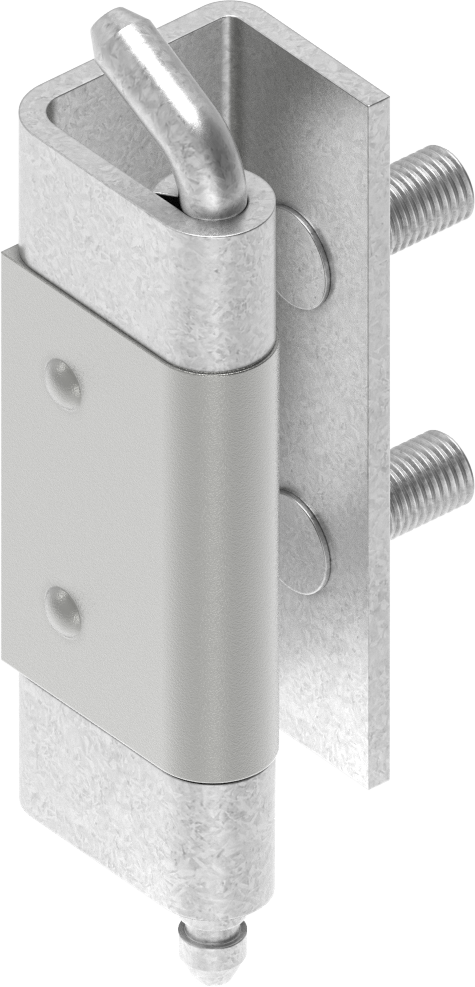

120° Hinge, Steel zinc-plated and raw; 1031-U21

https://www.emka.com/products/1031-u21 https://www.emka.com/web/image/product.template/61123/image_1920?unique=5b89ff6

Roller m.s. raw for welding on


    This combination does not exist.

    Single cabinets Left Right


    Product information:

    This hinge was designed for swinghandles 2400 high (2400-U1; -U2) and swinghandle 2600-U1. Using this hinge, the door is reversible.

    Internal Reference: 1031-U21
    Product Type: Hinge
    Program: 1031
    Catalog sheet: 4A-136
    Material of the module : Steel
    Surface of the module: zinc-plated and raw
    Dimension A, Variable: 25 mm
    Detachable: with tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from inside, with press-fit threaded studs M6 x 15
    Max Opening Angle: 120°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Thickness: 2 mm
    No Specifications
