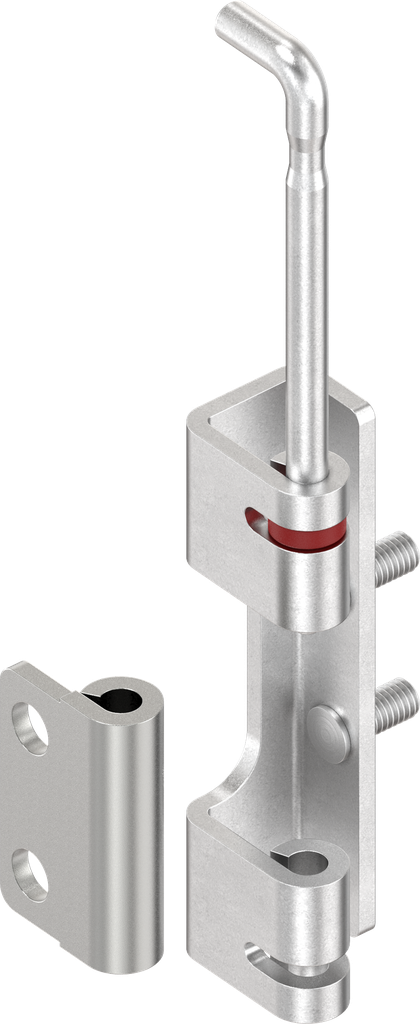

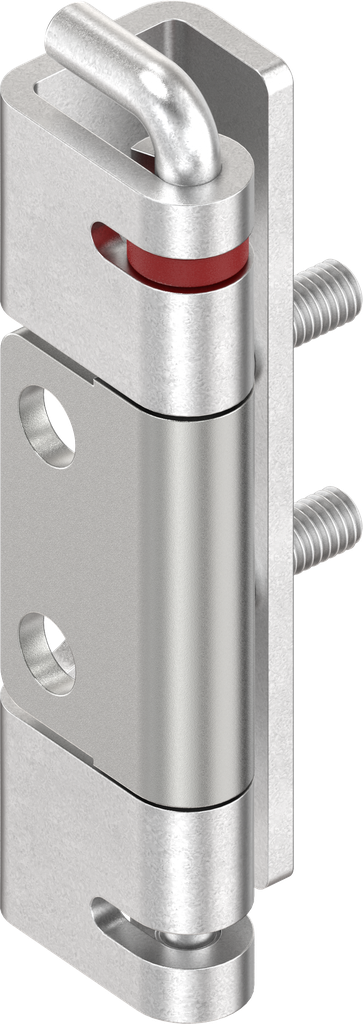

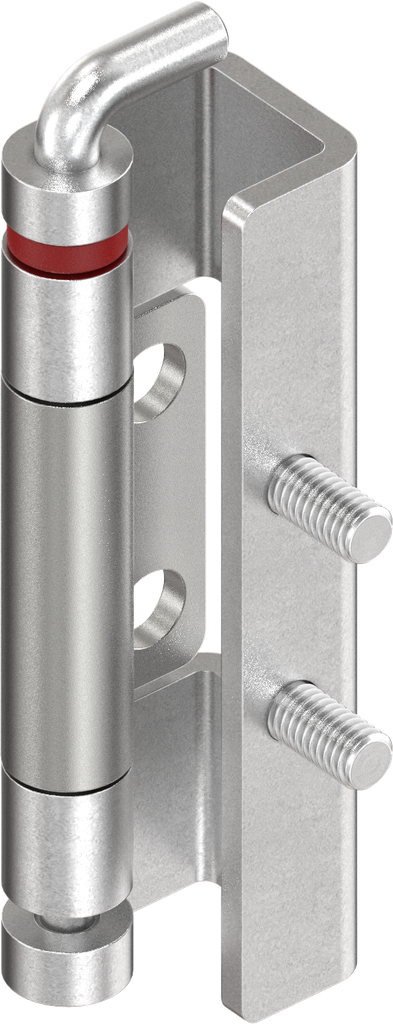

125° Hinge with captive pin, Steel zinc-plated; 1031-U19

https://www.emka.com/products/1031-u19 https://www.emka.com/web/image/product.template/61121/image_1920?unique=3e944dc

Roller m.s. raw for welding on


    This combination does not exist.

    Single cabinets Left Right


    Product information:

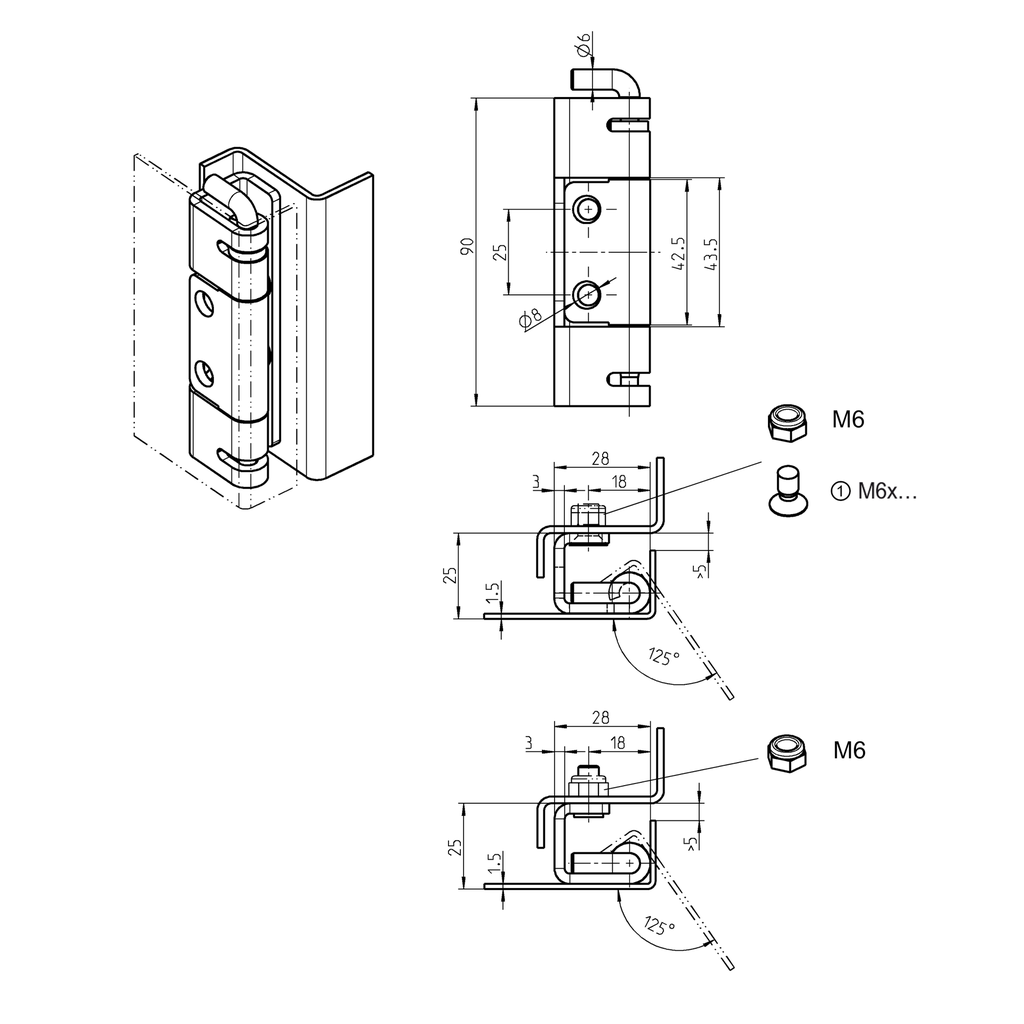

    ① = For version with countersunk screw with small head acc. to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047

    Internal Reference: 1031-U19
    Product Type: Hinge
    Program: 1031
    Catalog sheet: 4A-135
    Material of the module : Steel
    Surface of the module: zinc-plated
    Dimension A, Variable: 25 mm
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from inside, with press-fit threaded studs M6 x 15
    Max Opening Angle: 125°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Thickness: 1.5 mm
    Captive pen: Yes
