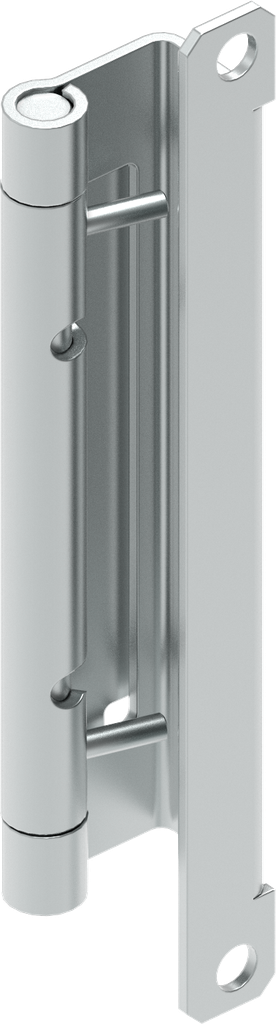

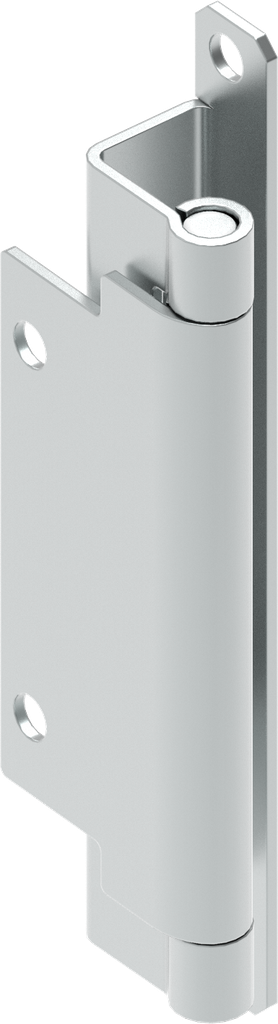

122° Hinge with captive pin, Steel zinc-plated; 1031-U18

https://www.emka.com/products/1031-u18 https://www.emka.com/web/image/product.template/61120/image_1920?unique=3e944dc


    This combination does not exist.

    Single cabinets Left Right


    Product Benefits:

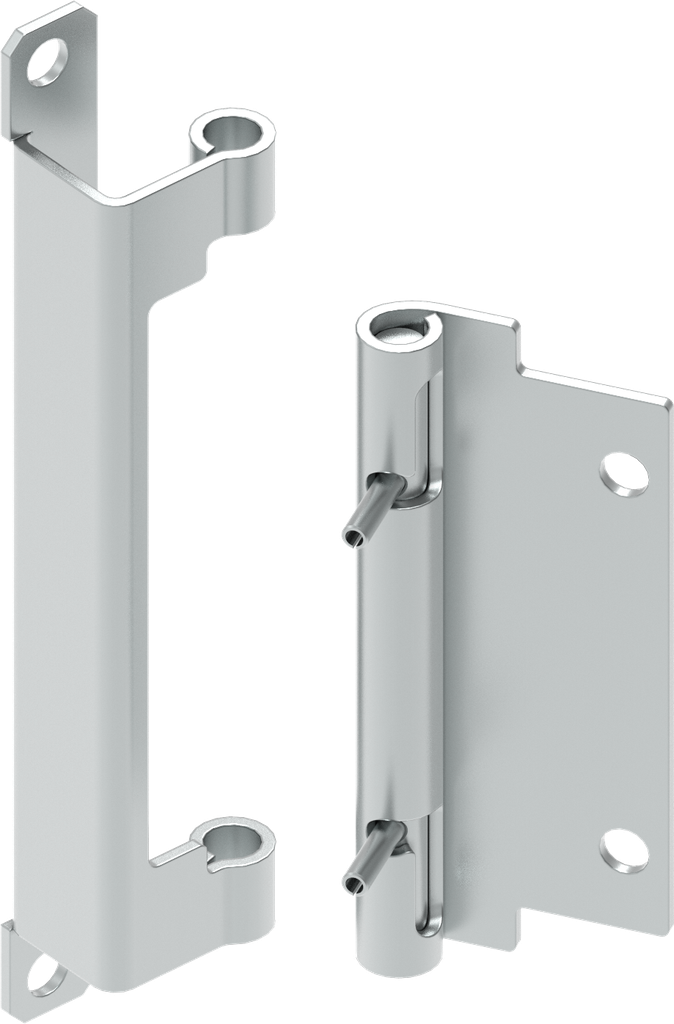

    Can be hinged and unhinged without tools

    Product information:

    Weld-on roller

    Internal Reference: 1031-U18
    Product Type: Hinge
    Program: 1031
    Catalog sheet: 4A-137
    Material of the module : Steel
    Surface of the module: zinc-plated

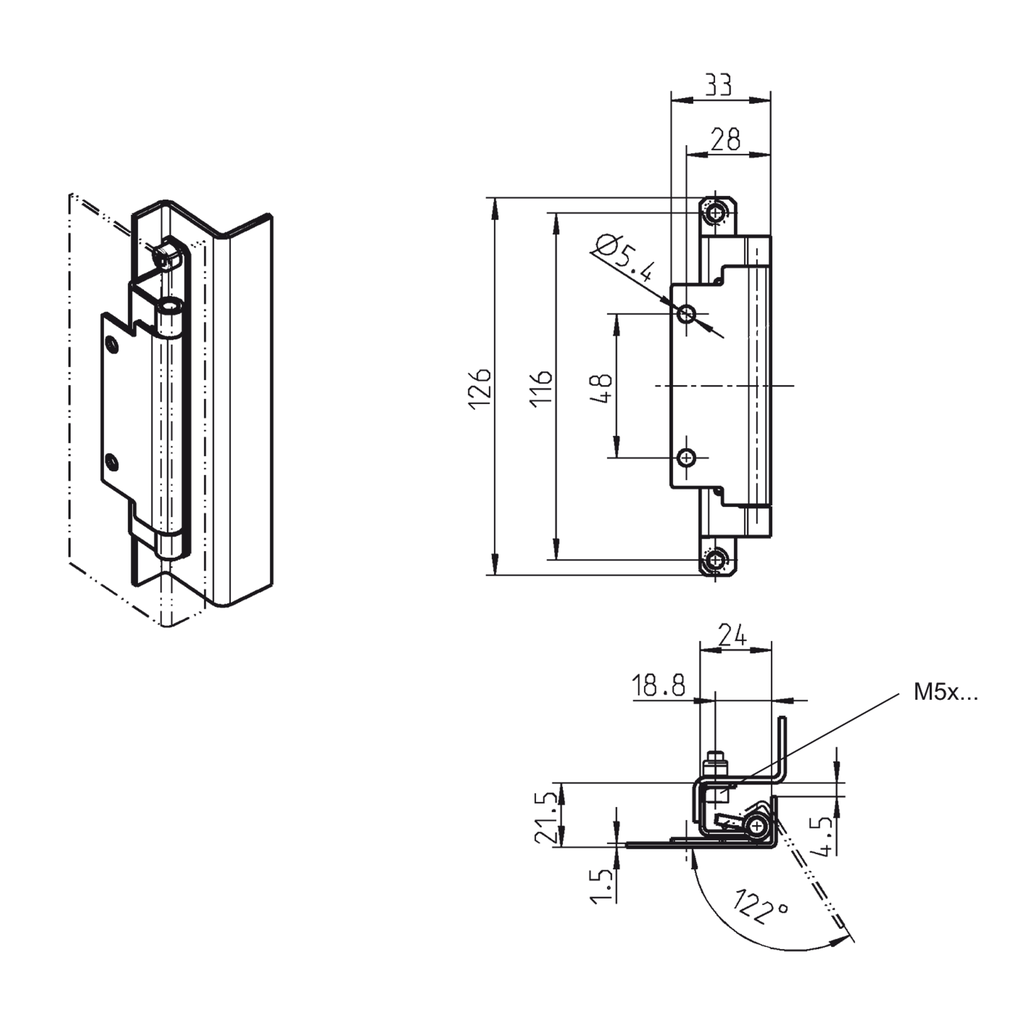

    Dimension A, Variable: 22 mm
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on
    Max Opening Angle: 122°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Thickness: 1.5 mm
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
