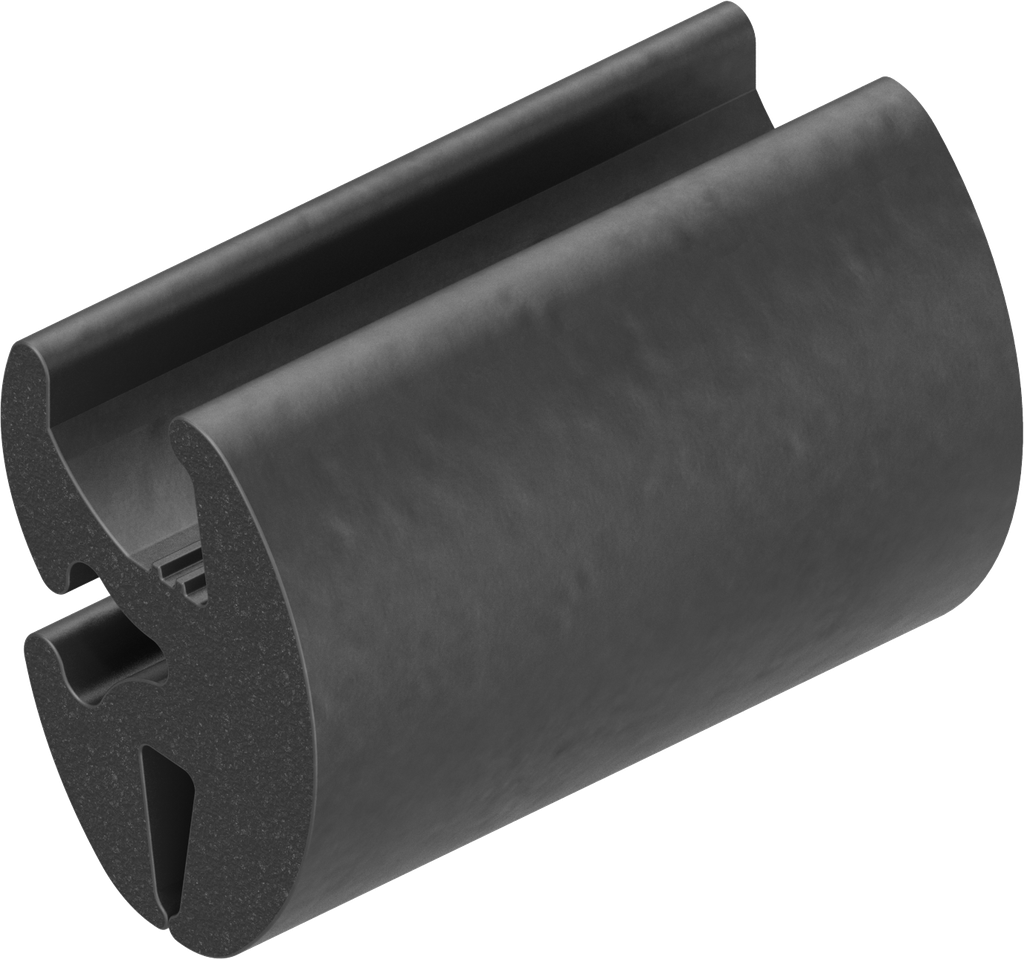

Clamping profile, EPDM 75 ± 5 Shore A black
Clamping profile, EPDM 75 ± 5 Shore A black
CLAMPING PROFILE, BLACK EPDM, H=21MM (L=20M)
CLAMPING PROFILE, BLACK EPDM, H=21MM (L=20M)

Clamping profile, EPDM 75 ± 5 Shore A black; 1030-02

https://www.emka.com/products/1030-02 https://www.emka.com/web/image/product.template/61035/image_1920?unique=5baffa1


    This combination does not exist.



    Product information:

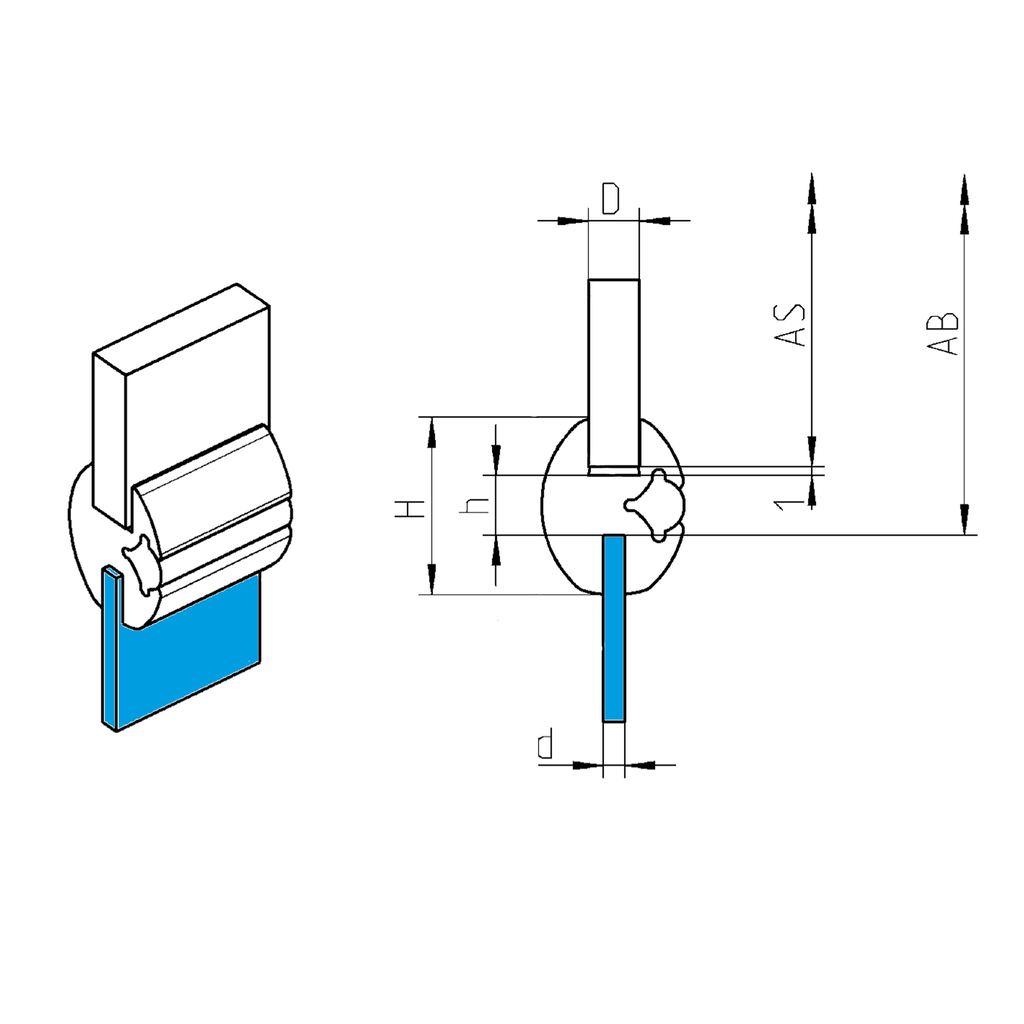

    The indication of the bending radius refers to the window receiver = AS +1 mm

    AS = Window dimension
    AB = Dimension metal sheet cut out

    Internal Reference: 1030-02
    Product Type: Seal
    Material: EPDM 75 ± 5 Shore A
    Program: 1030
    Surface: black
    Dimension d: 2.50 mm
    Dimension D: 4 mm
    Seal Type: Clamping profile with filler
    Dimension h: 7 mm
    Dimension H: 21 mm
    Clamping edge is or is up to: 2.5
    Clamping profile dimension d for sheet metal: 2.5 mm
    Clamping profile dimension D for window: 4 mm
