Insert part triangular 6.5, Polyamide GF black
Insert part triangular 6.5, Polyamide GF black
Clamping profile, EPDM 75 ± 5 Shore A black
Clamping profile, EPDM 75 ± 5 Shore A black

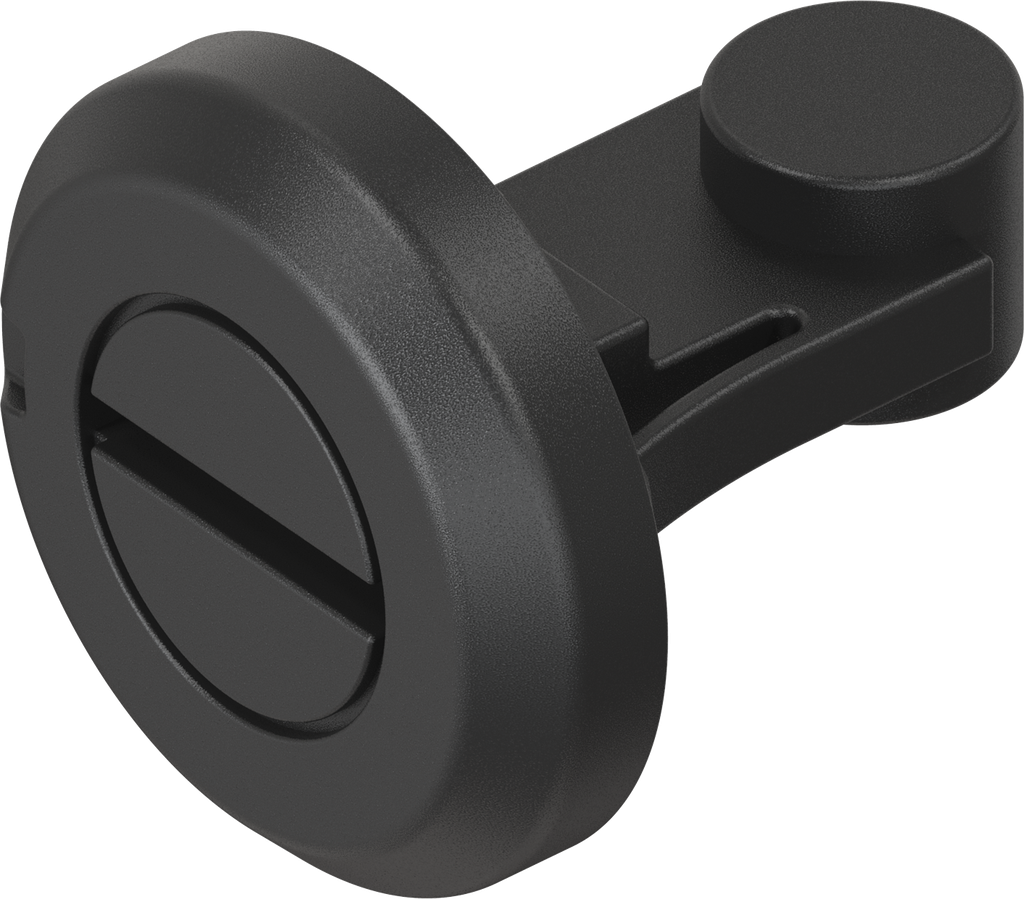

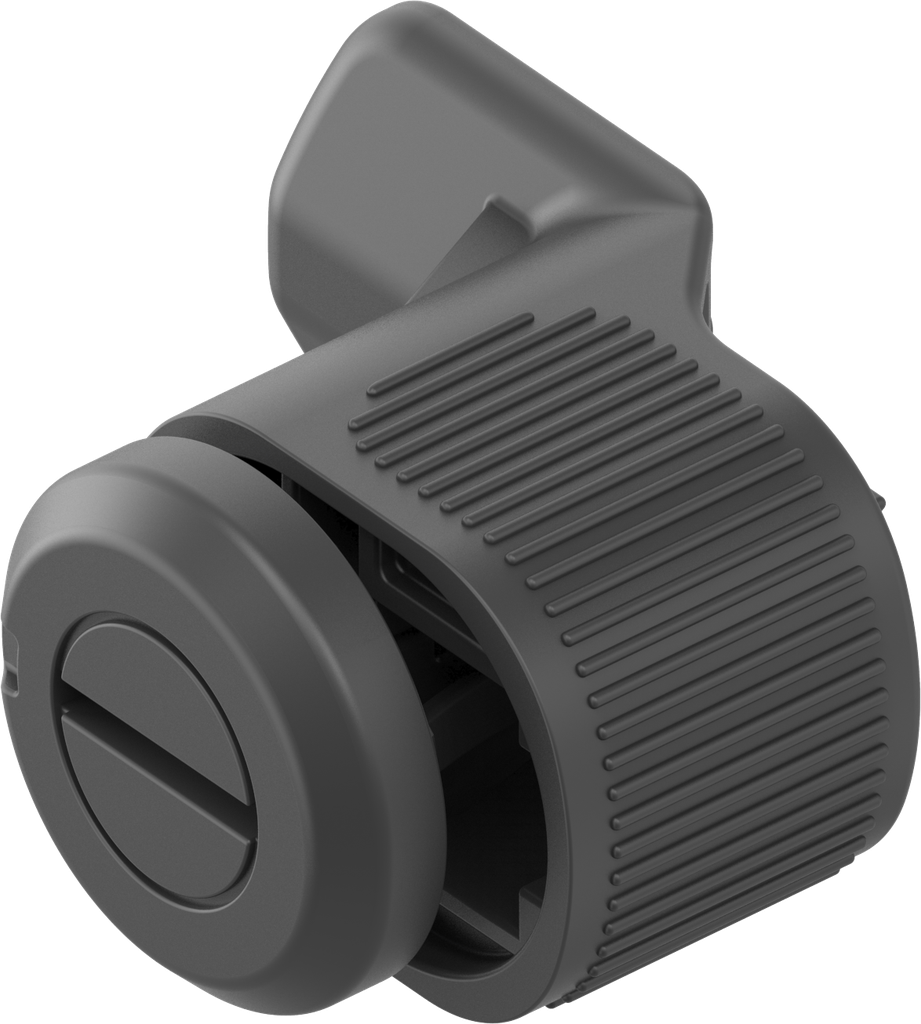

Insert part slot 1.5 x 3, Polyamide GF black; 1022-U91

https://www.emka.com/products/1022-u91 https://www.emka.com/web/image/product.template/61033/image_1920?unique=5baffa1


    This combination does not exist.

    Protection class IP 69K


    Product Benefits:

    • Cost savings due to assembly and disassembly without tools within seconds
    • Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
    • Smooth operation (no inner rotation due to design)
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Product information:

    Door gauge incl. surface coating

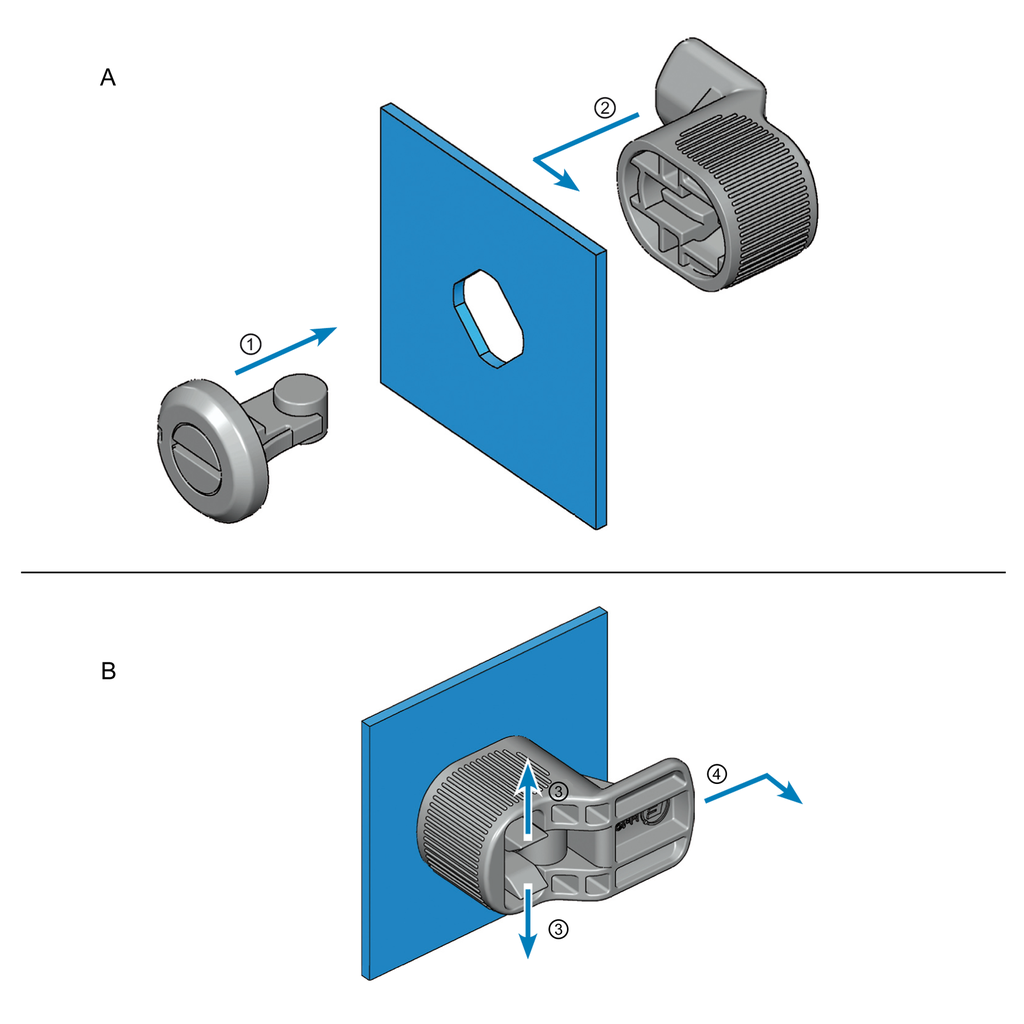

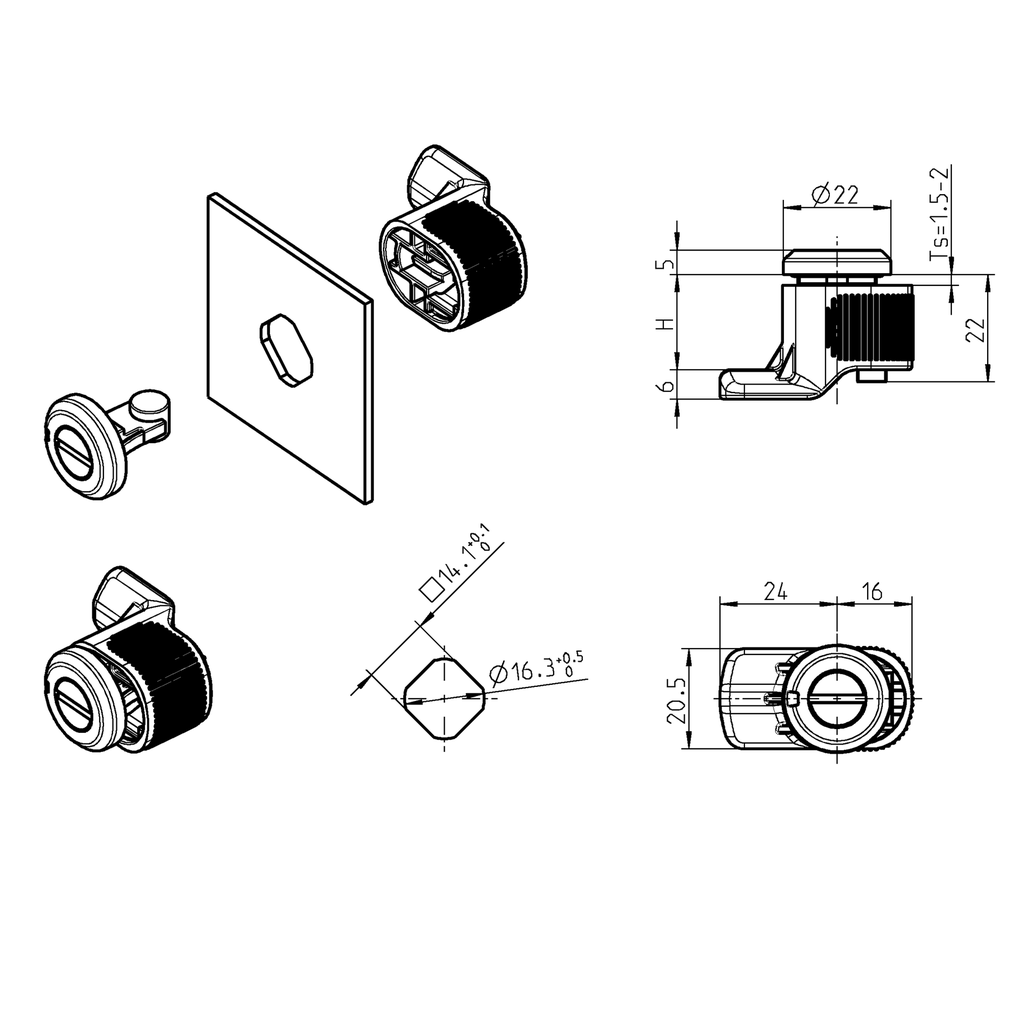

    A = Assembly
    ① = Insert the insert part into the cut out
    ② = Place the snap-in cam and shift it laterally, acoustic and visual verification of snapping in of snap-in cam

    B = Disassembly
    ③ = Press the locking arms apart
    ④ = Shift the snap-in cam laterally and remove it

    Assembly instruction:

    • Assembly door stop on the right:
      Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing.
    • Assembly door stop on the left:
      Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
    Internal Reference: 1022-U91
    Product Type: Quarter turn
    Program: 1022
    Catalog sheet: 1A-320
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Type of actuation: Slot 1.5 x 3
    For GH measure: 13.50 mm
    Suitable for door thickness from: 0.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking set: Insert
    No Specifications
