Cylinder quarter turn, keyed 2233X, Zinc die chrome-plated
Cylinder quarter turn, keyed 2233X, Zinc die chrome-plated
Cylinder quarter turn, keyed different, Zinc die chrome-plated
Cylinder quarter turn, keyed different, Zinc die chrome-plated

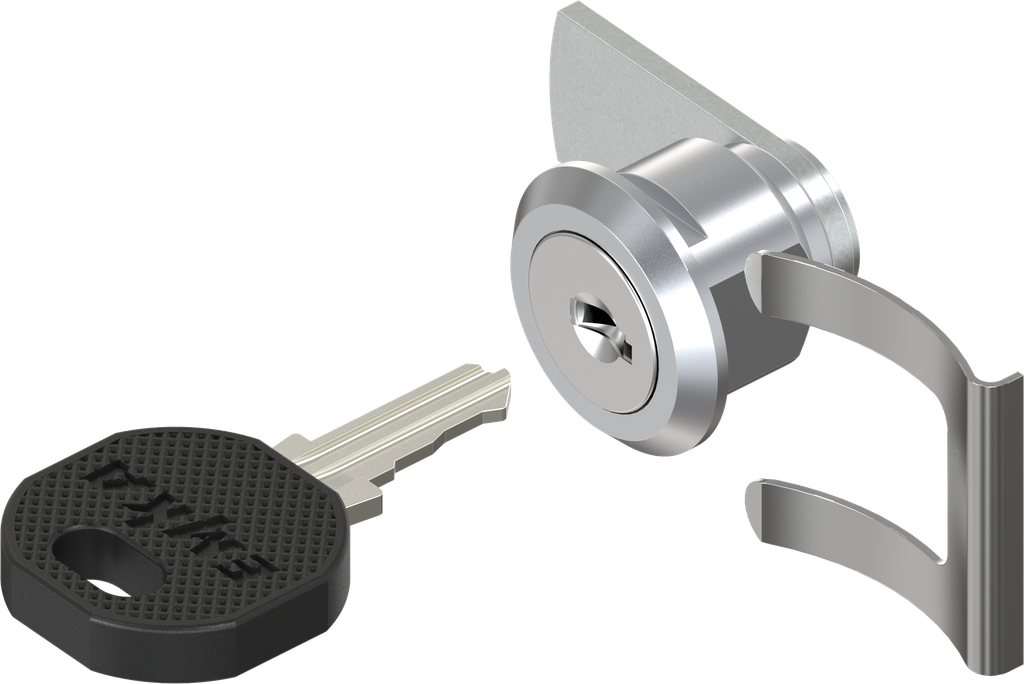

Cylinder quarter turn, keyed different, Zinc die chrome-plated; 1022-U14

https://www.emka.com/products/1022-u14 https://www.emka.com/web/image/product.template/209184/image_1920?unique=63c47fc


    This combination does not exist.

    Inside the sealing Left Right


    Internal Reference: 1022-U14
    Product Type: Quarter turn
    Program: 1022
    Catalog sheet: 1A-160
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : spring fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

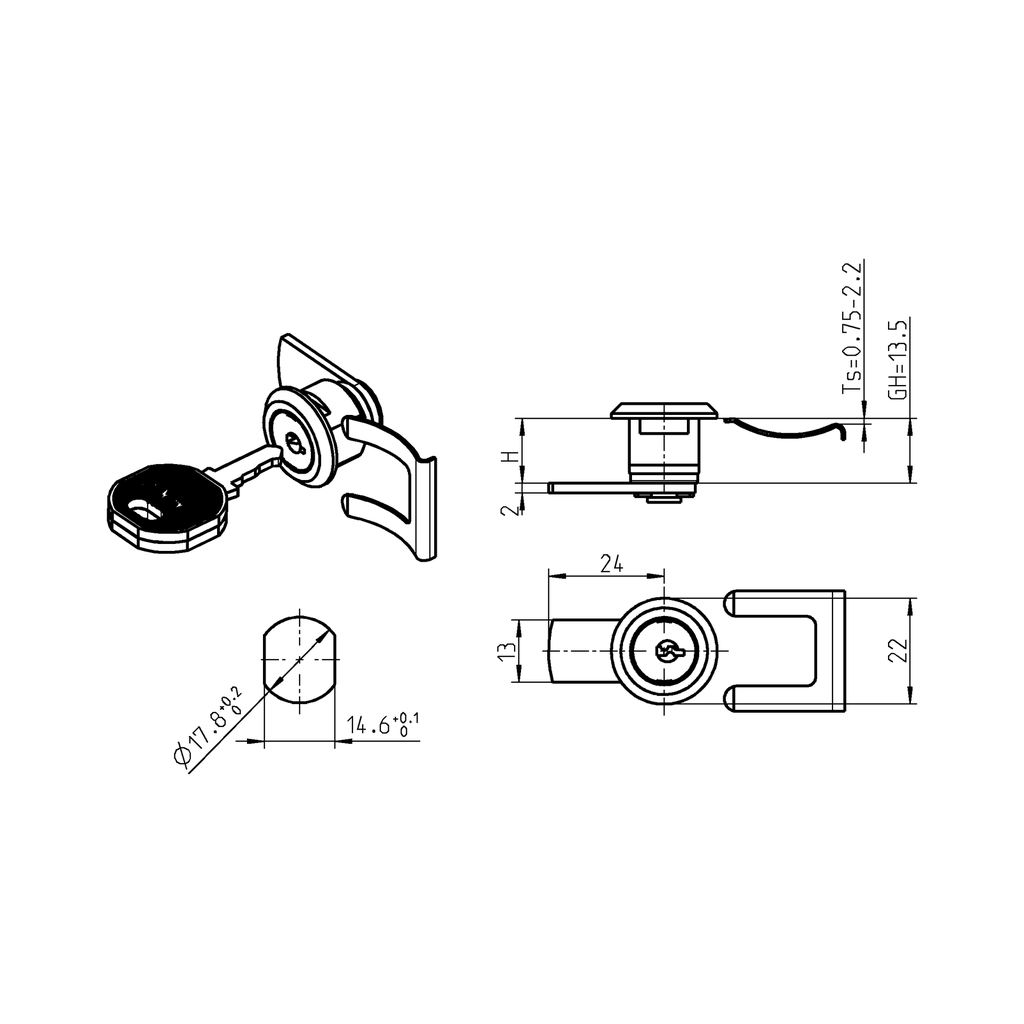

    Housing Head Size: 22 x 3 mm
    GH Mass: 13.50 mm
    Dimension H: 13.50 mm
    Suitable for door thickness from: 0.75 mm
    Suitable for door thicknesses up to: 2.20 mm
    Round Cylinder Type: EMKA X, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with cylinder
