Escutcheon with flap, Stainless steel AISI 316
Escutcheon with flap, Stainless steel AISI 316
Cylinder quarter turn, keyed 2233X, Zinc die chrome-plated
Cylinder quarter turn, keyed 2233X, Zinc die chrome-plated

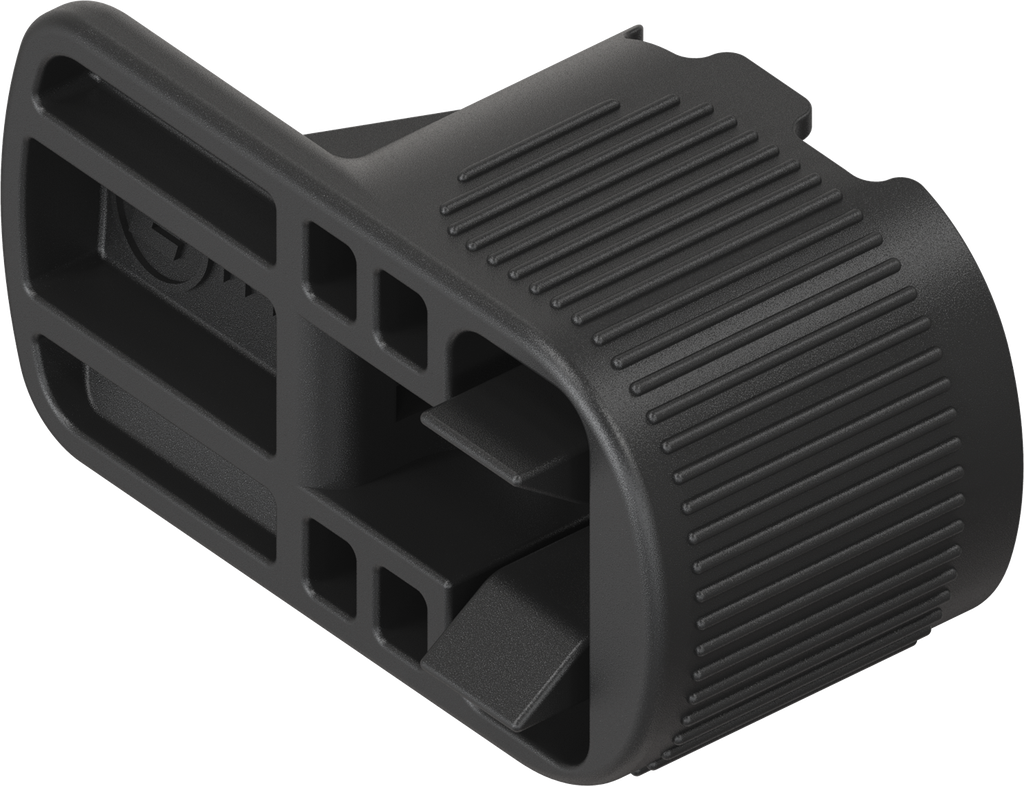

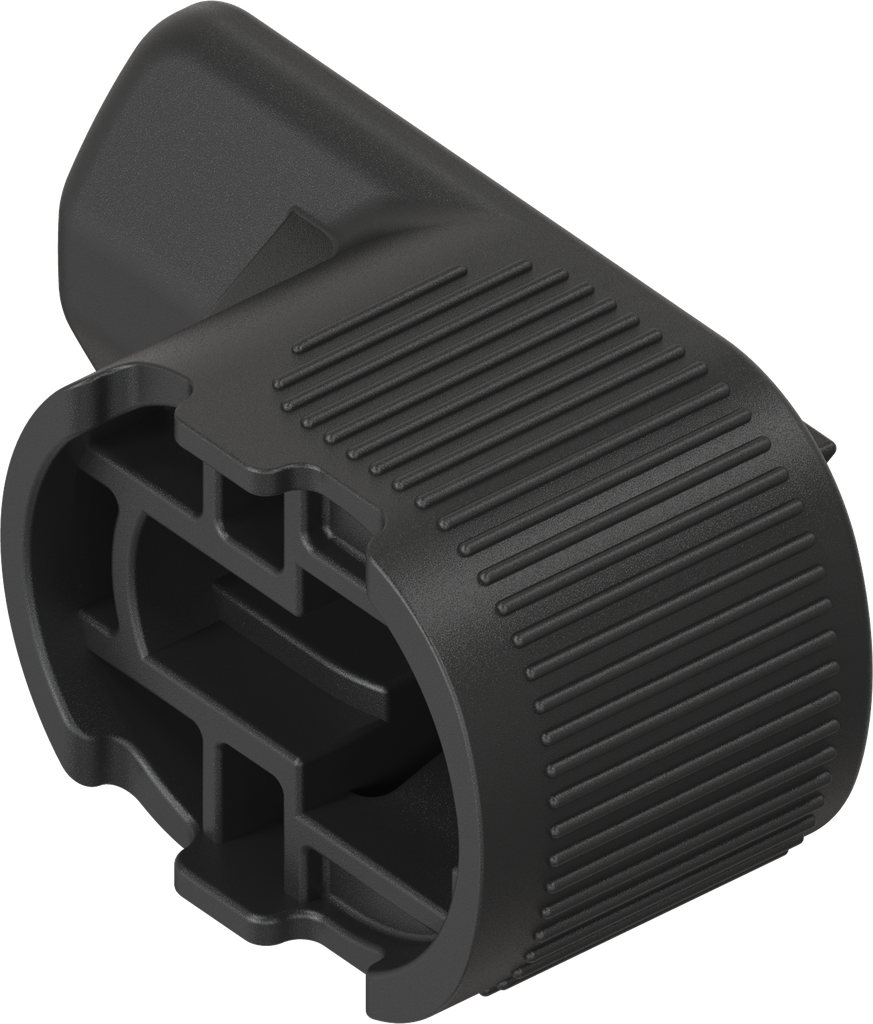

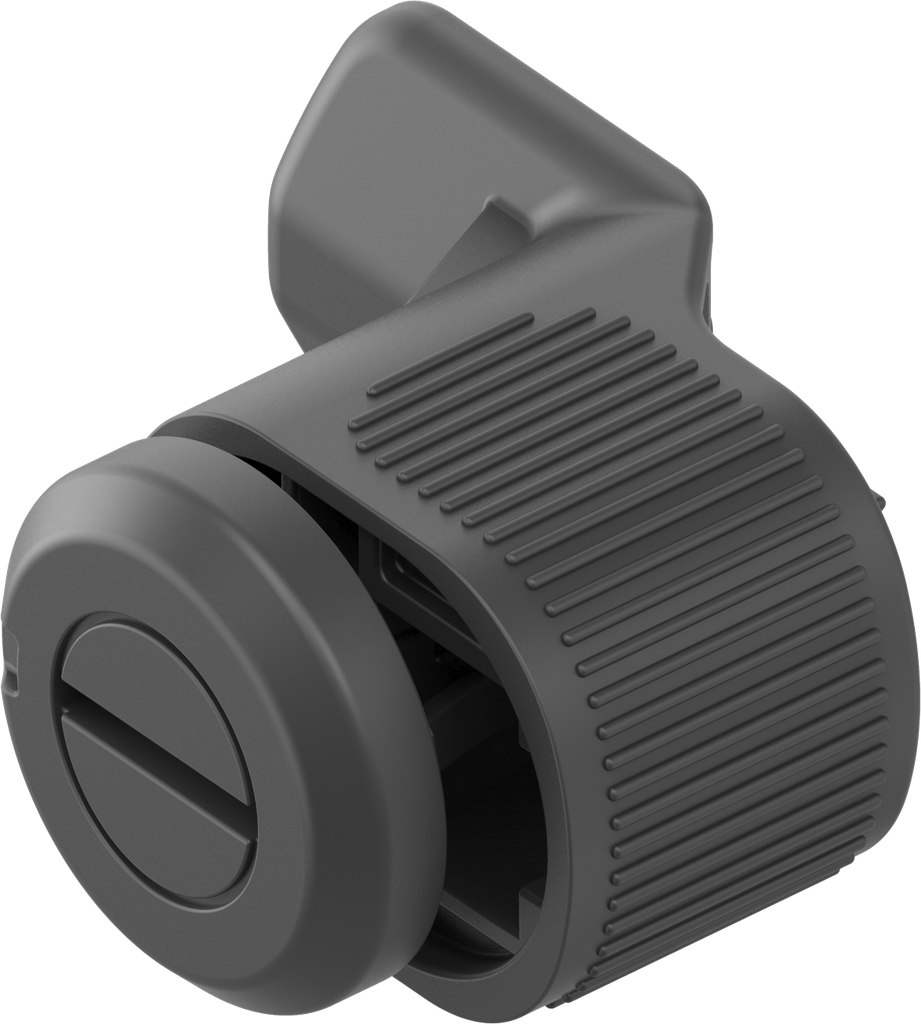

Snap-in cam H = 13.5 mm, Polyamide GF black; 1022-56-02

https://www.emka.com/products/1022-56-02 https://www.emka.com/web/image/product.template/208827/image_1920?unique=3e944dc

for Ts = 0.5 - 1.0 mm


    This combination does not exist.

    Inside the sealing Protection class IP 69K


    Product Benefits:

    • Cost savings due to assembly and disassembly without tools within seconds
    • Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
    • Smooth operation (no inner rotation due to design)
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Product information:

    Door gauge incl. surface coating

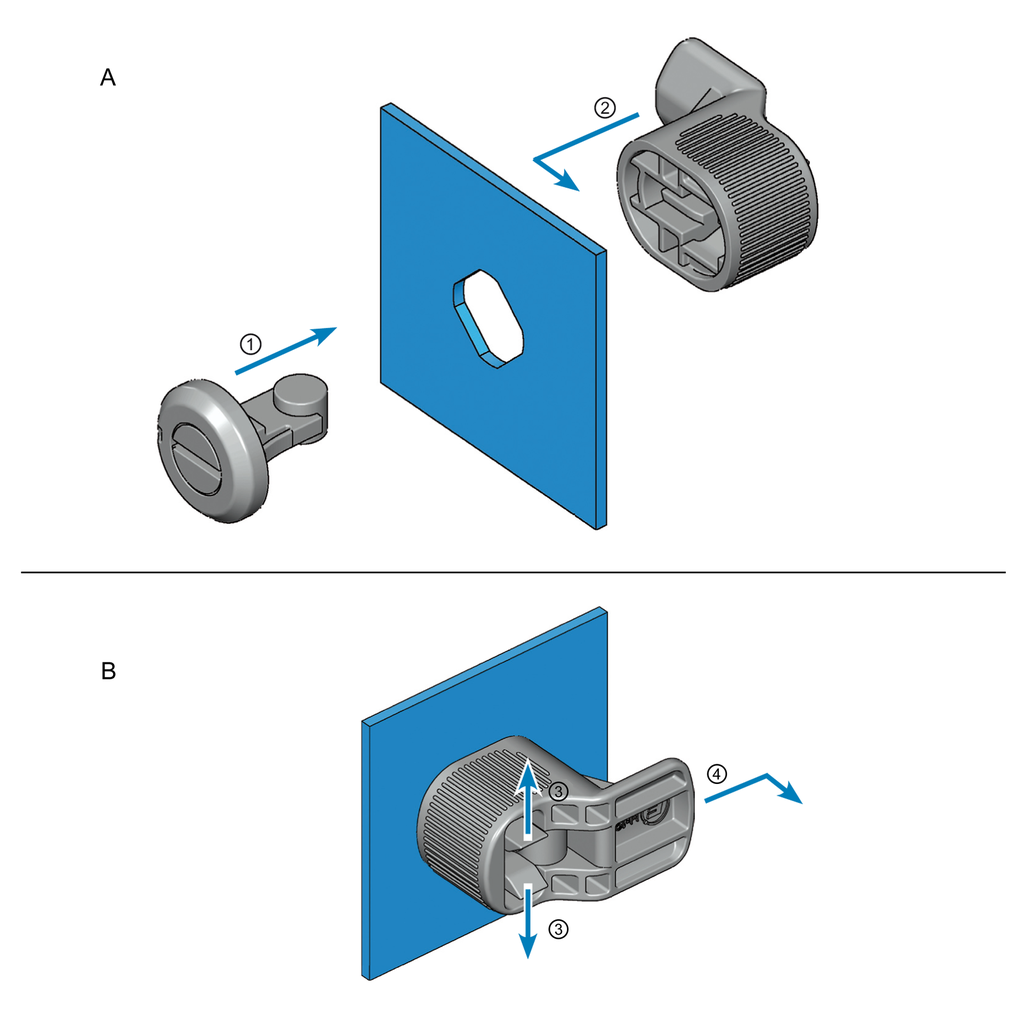

    A = Assembly
    ① = Insert the insert part into the cut out
    ② = Place the snap-in cam and shift it laterally, acoustic and visual verification of snapping in of snap-in cam

    B = Disassembly
    ③ = Press the locking arms apart
    ④ = Shift the snap-in cam laterally and remove it

    Assembly instruction:

    • Assembly door stop on the right:
      Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing.
    • Assembly door stop on the left:
      Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
    Internal Reference: 1022-56-02
    Product Type: Cam
    Material: Polyamide GF
    Program: 1022
    Surface: black
    Catalog sheet: 1A-320
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Mounting Positions : Inside the sealing

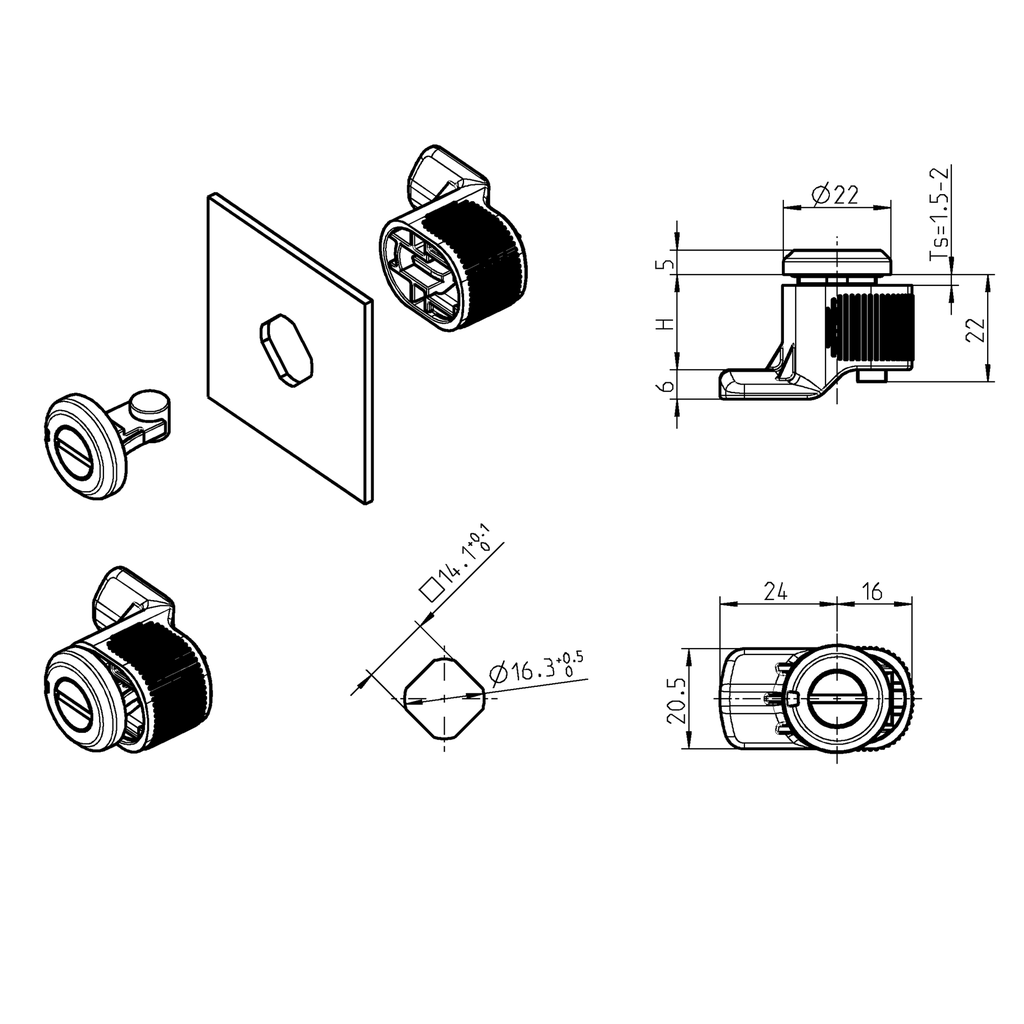

    Dimension H: 13.50 mm
    Compression Value : 4 mm
    Dimension L: 24 mm
    Spoon: Yes
    Quarter turn types: Quarter turn with simple insert,Quarter turn for assembly without tools
    No Specifications
    View All Products
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
