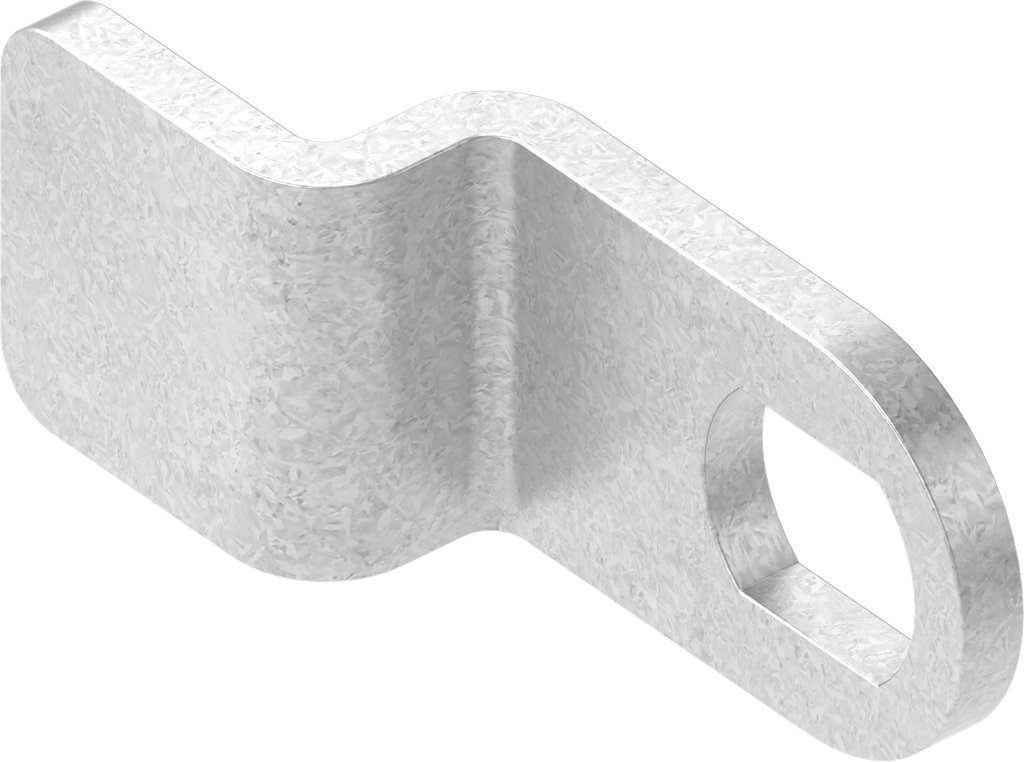

Cam, Steel zinc-plated; 1022-50

https://www.emka.com/products/1022-50 https://www.emka.com/web/image/product.template/60880/image_1920?unique=3e944dc

Offset h = 6 mm


    This combination does not exist.

    Inside the sealing


    Akeneo Note:

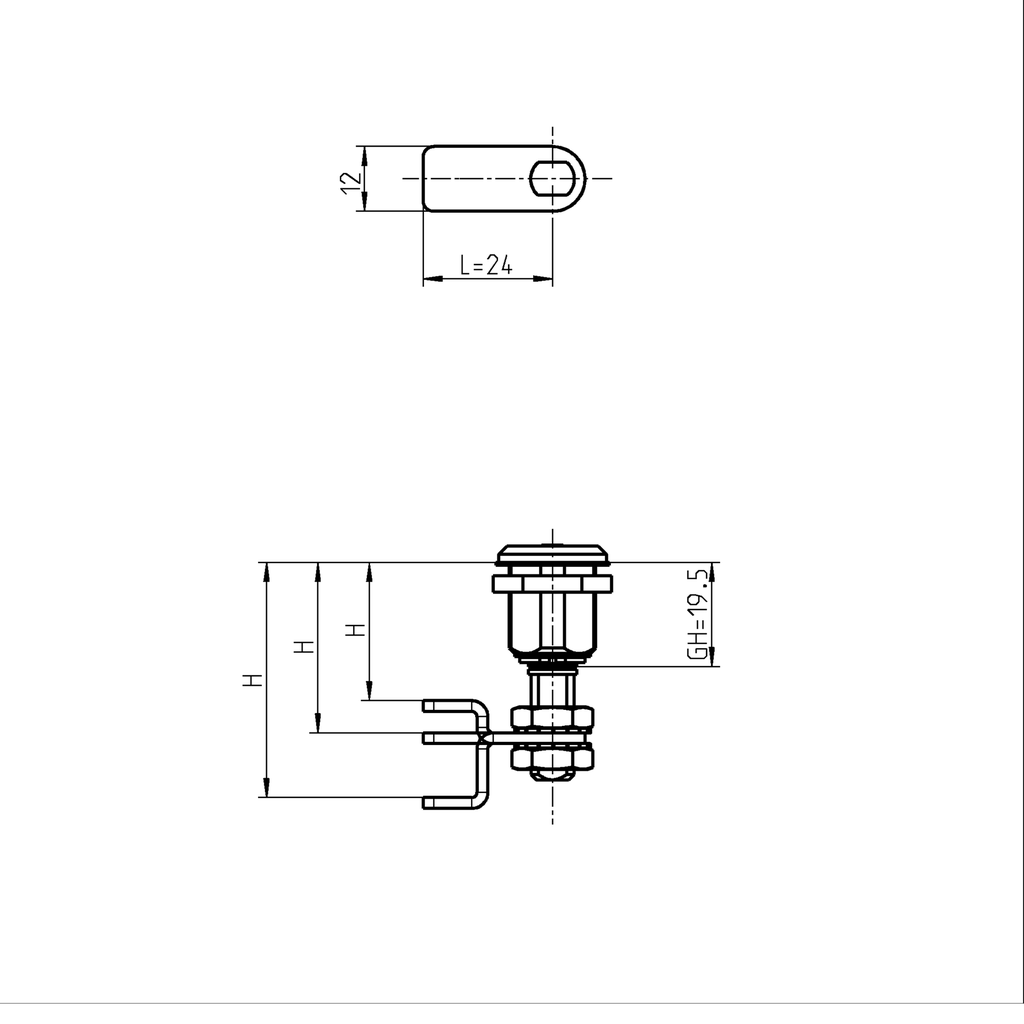

    Dimension H = 19.5 - 26.5 mm or 31.5 - 38.5 mm

    Internal Reference: 1022-50
    Product Type: Cam
    Material: Steel
    Program: 1022
    Surface: zinc-plated
    Catalog sheet: 1A-240
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Offset: positive and negative possible
    offset of cam: 6 mm
    Dimension L: 24 mm
    Dimension t: 2 mm
    No Specifications
    View All Products
    Assembly
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
