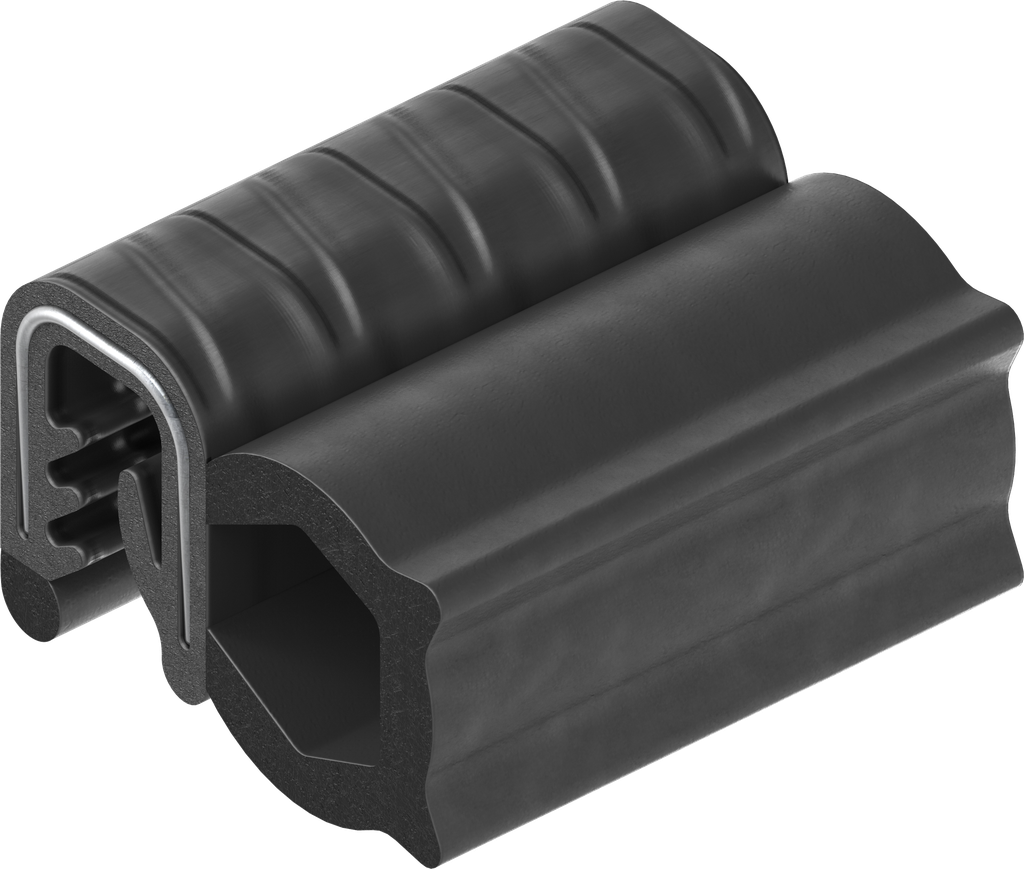

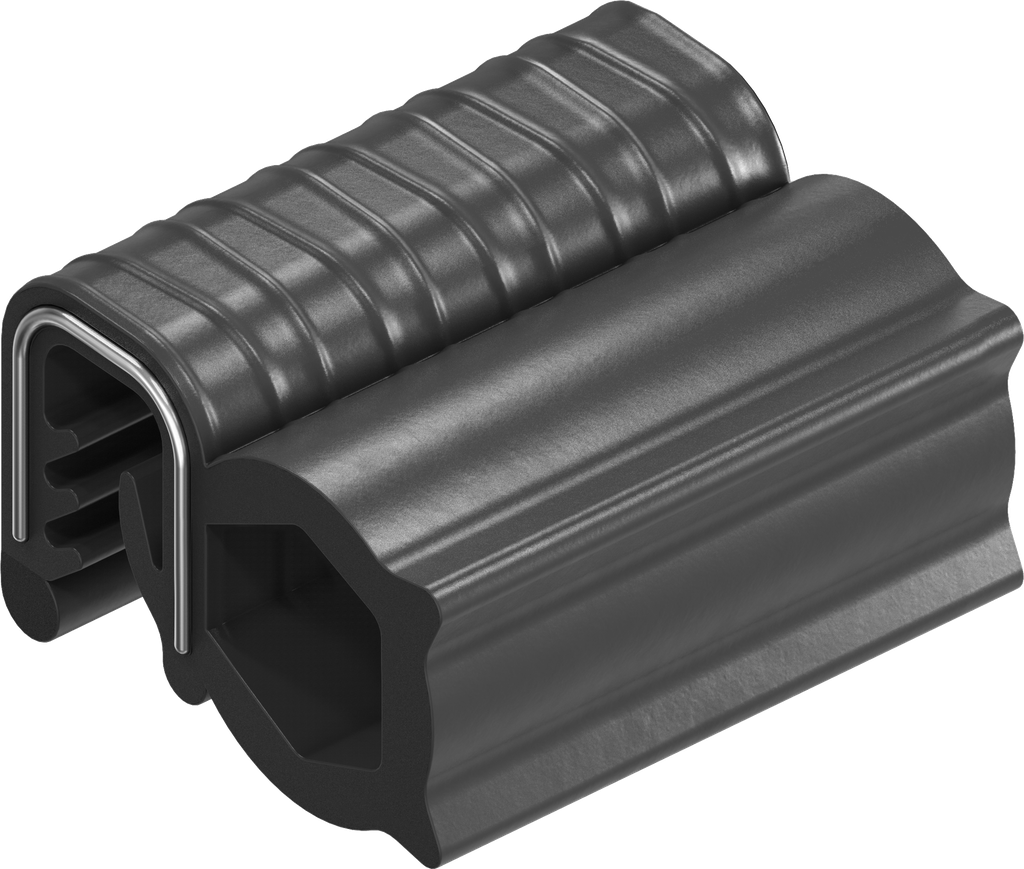

Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black; 1011-45-FR01

https://www.emka.com/products/1011-45-fr01 https://www.emka.com/web/image/product.template/60706/image_1920?unique=fa91a3e


    This combination does not exist.



    Product Benefits:

    - Flame resistant for more safety
    - Significant cost savings compared to silicone seals
    - Readily customised frames and rings according to customer specifications possible
    - Profile shapes also individually according to customer specifications
    - Reliable top quality from in-house production in Europe

    Product information:

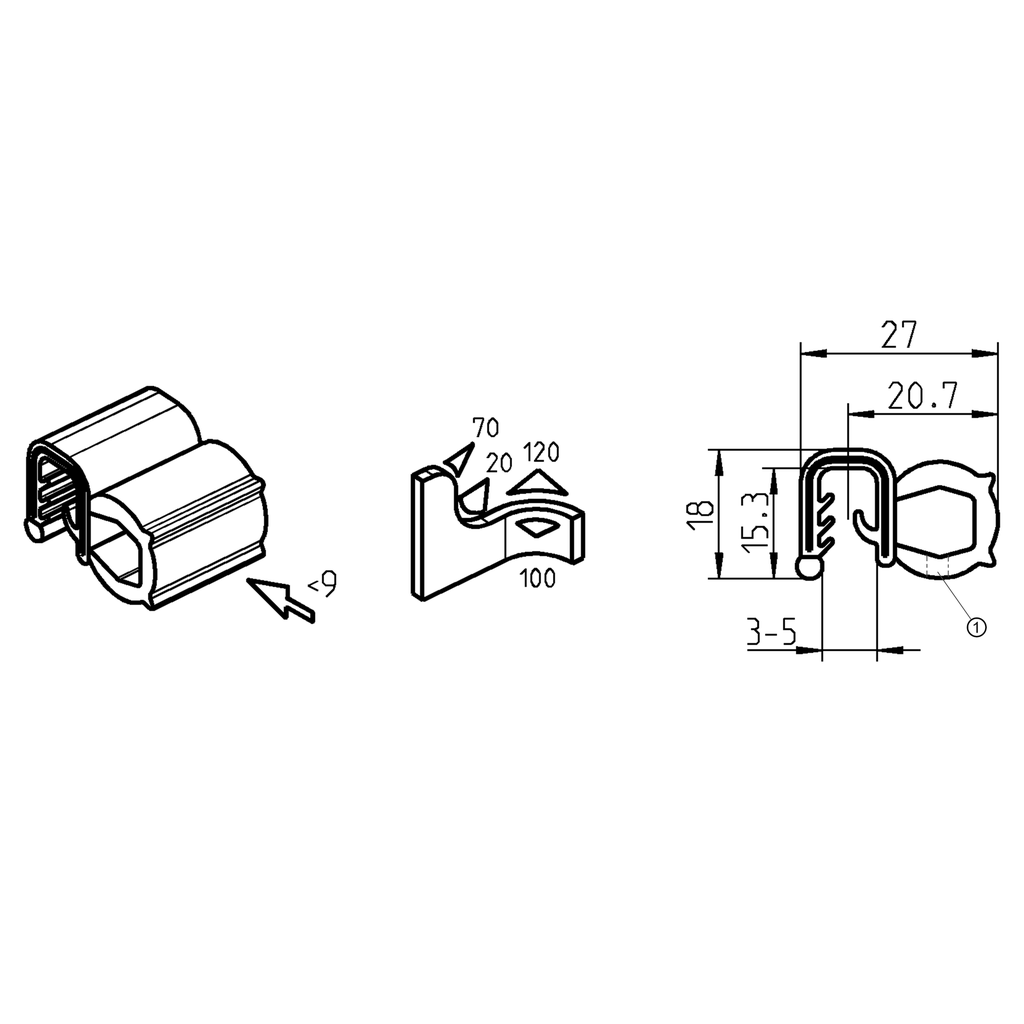

    ① = Bore holes approx. every 300 mm

    Akeneo Note:

    * = bore holes approx. every 300 mm

    Internal Reference: 1011-45-FR01
    Product Type: Seal
    Material: Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A
    Program: 1011
    Surface: black
    Catalog sheet: 5A-240
    Special industrial requirements: Fire protection standard
    Seal element: Sealing balloon, lateral
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core
    Clamping edge is or is up to: 5
    Terminal Edge Of: 3
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
