Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black

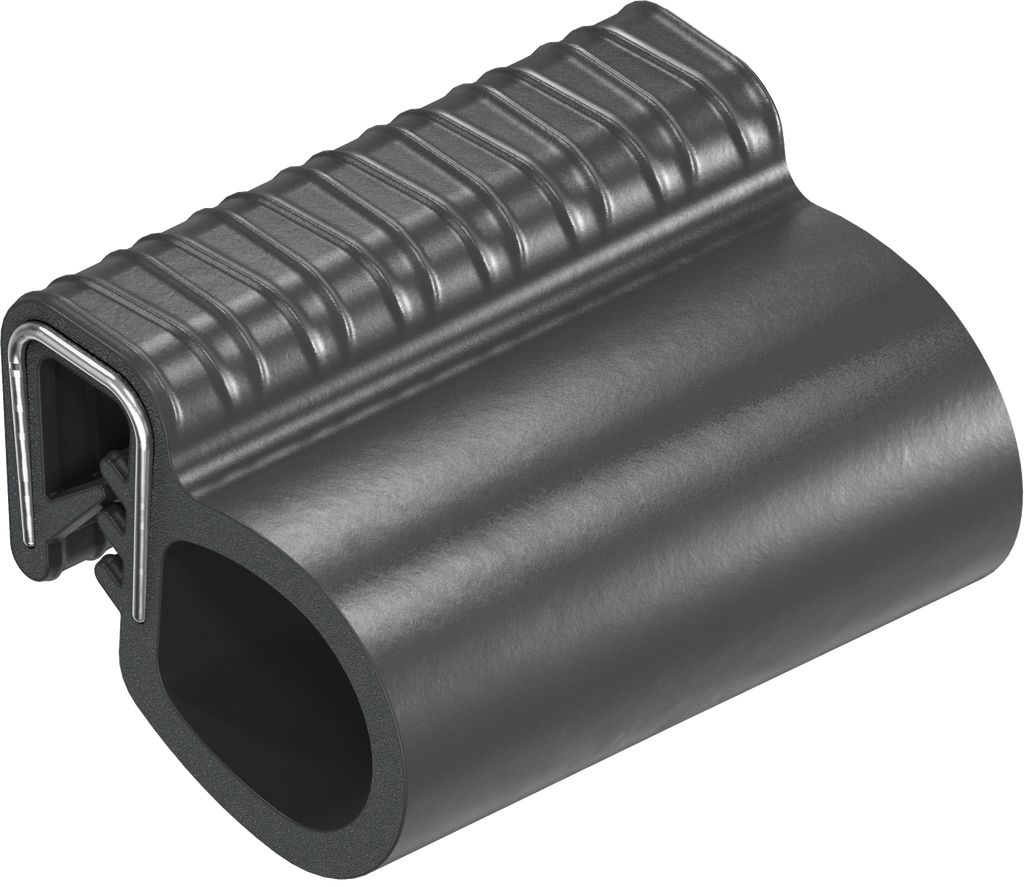

Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black; 1011-19-09

https://www.emka.com/products/1011-19-09 https://www.emka.com/web/image/product.template/207486/image_1920?unique=7234e02

According to VDI 6022

    This combination does not exist.

    Product information:

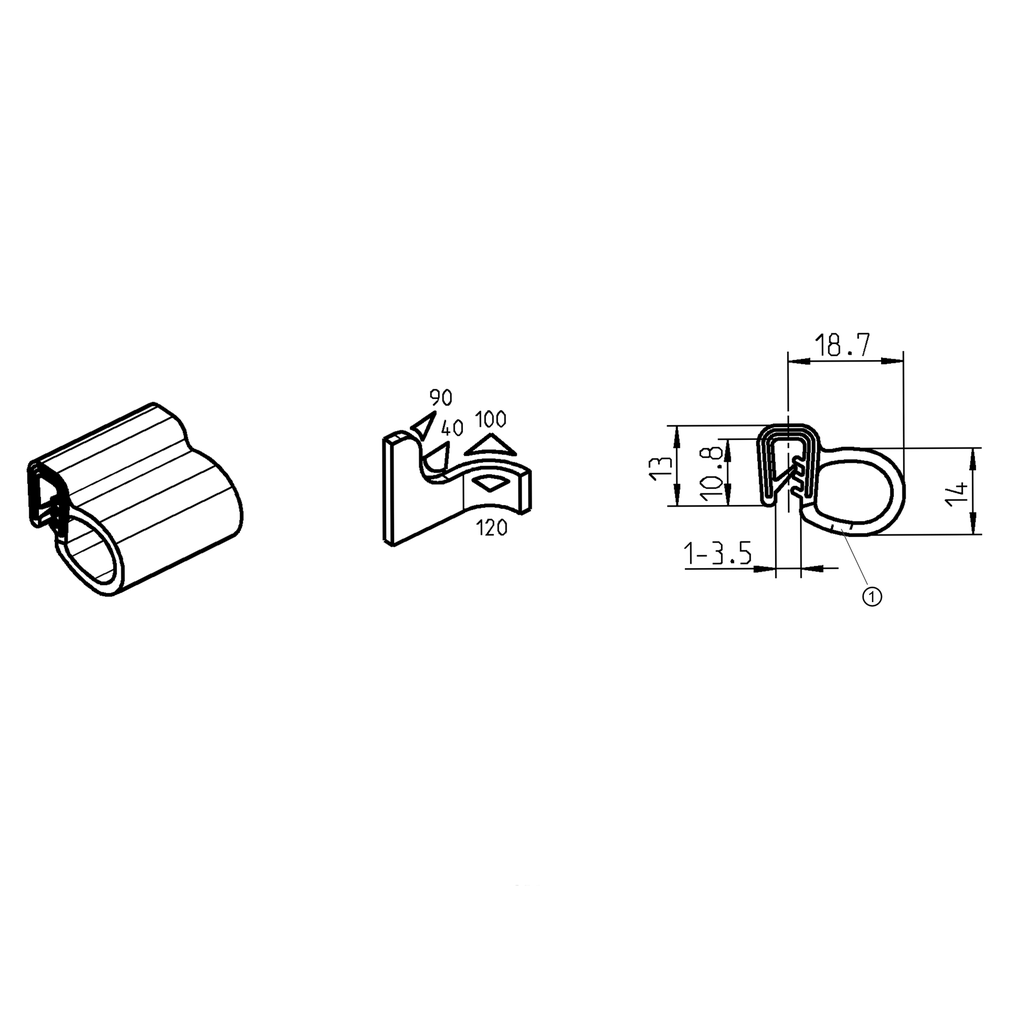

    ① = Bore holes approx. every 500 mm
    Internal Reference: 1011-19-09
    Standards: VDI 6022 (hygiene for HVACR systems)
    Barcode: 1011-000019-0000009
    Product Type: Seal
    Material: Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A
    Program: 1011
    Surface: black
    Catalog sheet: 5A-230
    Special industrial requirements: Hygiene standard
    Seal element: Sealing balloon, lateral
    Seal Type: Clip-on profile
    Clamping edge is or is up to: 3.5
    Terminal Edge Of: 1
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
