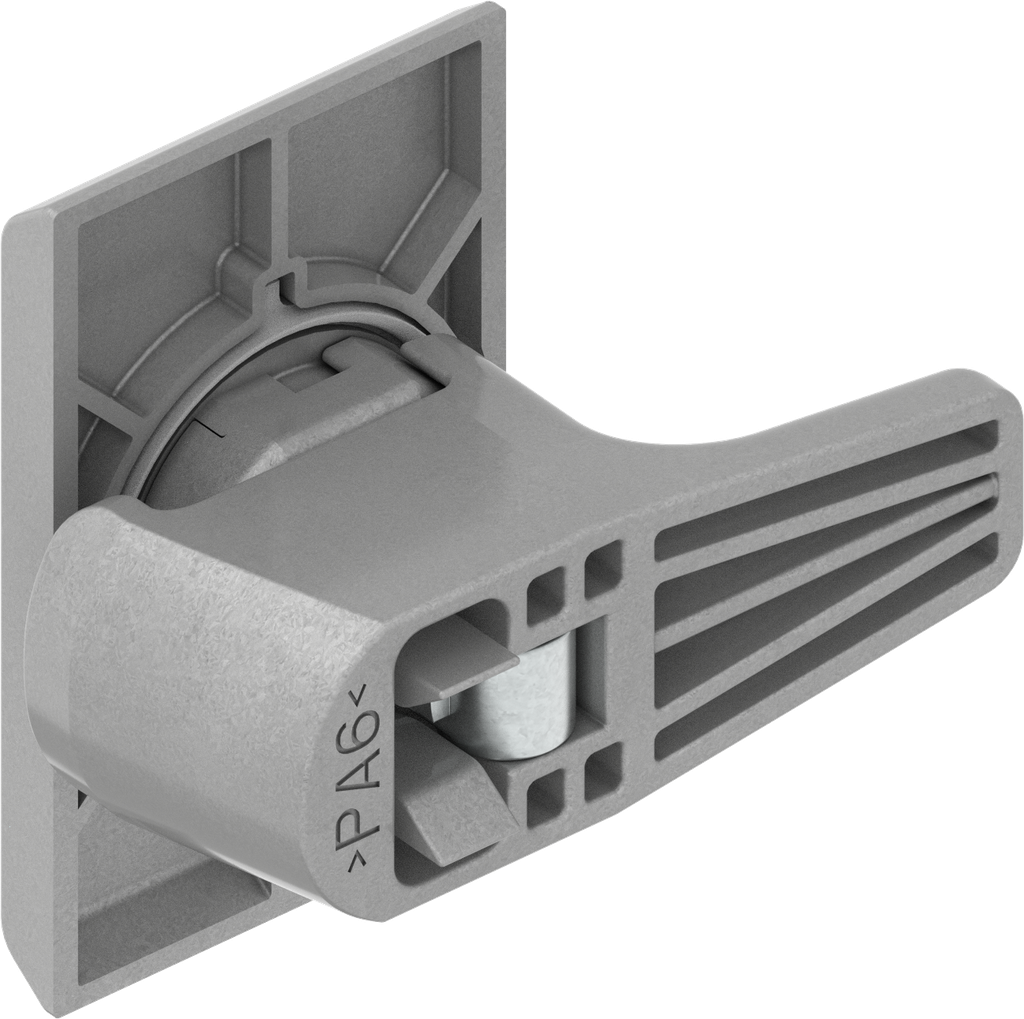

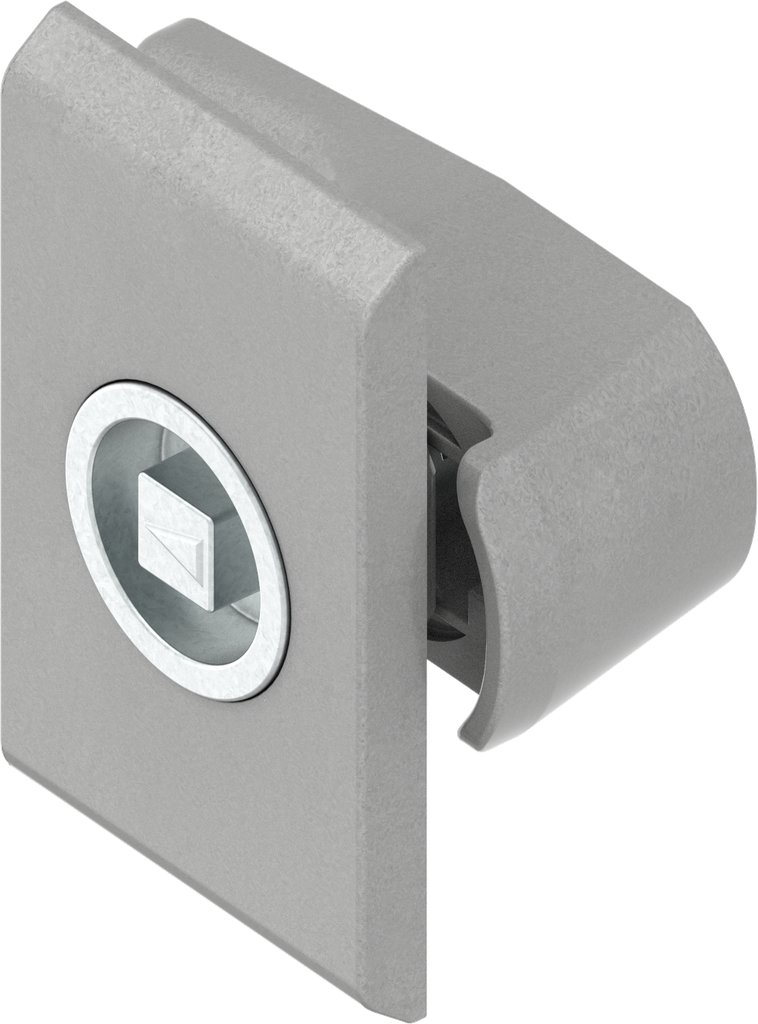

Housing for quick mounting, Polyamide GF silver grey metallic

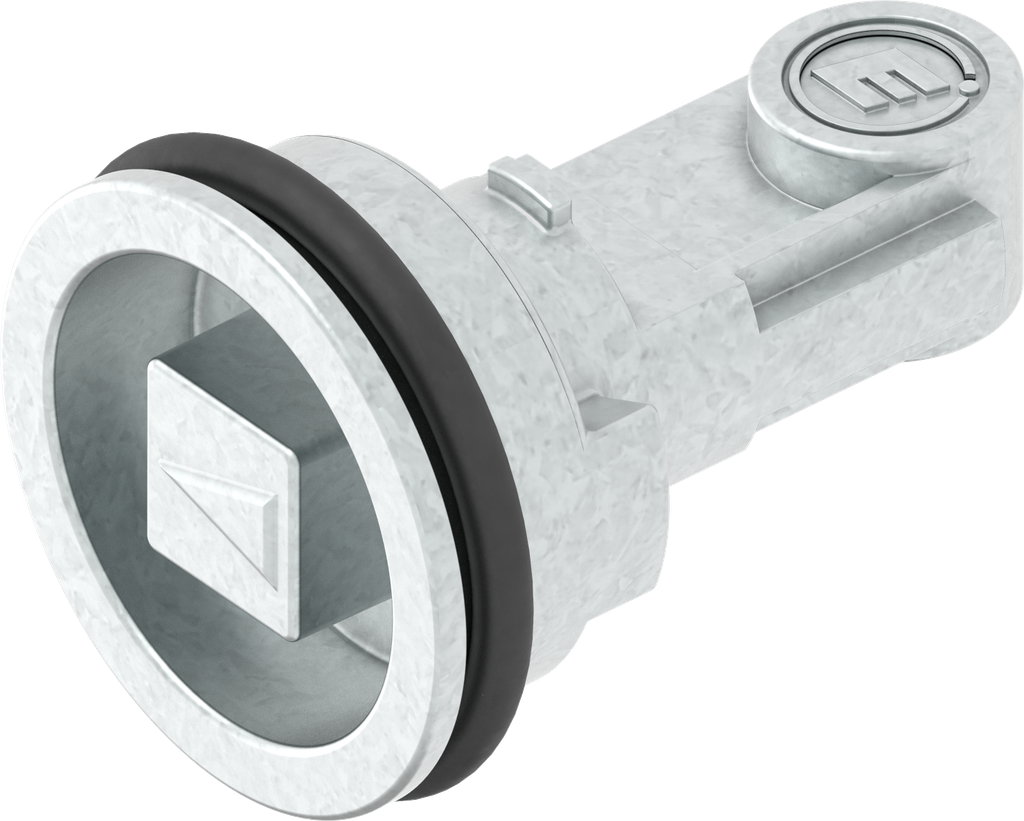

Insert square 8 for quick mounting, Zinc die zinc-plated
Product Benefits:
- Cost savings due to assembly without tools within seconds
- Smooth operation (no inner rotation due to design)
- Snap-in cam with safety cap
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented
Product information:

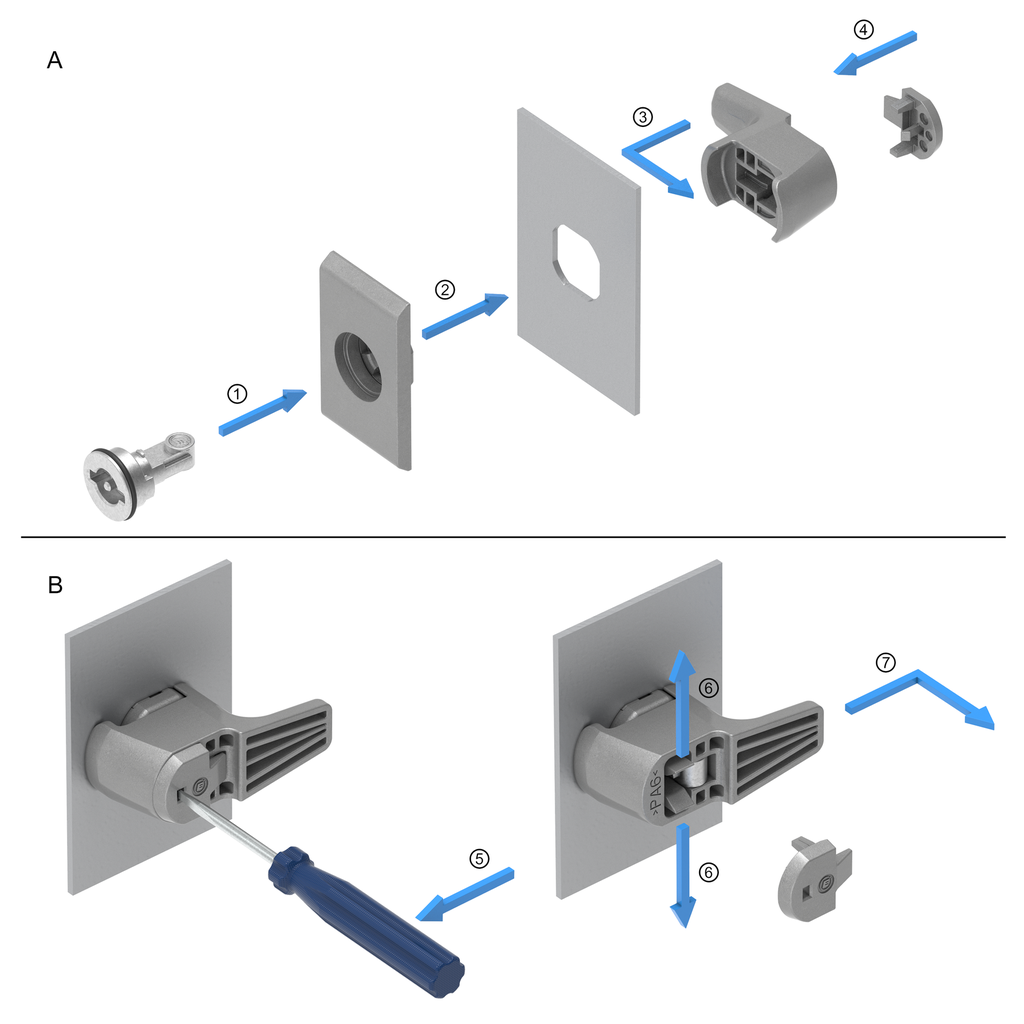

A = Assembly: example right-hand version
B = Disassembly
Internal Reference:
1000-U973
Product Type:
Insert
Program:
1000
Catalog sheet:
1B-170
Material of the module :
Zinc die
Surface of the module:
zinc-plated
Number of Possible Locking Points:
1 point
Insert for:
Insert for housing with quick mounting
Type of actuation:
Square 7 with arrow
Locking set:
Insert
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
