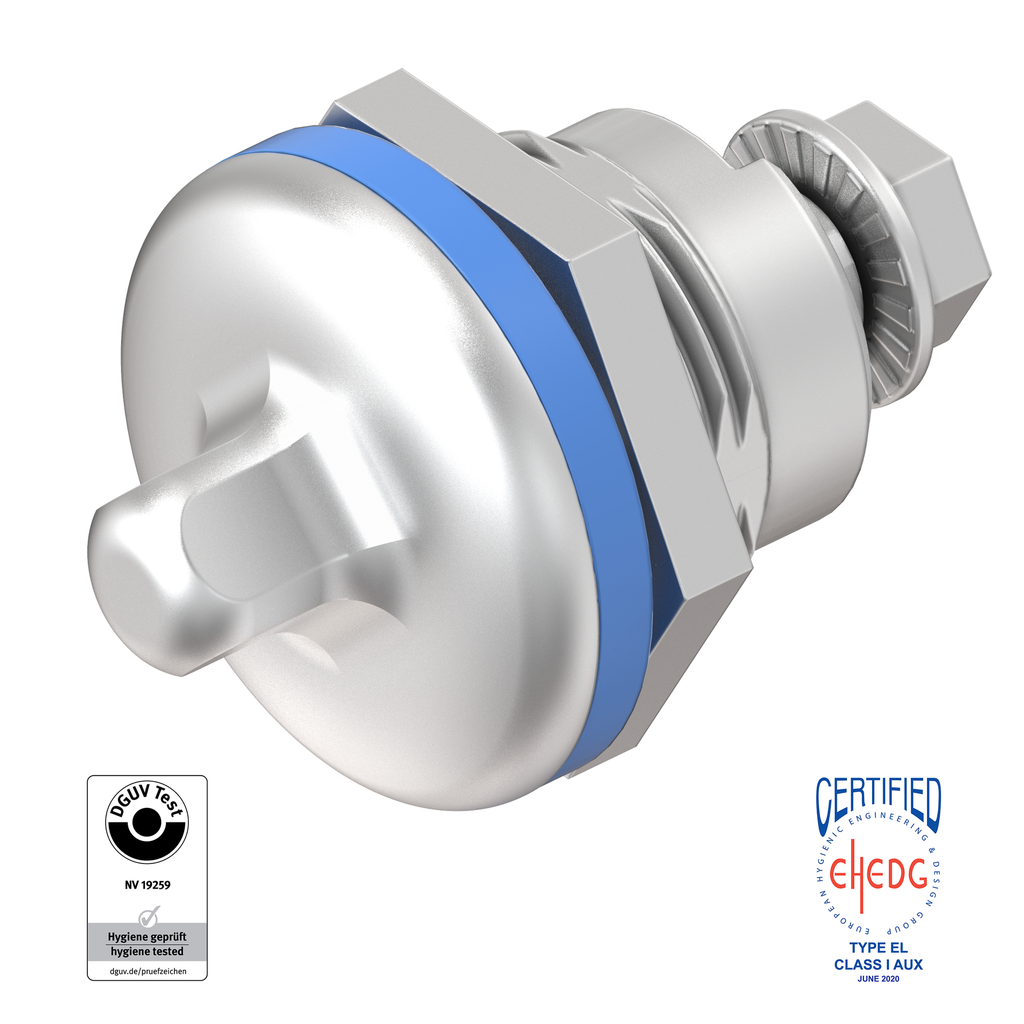

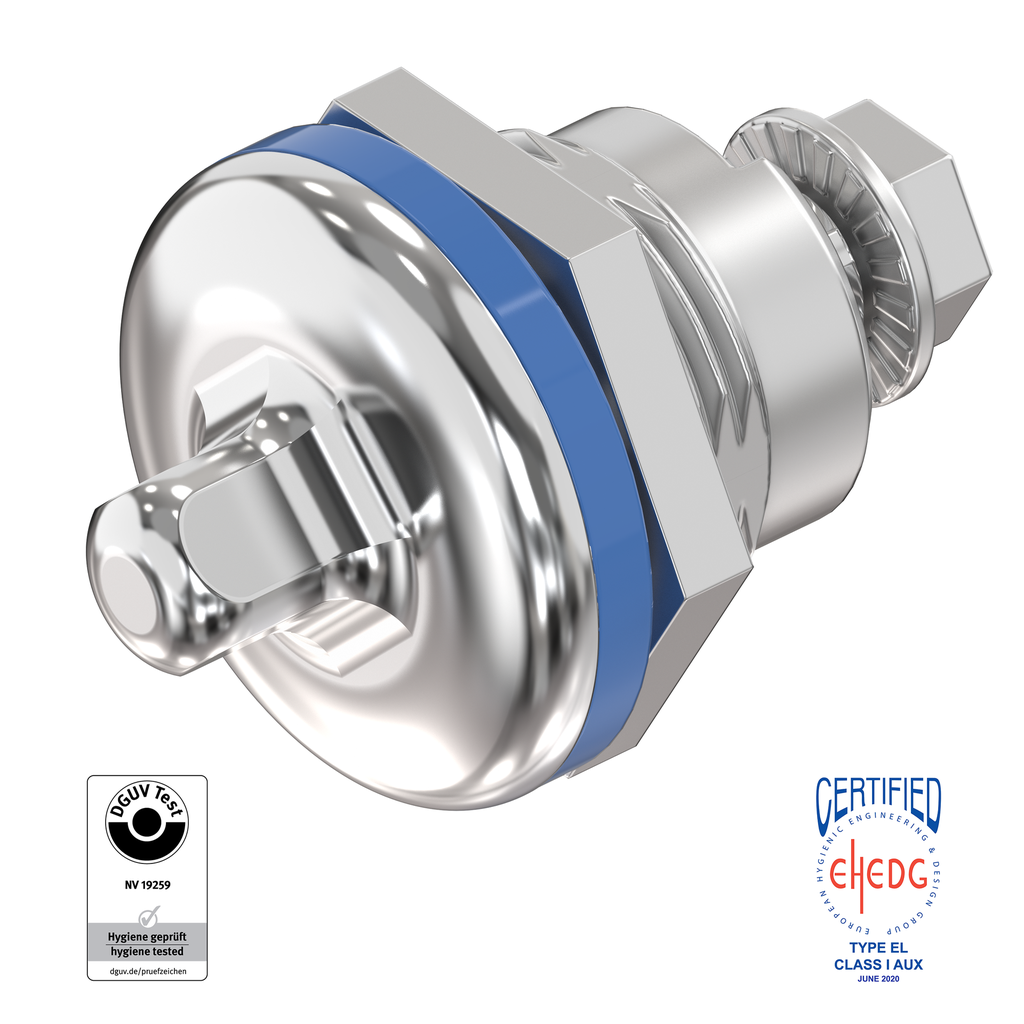

Quarter turn square 8 for hygienic areas food and medical sector, Stainless steel AISI 316L; 1000-U960-01

https://www.emka.com/products/1000-u960-01 https://www.emka.com/web/image/product.template/60413/image_1920?unique=847edde

with stainless steel nut


    This combination does not exist.

    Inside the sealing DIN EN 1672-2 (hygiene) DIN EN 14159 (hygiene) Protection class IP 69K Left Right


    Product Benefits:

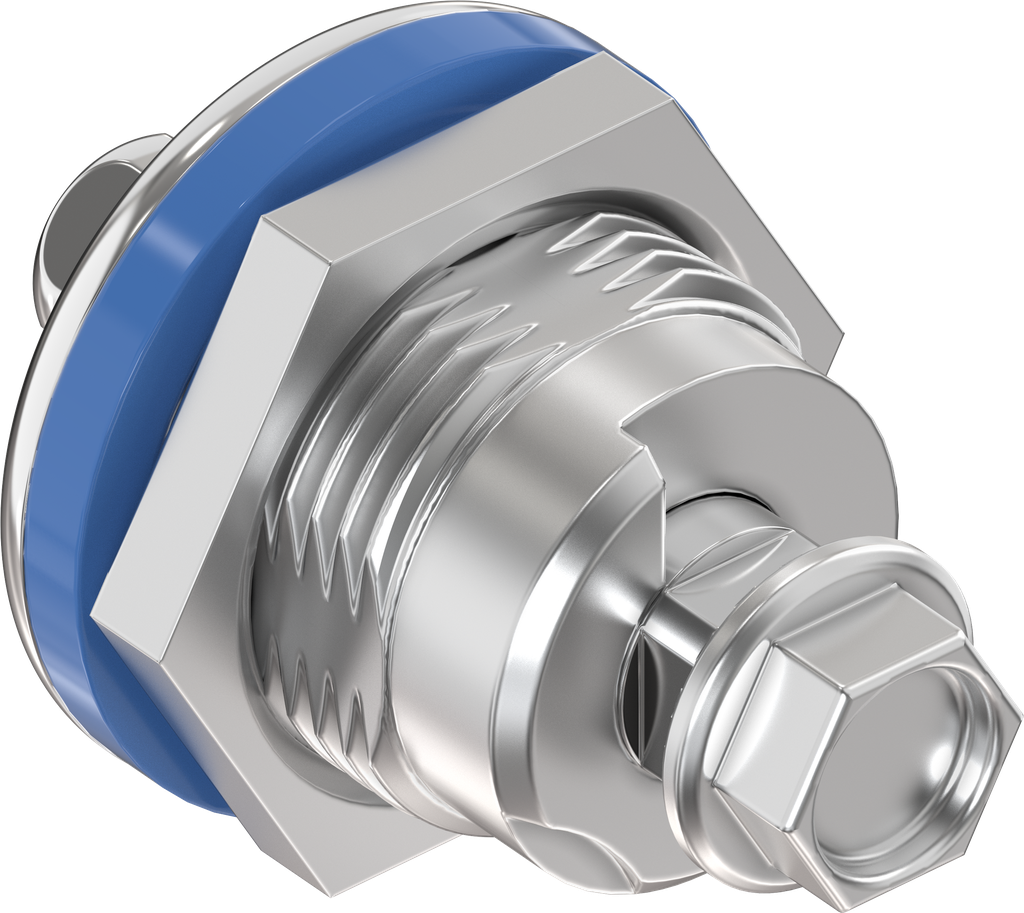

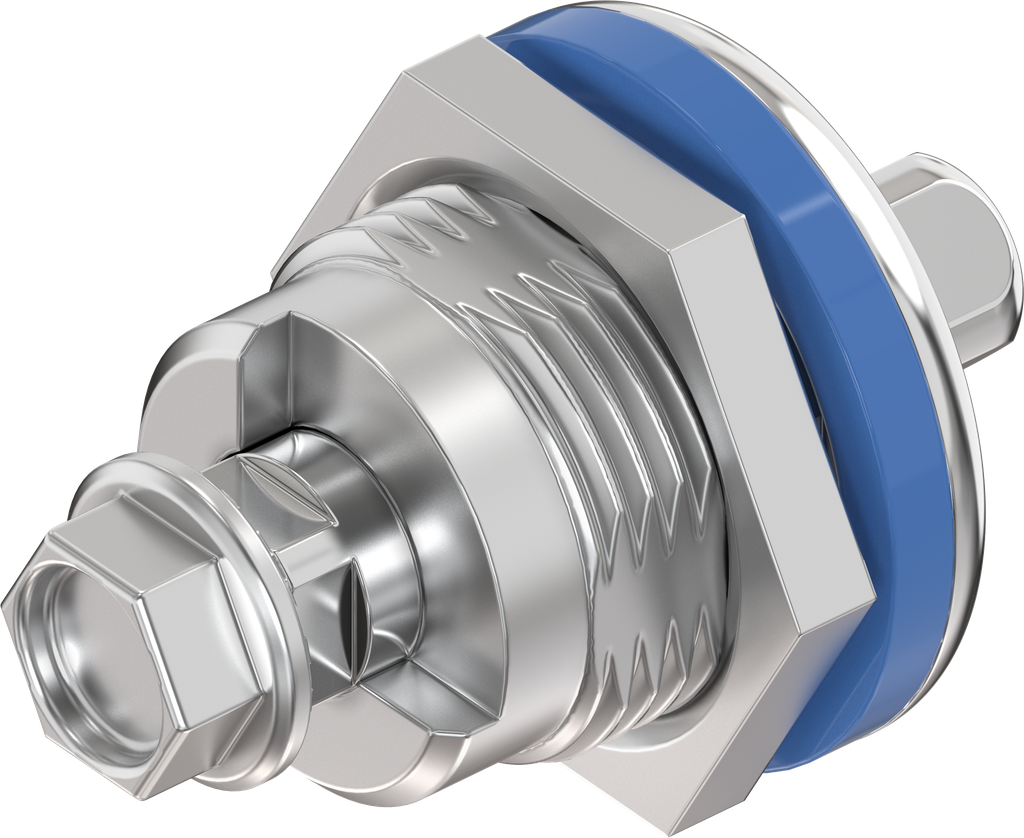

    Stainless steel quarter turn for hygienic areas with flat seal flush on the outside

    Product information:

    The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2, DIN EN 14159 and EHEDG Doc. 8.
    The gaskets meet the requirements of the FDA 21 CFR 177.2600 and VO 1935/2004.

    Internal Reference: 1000-U960-01
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-835
    Material of the module : Stainless steel AISI 316L
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Hygiene square 8
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

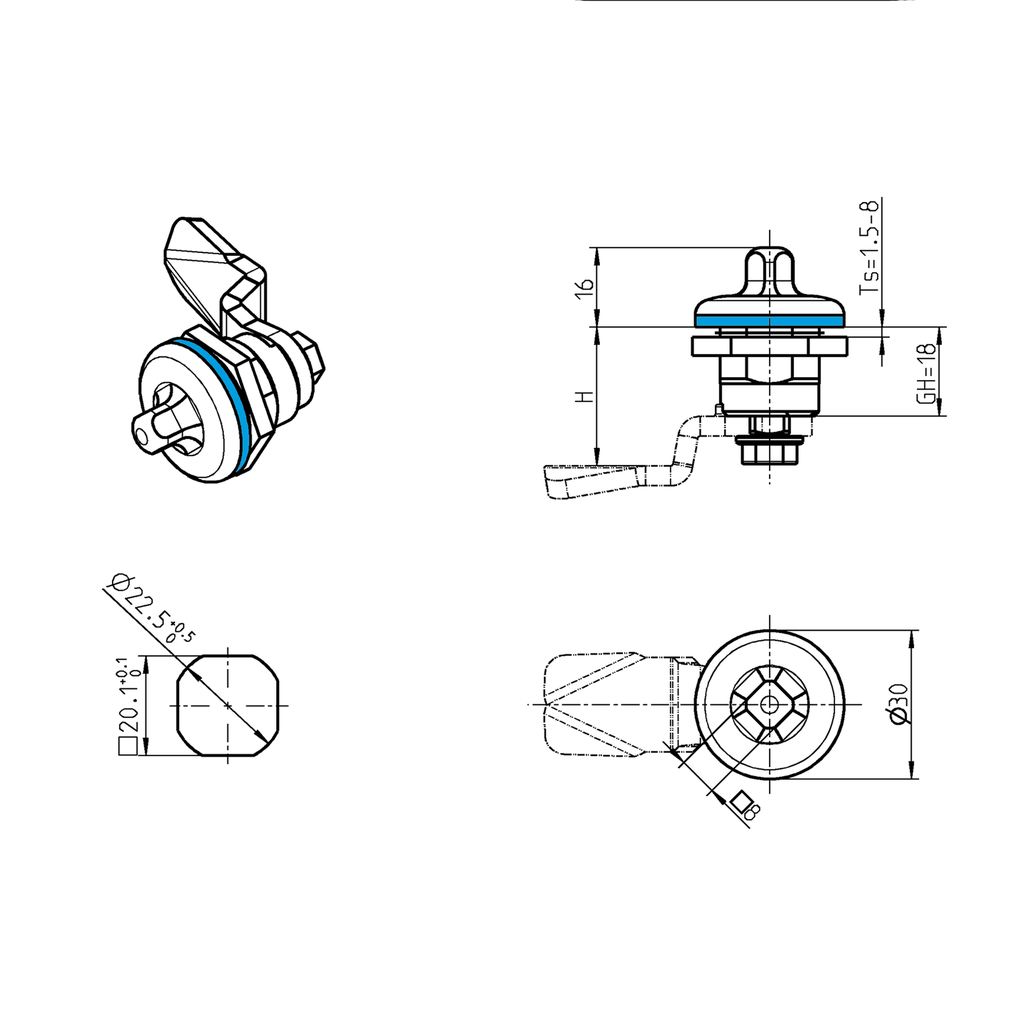

    GH Mass: 18 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right

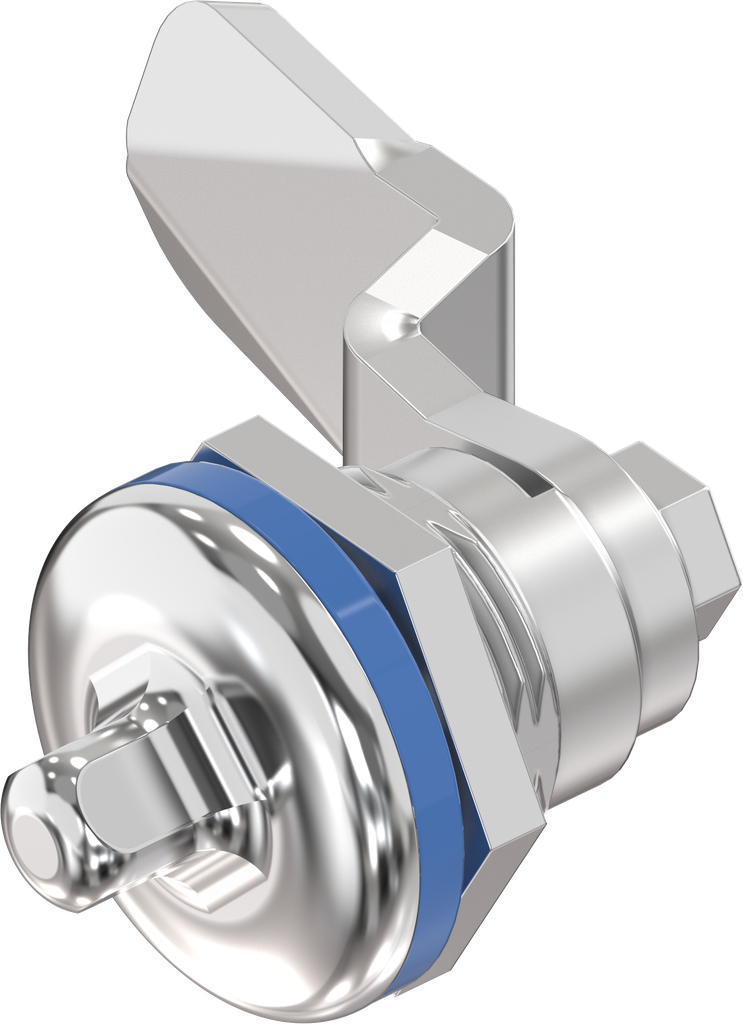

    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
